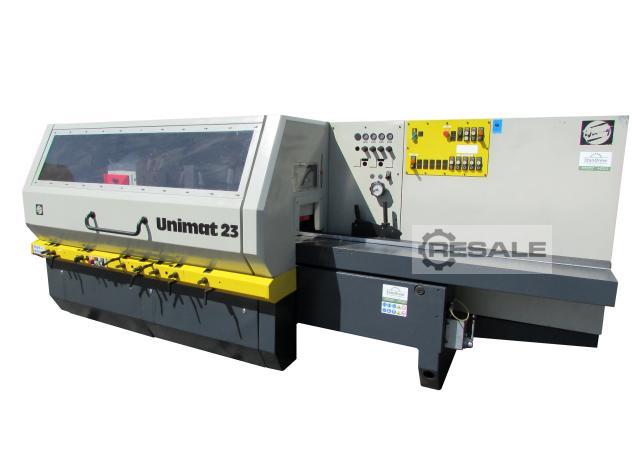

Four-sided planing machines WEINIG Unimat 23

– German production
– corrugated top
– year of production 1996
– rollers in the countertop pulling

TECHNICAL PARAMETERS:
planing width 230 mm
planing height 160 mm
corrugated top
spindle diameter 40 mm
1 bottom spindle 7.5 kW
2 right spindle 7.5 kW
3 left spindle 7.5 kW
4 upper spindle 11 kW
5 bottom spindle 7.5 kW
smoothly adjustable feed 6-36 m/min
feed motor power 5.5 kW
six upper steel pulling rollers
two top rubber pulling rollers
three rollers in the countertop pulling
pneumatic feed pressure
pneumatic shoe pressure
spindles with brakes
length of the pre-worktop 1970 mm
electric height adjustment
central lubrication (split)
connection diameter 140 mm
dimensions of the machine (L/W/H) 410 / 200 / 180 cm
weight ~ 3000 kg
seller offer No. resale 160197452
