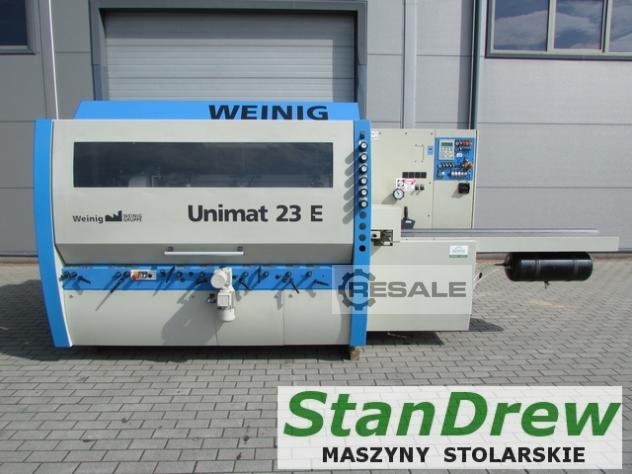

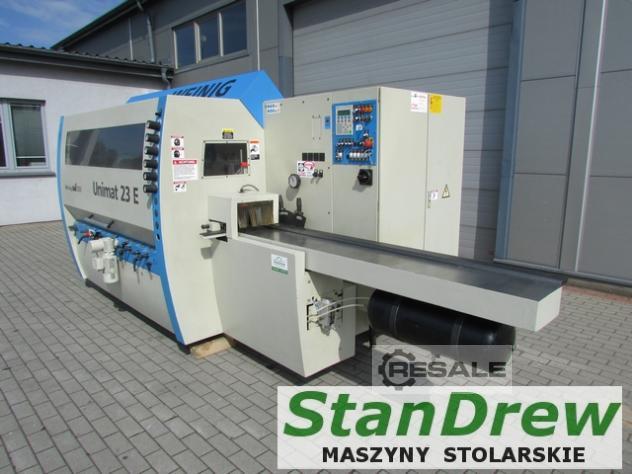

Four-sided planing machines WEINIG Unimat 23

Four-side planer Weinig Unimat 23E cutting out the glazing bead

- German production
- year of production 2002
- total power 32 kW
- pneumatic stroke of the spindles for cutting the glazing bead
- 3866 mth

TECHNICAL PARAMETERS:
- planing width 230 mm
- planing height 140 mm
- spindle diameter 40 mm

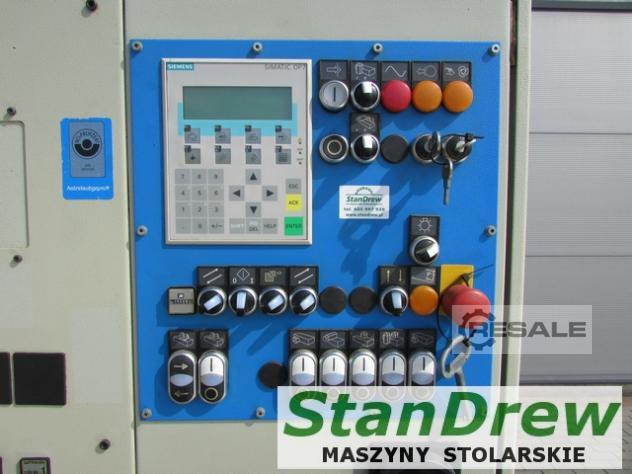

- electronic height and width adjustment
- the possibility of programming fixed dimensions

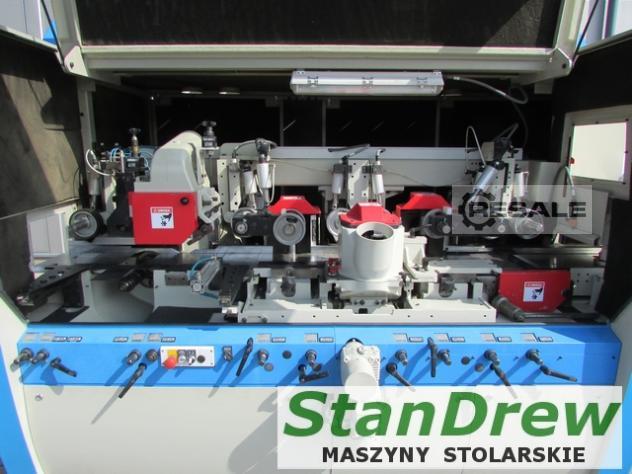

1 lower spindle 4 kW
2 left spindle
3 right spindle 7.5 kW
4 right spindle 5.5 kW
5 top spindle 5.5 kW
6 lower spindle 4 kW
- power of the feed motor 3 kW
- feed speed 5-24 m/min

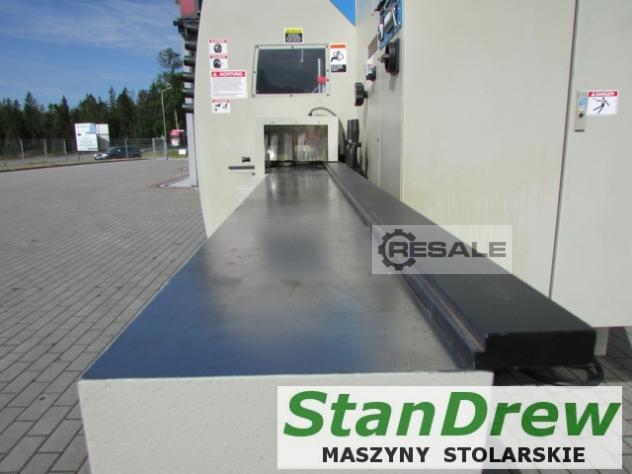

- length of the pre-table 2480 mm
- electric brakes

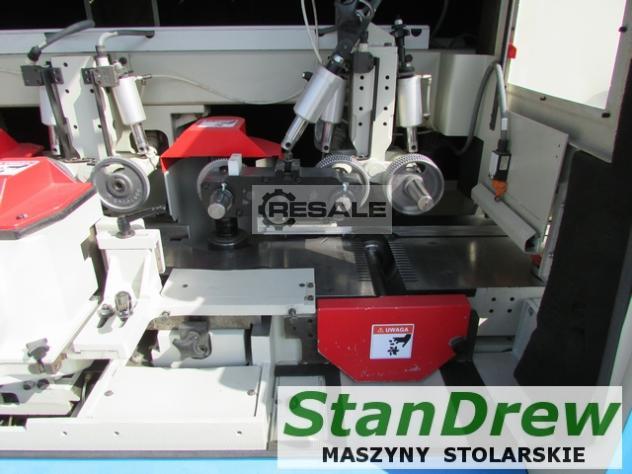

- seven upper steel pulling rollers
- one upper rubber pulling roller
- one roller in the top pulling
- air cushion in the countertop
- pneumatic pressure
- feed on cardan shafts
- diameter of connections 140 mm

TRANSPORT SIZE
470x220x240 cm
weight 3 t
seller offer No. resale 161861569
