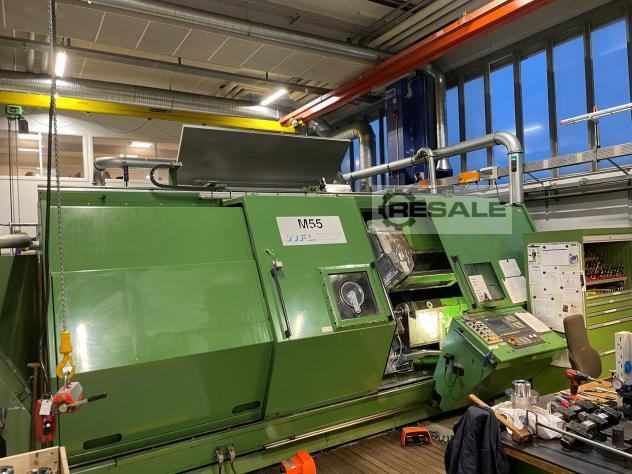

CNC Turning Machines WFL M 55 x 2000

Stock Number: 3781
CNC LATHE
Manufacturer: WFL , Type: M 55 x 2000
Machine NO.: 085144/01, Year of manufacture: 1998

Specifications:

Max. swing diameter 460 mm dia.
Max. rotary. About Bed 640 mm Dia.
Turning length 2000 mm
Turning over canvas slide 550 mm dia.
Main spindle din 55026 form A
Main engine power 37 kw
Main spindle speed range 18.5 - 3150 rpm
C axis - main spindle movement 0.001 degree
Y axis 300 (-130/+70 mm

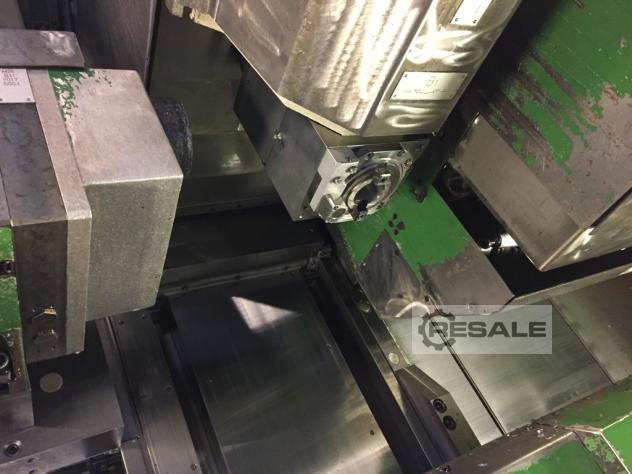

B Axis Motion 180 degree - 0.001 degree
B axis spindle speed 1-3000 per/min
B axis tool system ISO 40 - 24 Tools

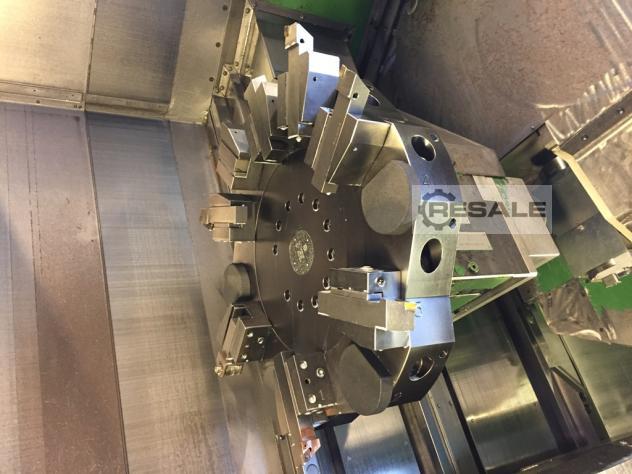

Tool turret 1 with 12 VDI 50 stations
Accessories:
Hydr. Chuck main spindle Forkardt FNC 250-65 mm dia

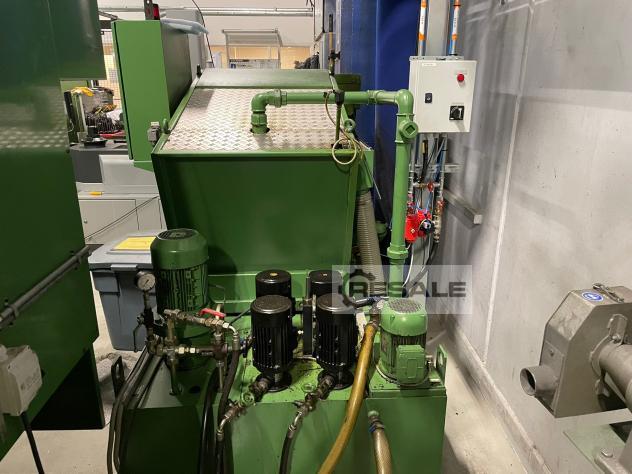

Chip conveying. Cable tow
Hydraulic tailstock.

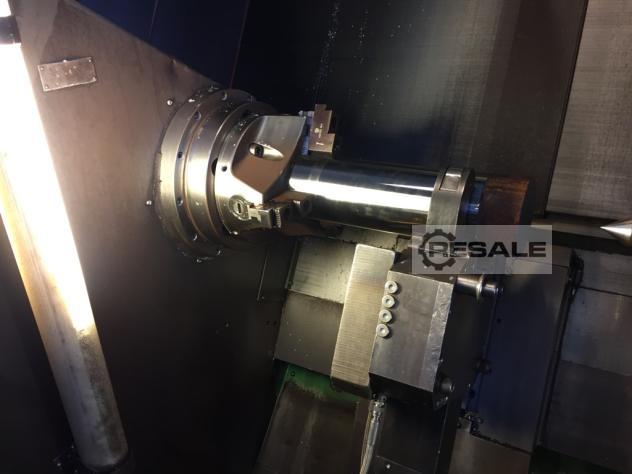

Hydr. Bezel Forkardt LZ 12-155

Length: 5700 mm Transport , Height: 3000 mm, Width: 2500 mm Transport , Weight: 15.000 kg
