Angular swivel unit, Accuracy 0.01°, ZIMMER SF100-90D4-C,

machines for mechanical handling, storage equipment / pneumatics

Manufacturer: ZIMMER

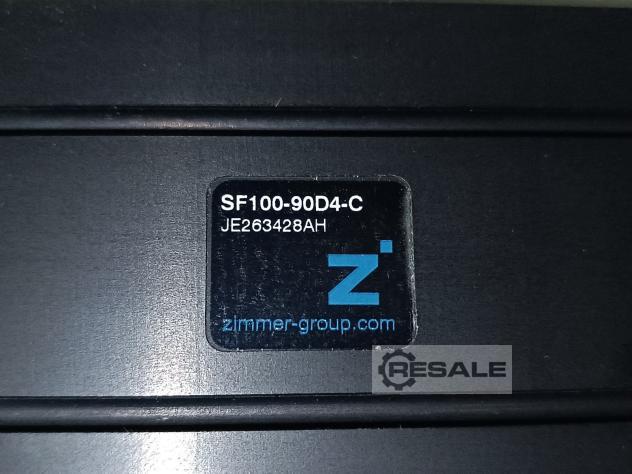

Model:SF100-90D4-C,

Type of machine: Angular swivel unit, Accuracy 0.01°,

item-No.: 160319915

Quantity: 0

Date: 30.05.2023

Year of manufacture: new machine

Location: Land-at Austria

Price: 999 EUR

Your price suggestion:

Machine in stock:Yes

Seller-item-No.:2123

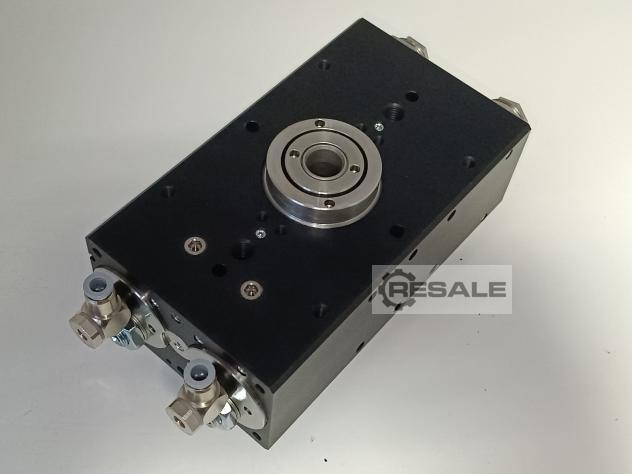

Angular swivel unit, Accuracy 0.01°, SF100-90D4-C, Zimmer, new

Special price
We still have several identical and other such devices, but the amount is ending. Buy more than 1 piece, there is still a great discount.
If you have a VAT number, we will gladly issue you an invoice without VAT.

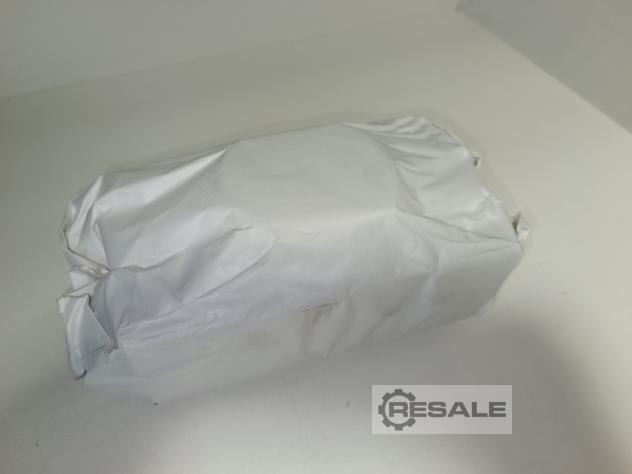

Mint condition in original packaging!
The part was purchased from a spare parts warehouse of a company and has never been in operation, is in a completely mint condition and in its original packaging.

Swivel angle 90 [°]
Torque 15 [Nm]
Energy transmission pneumatic 4 [number]
Swivel angle adjustable +/- 3 [°]
Through bore Ø 15 [mm]
Bearing load axial 2500 [N]
Bearing load radial 155 [Nm]
Repeatability +/- 0.01 [°]
Operating pressure min. 3 [bar]
Operating pressure max. 8 [bar]
Nominal operating pressure 6 [bar]
Operating temperature min. 5 [°C]
Operating temperature max. +80 [°C]
Cylinder volume per cycle 103 [cm³]
Weight 4.5 [kg]


10 million maintenance free cycles,
Positioning 2 positions,
end position damping,
magnetic field sensor and much more


Functional guarantee!
We cannot provide a conventional guarantee and warranty for second-hand parts.
However, we give you a functional guarantee. If the unit does not function when it is put into operation, you can return the goods and we will refund the purchase price.
