Process vessels ZUGIL 10000 L

process engineering / machines and plants for process engineering / Process vessels

Manufacturer: ZUGIL

Model:10000 L

Type of machine: Process vessels

item-No.: 161944918

Quantity: 0

Date: 17.10.2023

Year of manufacture: 2003

Location: Land-pl Poland 05850 Ozarow Mazowiecki

Price:


Your price suggestion:

Seller-item-No.:U2421-3

Stock # U2421-3

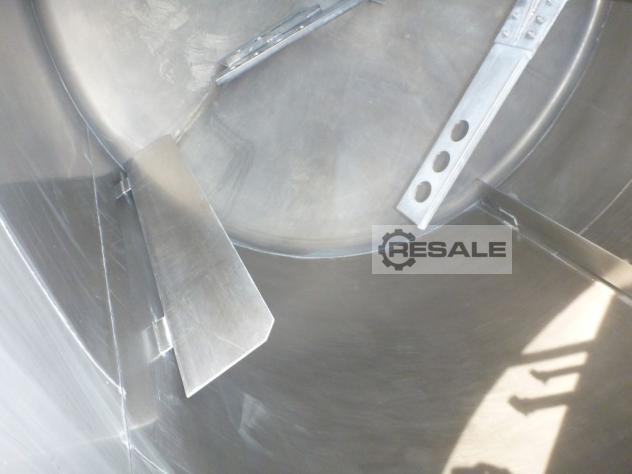

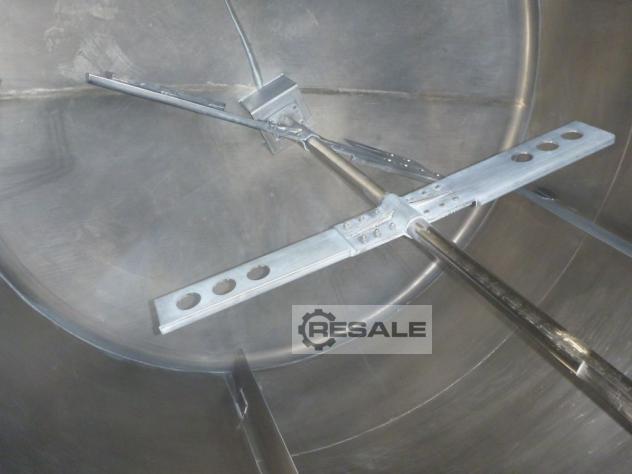

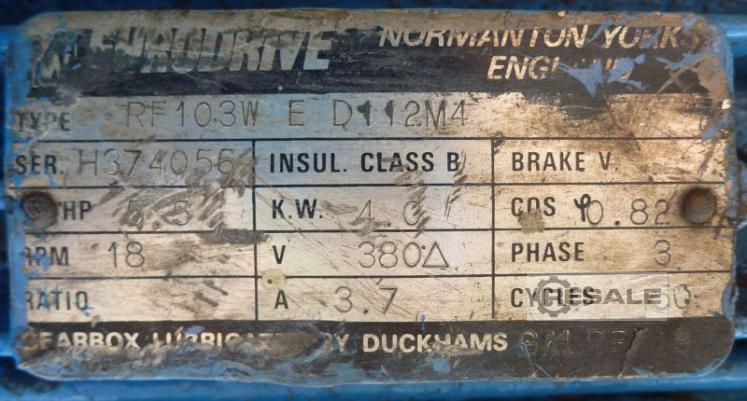

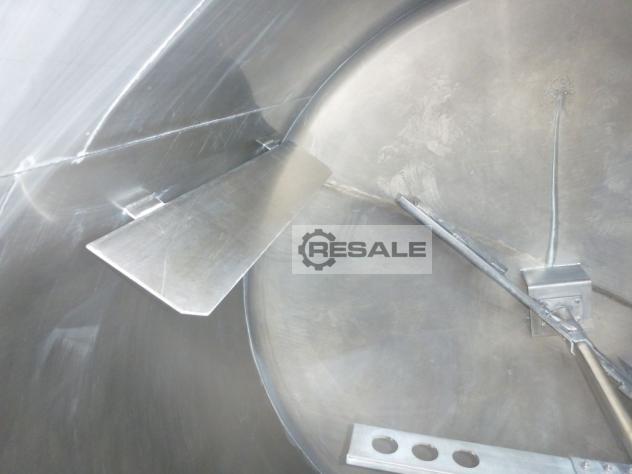

Used vertical stainless steel (AISI 304) mixing tank by ZUGIL (PL) with a working volume 10000 l. Inside dimensions: diameter 2600 mm x length of straight side of wall 2100 mm. Tank has top mounted 2 level paddle type agitator, driven by reducer and el. motor with power 4 kW, 380 volt 3/50 Hz. Working rotation of agitator up to 18 rpm. Agitator is supported at bottom. Mixing chamber is equipped with 4 baffles welded to the wall. Top flat, with bolted stainless steel cover, equipped with hinged inspection manway. Bottom, elipsoidal, welded, with central discharge outlet. Tank is mounted on (3) carbon steel legs. New 2003. Last time used in chemical production.
