Centrifugal pump, CRN10-02 A-P-G-V-HQQV, 20,2m, 10m3/h, Grundfos, used - overhauled Special price We still have several identical and other such devices, but the amount is ending. Buy more than 1 piece, there is still a great discount. If you have a VAT number, we will gladly issue you an invoice without VAT. Used and overhauled! The part was bought from a spare parts store of a company, was overhauled by a specialised company and is in a very good condition and fully functional. Vertical, multistage centrifugal, Booster pump. The pump components in contact with the medium are made of high-quality stainless steel. P: 0,75 KW, H: 15,3m, Hmax: 20,2m, Q: 10m³/h 260 x 200 x 590mm hoch, 31kg, Function guarantee for used goods! For used goods, we can not provide a conventional warranty and warranty. Since we know that the device works, we give you a functional guarantee w ...

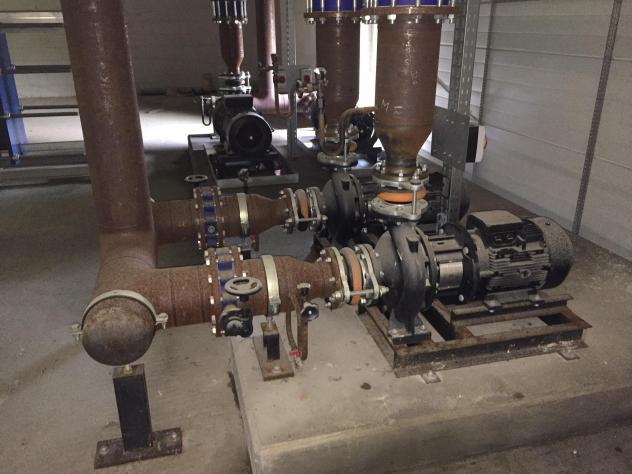

Manufacturer: Grundfos Number: 3 Model: NBE 65-160/173 A-F-A-BAQE Built: 2008 Rated flow current: 126.9 m3/h Nominal head: 33.4 m Speed: 2910 rpm Pressure: 16 bar Temperature range: 0-120 °C Power: 15 kW The pumps never went into operation after installation and are therefore virtually unused. Technical specifications and data sheets are available and will be sent on request. The pumps can be purchased individually as well as in the complete package.
Manufacturer: Grundfos Number: 3 Model: NBE 50-160/167 A-F-A-BAQE Built: 2008 Rated flow current: 87.4 m3/h Nominal head: 32.6 m Speed: 2900 rpm Pressure: 16 bar Temperature range: 0-120 °C Power: 11 kW The pumps never went into operation after installation and are therefore virtually unused. Technical specifications and data sheets are available and will be sent on request. The pumps can be purchased individually as well as in the complete package.
Manufacturer: Grundfos Number: 1 Model: NB 100-200/181 A-F-A-GQQE Built: 2008 Rated flow current: 284.3 m3/h Nominal head: 33.4 m Speed: 2950 rpm Pressure: 16 bar Temperature range: 0-90 °C Power: 37 kW The pumps never went into operation after installation and therefore virtually unused. Technical specifications and data sheets are available and will be sent on request.
Manufacturer: Grundfos Number: 2 Model: NB 100-250/245 A-F-A-BAQE Built: 2008 Rated flow current: 148 m3/h Nominal head: 18.1 m Speed: 1460 rpm Pressure: 16 bar Temperature range: 0-120°C Power: 11 kW The pumps never went into operation after installation and are therefore virtually unused. Technical specifications and data sheets are available and will be sent on request. The pumps can be purchased individually as well as in the complete package.
Centrifugal pump centrifugal pump Brand: Grundfos pump Type: TP 100-70/4 A-F-A-BAQE H: 5.1 m Q: 73,1 m3/h Engine: 1, 5kw 2900rpm Div: NEW in box 2008
Grundfos centrifugal centrifugal fire pump: Grundfos pump Type: CR64-2-2 A-F-A-V-HQQF H: 30 m Q: 64 m3/h Engine: 7, 5kw 2900rpm Div: NEW in box 2008

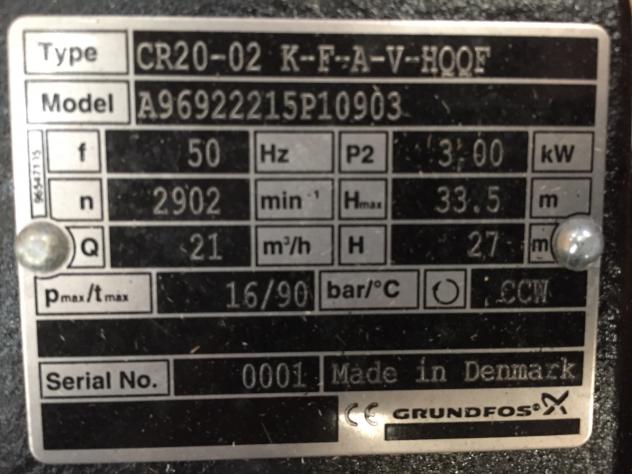

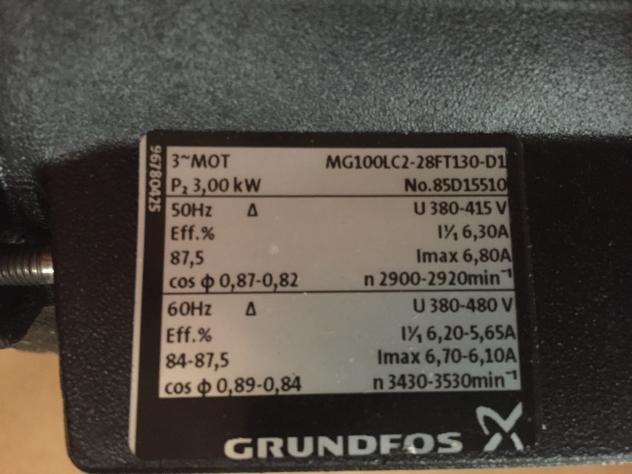

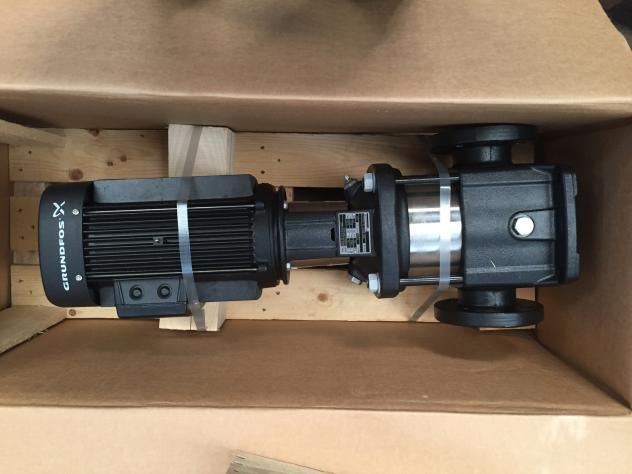

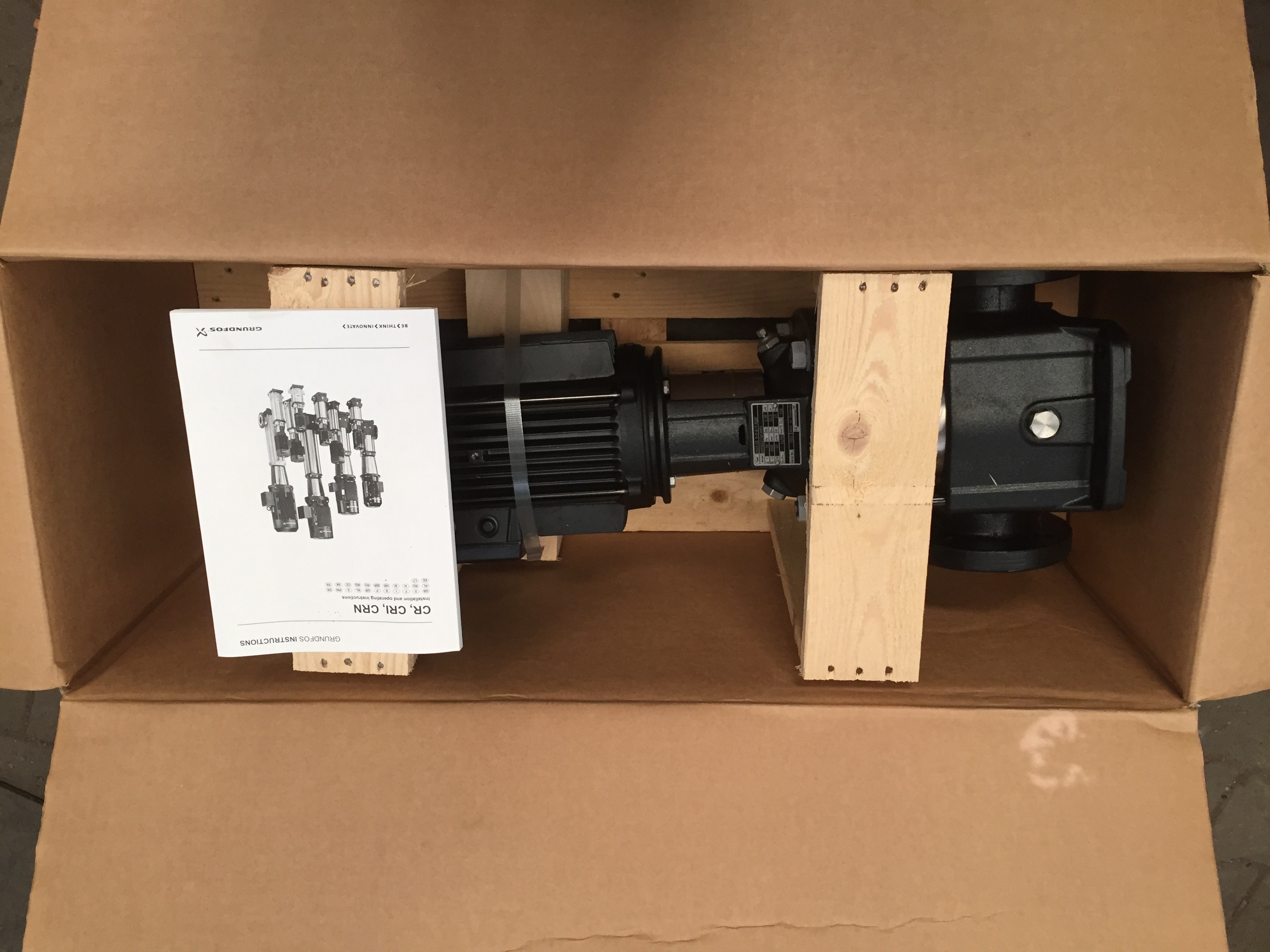

Grundfos centrifugal centrifugal fire pump: Grundfos pump Type: CR 20-2 K-F-A-V-HQQF H: 27 m Q: 21 m3/h Motor: 3kw 2900rpm Div: NEW in box 2009
New (second hand) pump Grundfos CR 5-15 Vertical, multistage centrifugal pump with suction and discharge ports on same the level (in-line) enabling installation in a horizontal one-pipe system. The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a split coupling. Pipework connection is via oval flanges with internal Rp threads. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
New (secondhand) Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high-grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. CM 5-4 (photo 1 and 2) Rated flow: 4.7 m³/h Rated head: 30.7 m CM 3-4 (photo 3 and 4) Rated flow: 3.1 m³/h Rated head: 27.4 m
Plant: Second-hand Grundfos pressure increase station Type: CR30-20 Model: 50000 PL9017 -: 2900 min Performance: 30 m, m³/h Height: 20.5 m Maximum pressure: 16 bar Temperature: Max 110 C.
Multistage titanium inline centrifugal pump from Grundfos for pumping bleaching lye or seawater
Extinguishing water pump Grundfos CR64, flow rate: 64m³/h, delivery head: 145m, speed: 2960rpm, max. pressure: 25bar, max. temperature: 120°C.
Vertical Multistage High Pressure Centrifugal Pump GRUNDFOSTyp CR10-10 A-A-A-E-HQQEModel A96501232P31648Series. Nr 0008Year of construction 2016Nominal flow rate max. 10 m3/hNominal delivery height 81.6 meters = 8.1 barDelivery height max. 102 metersPump capacity max. 16 barTemperature max. 120Nominal speed 2920-2940 rpm. Motor power 4 kWNet connection 400 volts, 50 Hz pump structure in 10 steps - pump elements made of stainless steel 1.4301, pump base made of cast iron connection flanges with adapter flange for 1 1/2
Vertical Multistage High Pressure Centrifugal Pump GRUNDFOSNome pump, but part of the magnetic coupling has been dismantled. Type CRN 10-09 MP-FGJ GI-Vyear approx. 2012Flow rate at 7.2 bar: max. 10 m3/hDischarge height: max. 91.8 metersGrid connection: 400 volts, 50 HzPower: 3 kW- pump structure in 9 stages- made of stainless steel 1.4401- The pump in mint condition was used as a spare parts dispenser, but there are several new pump chambers- part of the magnetic coupling is missingsuitable for drinking water supply, irrigation
Submersible Pump, Coolant Pump GRUNDFOS SPK2-15/8 A-W-I-AUUV E3HEH0508P31029 Submersion depth = 435 mm Pump foot = 90 mm flange = 130 mm Q = 2 m3/h H = 23.7 m 220 - 240 / 380 - 415 V 0,37 KW used !' Dimension: 710 x 150 x 210 mm
In-line pump, vertical centrifugal pump, water pump, GRUNDFOS CRE64-1 A-F-A-E-HQQE Q: 64 m3/h H: 21.1 m H max: 31.9 m 16 bar with frequency converter ! motor: 5.5 kW 380 - 480 V New ! Dimensions: 960 x 380 x 330 mm
In-line pump, centrifugal pump, water pump GRUNDFOS CRNE5-36 A-P-GI-E-HQQE Q: 5.8 m3/h H: 189.2 m H max: 248.4 m 25 bar with frequency converter ! motor: 5.5 kW 380 - 480 V New ! with operating instructions ! Dimensions: 1610 x 330 x 300 mm
In-line pump, centrifugal pump, water pump GRUNDFOS LP 65-125/104 A-A-A-UUE Q: 28 m3/h H: 12 m 10 bar motor: 1.5 kW 220 / 380 V New ! Dimensions: 515 x 480 x 250 mm
High Pressure Centrifugal Pump, Water Pump, Centrifugal Pump GRUNDFOS CRN3-3. G-V-HQQV Q =3 m3/h H = 15.1 m H max = 19.9 m P max 25 bar engine: 0.37 kW 380 / 480 V connection: 1 1/4 inch used, tested ! Dimensions: 370 x 210 x 450 mm
Centrifugal pump, water pump GRUNDFOS C 4J518003 P10206 Q: 4.5 m3/h H: 29 m 10 bar motor: 0.8 kW 220 /380 V Dimensions: 430 x 230 x 270 mm
Dry Runner Pump, Water Pump, Centrifugal Pump GRUNDFOS TP 150-200/4 A-F-A-BAQE Q: 235 m3/h H: 16.4 m 16 bar motor: 15 kW 380 / 690 V suitable frequency inverter Art. No. EL193 Dimensions: 1100 x 850 x 550 mm
Centrifugal Pump, Water Pump GRUNDFOS CHI4-30 A-W-G BQQV Q: 4,4,000 5 m3/h H: 21 m Hmax.: 29 m p: 10 bar t: max. 110 °C motor: 0.8 kW 220 - 240 / 380 - 416 V 3AC 50 Hz IP55 Pump base: 160 x 130 mm Hole spacing: 68 / 108 mm 4x Bore: Ø 8.5 mm Pump material: Stainless steel Pipe connection: Inner diameter: Ø 37 mm, Flange diameter: Ø 115 mm used, tested ! Dimensions: 430 x 220 x 275 mm
Submersible Pump, Coolant Pump GRUNDFOS MTR5-20/10 A-W-A-HUUV A98046390P31318 Immersion depth: 650 mm Pump base: Ø 115 mm Pump flange: Ø 180 mm Q: 5,5,00 mmbr / 8 m3/h H: 51.8 m motor: MG90SB2-24FT115-D1 1.5 kW 2890 - 2910 rpm 220 - 240 / 380 - 415 V3AC 50 Hz 60 Hz operation is possible ! IP55 New ! Dimensions: 1050 x 180 x 200 mm
Inline Pump, Vertical Centrifugal Pump GRUNDFOS CR5-5 A-A-A-V-HQQV A96517006P31217 Q: 5.8 m3/h H: 24.1 m H max: 34,1 m3 m 5 m 19 bar 90 °C motor: MG80A2-19FT100-H3 0.75 kW 2840 - 2870 rpm 220 - 240 / 380 - 415 V 3AC Pump Foot: 220 x 155 mm hole spacing: 180 / 100 mm hole diameter: Ø 13.5 mm New ! Dimension: 225 x 220 x 570 mm
Grundfos Pumpe Typ:CR3-15 A-A-A-E-HQQE Neu More then 300 machines new and second hand on our seema .de
Neue Grundfos Pumpe Model-PN-SN A96516603.10001784 Type:CR3-19 A-A-A-E-HQQE More then 300 machines new and second hand on our seema .de
Vertical multistage high-pressure centrifugal pump GRUNDFOS type CR8-50 A-F-A-AUUE Model B42770005P10132 year of construction 2001 Nominal flow rate 9.5 m³/h Nominal delivery head 42.3 meters = 4.2 bar Pump capacity max. 16 bar Operating temperature max. 120 C Nominal speed 2900 rpm. Motor power: 2.2 kW Mains connection: 400 volts, 50 Hz - pump structure in 5 stages - pump elements made of stainless steel 1.4301, pump base made of cast iron connection flanges DN 40 - suitable for drinking water supply, irrigation and drainage Space requirement pump L x W x H 280 x 250 x 720 mm Weight 46 kg very good condition, overhauled from stock, no longer used after overhaul No submersible pump or submersible pump; used
Vertical multistage high-pressure centrifugal pump GRUNDFOS Pump as good as new, but part of the magnetic coupling has been dismantled. Type CRN 10-09 MP-FGJ GI-V Year of construction approx. 2012 Flow rate at 7.2 bar: max. 10 m3/h Delivery head: max. 91.8 meters Grid connection: 400 volts, 50 Hz Power: 3 kW - Pump structure in 9 stages - made of stainless steel 1.4401 - The pump in mint condition was used as a spare parts dispenser, but there are several new pump chambers - a part of the magnetic coupling suitable for drinking water supply is missing, Irrigation and drainage Packed in the original wooden box Space requirement pump LxWxH 1100 x 250 x 300 mm Space requirement Shipping box LxWxH 1400 x 330 x 340 mm Weight with shipping box 85 kg As good as new No submersible pump or submersible pump; used
Vertical Multistage High Pressure Centrifugal Pump GRUNDFOS Type CR10-10 A-A-A-E-HQQE Model A96501232P31648 Series. Nr 0008 Year of construction 2016 Nominal flow rate max. 10 m3/h Nominal delivery head 81.6 meters = 8.1 bar Delivery head max. 102 meters Pump capacity max. 16 bar Temperature max. 120 Nominal speed 2920-2940 rpm. Motor power 4 kW Mains connection 400 volts, 50 Hz pump structure in 10 steps - Pump elements made of stainless steel 1.4301, pump base made of cast iron connection flanges with adapter flange for 1 1/2 thread - suitable for drinking water supply, irrigation and drainage Space requirement pump L x W x H 250 x 250 x 970 mm Weight 71 kg Unused replacement pump from stock, as good as new No submersible pump or submersible pump; new
