Model
(Manufacturer: IMA)
Technical details: - Premilling Unit - Corner Rounding Unit - Max feed speed: 30 m/min - Max panel thickness: 60 mm - Operating Units: 8
3-axis machine for milling and drilling Working dimensions: X - axis: 4,000 mm Y - axis: 1,200 mm 6 workpiece supports 4 lifting rails for positioning heavy workpieces Rear row of stops medium row of stops (especially facilitates the assignment of the machine with small workpieces) Left-hand and right-hand stops on the side 20 pcs vacuum cups Vacuum pump 90 cbm/h incl. coolant unit for main spindle Stepping mat protection in front of the machine Machining equipment: Milling unit 7.5 kW, 1,500 - 18,000 rpm Tool holder HSK 63 F Spindle water-cooled with separate cooling system Tool change magazine 8 times moving along with the milling spindle Drill head with 21 vertical drilling spindles, pitch 32 mm Spindles can be called up individually ATTENTION: 1 spindle defective Horizontal drill head with grooving unit in crosshead design 0 / 90 degree sw ...
Edge height max. 65 mm Edge thickness max. 20 mm Strip cross-section max. 20 x 55 mm Fixed workpiece protrusion in post-processing incl. Edge material 38 mm (max. edge thickness 8 mm) In the case of strips or edge thickness > 8 mm, the output is in of post-processing 30 mm + strip thickness Post-processing is then only possible with the following units: possible: cross-cut and milling unit 08.055 and grinding unit Feed speed 6 - 30 m/min. Roller support rail extendable up to 700 mm Machine length 9,300 mm IMATRONIC 121/01 with system software for operating the Edge banding machine Compact PC in industrial design Electronic height adjustment of the upper pressure Inlet ruler axis-controlled Milling unit 08.376 with 2 motors of 4.5 kW each, in the Working in sync or counter rotation Infrared emitters for workpiece edge preheating Gluing unit 283.151 ...
High-speed labeller for 2.25 ml Ypsomate Autoinjectors. Output: up to 250 pcs/min. Retrofit to Ypsomate Pro or to 1 ml size possible. Machine line consists of an automatic pallet management system for the autoinjectors packed on pallets in trays, unused.
Cnc machining center IMA BIMA 310 V 120/160 B.j 2004 Equipment: - Dyna Poin Armoury Table BIMA 410 V Cgvpa9u89o - 4 Seat occupancy - Edge gluing part Specifications: Machining area - in X-direction without gluing: 6000 mm - in X-direction mot gluing: 5000 mm Jyox3u - in Y-direction: 1300 mm - in Y-direction with main spindle + WZ-Ø 20 mm: 1630 mm - in Y-direction with gluing: 1450 mm
CNC machining center including laser edge type BIMA / Gx50 / E / 160 / 630 Specifications: IMA gantry machine in real GANTRY design Processing area: • Length in X direction with all aggregates (mm): 6300 • Width in Y-direction with all aggregates (mm): 1600 • Height in Z-direction with all aggregates (mm): 225 maximum clamping height including clamping device - the maximum workpiece thickness depends on equipment/application • Length in X direction with vertically positioned main spindle and tool diameter 20 mm: 6300 mm • Width in Y-direction with vertically positioned main spindle and tool diameter 20 mm: 2000 mm • Width in Y-direction with edging (mm): 1600 • Length in X-direction Single user processing without gluing (mm): 2 x 3050 • Length in X-direction free space center (mm): 200 • Length in X-direction Single user processing with gluing (mm): 2 x 2 ...
Very nice tableting machine IMA Comprima 300 with 4 sets of tooling. Round 9mm and 12mm. Oblong 16x9 and 16.5x9.5 Very few working hours. New computer installed 2013. Cleaning in place. Was in perfectly good condition when it was decomissioned.
Technical data (subject to change): Machine: Constant workpiece output from the chain path: 38 mm (incl. edge at edge thicknesses 0.3 - 3 mm) min. throughput width: 65 mm with a maximum workpiece thickness of 25 mm min. workpiece length in feed direction: 150 mm Basic height (upper edge chain track): 960 mm Workpiece: min. workpiece length: 150 mm min. workpiece width: 65 mm min. workpiece thickness: 8 mm workpiece thickness: 40 mm (with copy function) workpiece thickness: 60 mm (without copy function) Smallest workpiece: 150 mm x 150 mm, or 65 mm x 300 mm Lateral protruding coating material: 0 mm Edge material: paper, plastic and veneer min. height: 14 mm height: 65 mm Roll material: min. thickness 0.3 mm thickness 3.0 mm Veneer edges limited possible up to 1.0 mm cross-section 130 mm² min edge length 160 mm upper edge protrusion: 5 mm Equipment: - Drive fo ...
specifications: Up to 400 PCS/MIN, 8 sealing heads, continuous rotary sealer. Vial diameter (mm) DF: Min 14, Max 52. Vials height (mm) HF: Min 35, Max 110. Cap diameter (mm) DC: Min 13, Max 33. Cap height (mm) HC: Min. 6, Max. 16. Power: up to 400 rpm. Standard voltage: 400V - 50 Hz.
Edgethickness: 0,3 - 20 mm Edge height: 14 - 65 mm Edge length: minimum 160 mm Feedrate: 6 - 30 m/min Workpiece thickness: 8 - 60 mm Workpiece width: minimum 65 mm Workpiece length: minimum 150 mm
Table size X 5300 Y 1300 mm 800 mm wide waste outfeed conveyor 2 CNC Z axes Drilling head with 21 vertical drill spindles and 4x2 horizontal drill spindles with integrated grooving saw rotatable through 90° Extraction shoe for the vertical drill spindles and chip & dust extraction of the horizontal spindles integrated in the drilling head 10 kW main spindle, vector-controlled a 3600 C axis, fully interpolating
Edge gluing machine Manufacturer: IMA Model: Compact 508 Built: 1988 Facilities - Caps - Flush milling - Forming milling units - Radius/Chamfer milling - Corner machining - Pulling blade - Schwabbelaggregate

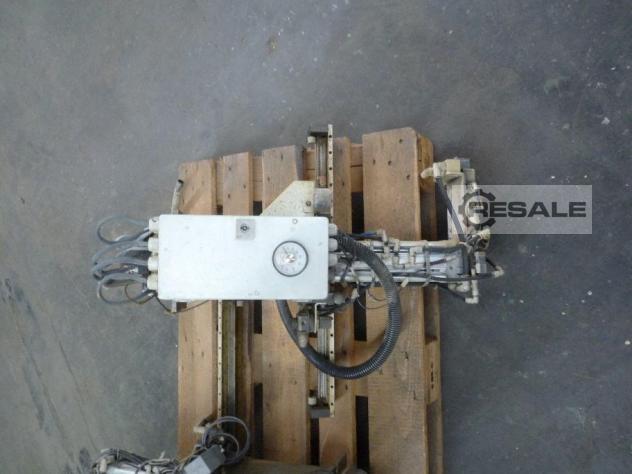

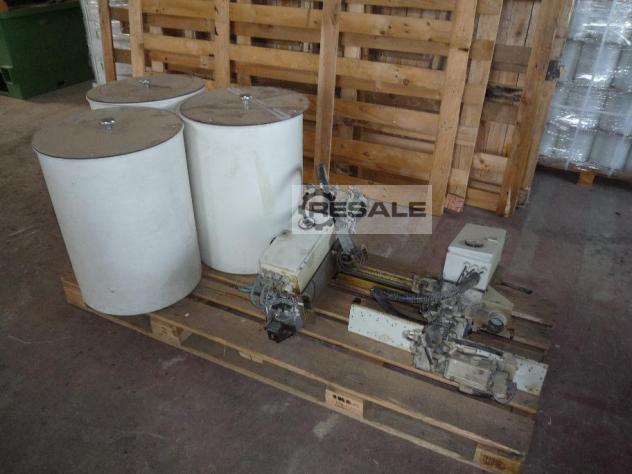

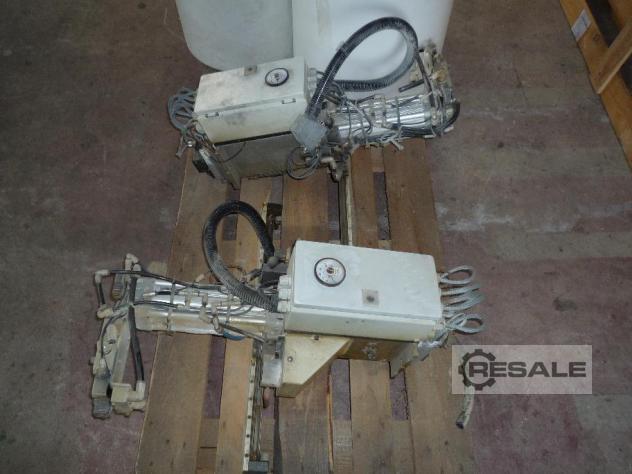

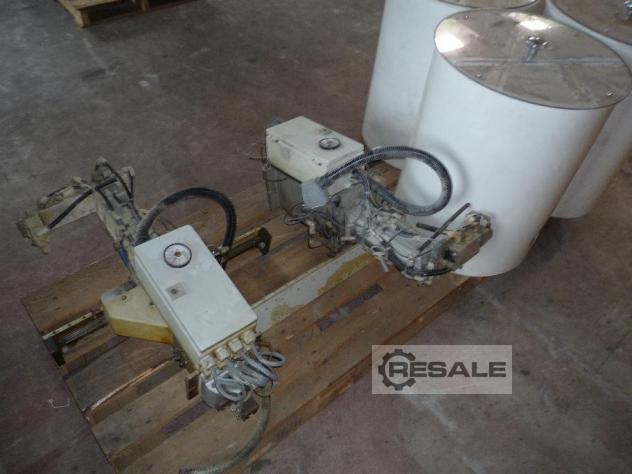

2 pieces available For more information, please refer to the enclosed photos.
Used IMA coating pan, type HTM 300. Pharmaceutical version. Manufacturer's documentation.
The Solid wall pan , with no perforations , makes it possible to process all sizes and shapes of product without clogging . The shape , combined with the surface smoothness , bring a perfect mixing of the cores and a uniform distribution of the coating material . An exclusive , patented drying system . Two paddles immersed in the core bed guarantee that the drying air is conveyed directly through the tablet mass, thus avoiding swirls and turbulence inside the pan. Either blowing or exhausting paddles can be used, depending on the process requirements. e use of different sizes of paddles guarantees high flexibility in terms of pan working capacity. Spray guns : Both Sugar and Film spray guns can be easily fitted on the sliding support arm, which can be rapidly removed from the front door of the pan, allowing their calibration/adjustment and fast, safe cleaning and sanitizing operations. T ...
Glue application machine for sanding machine IMA

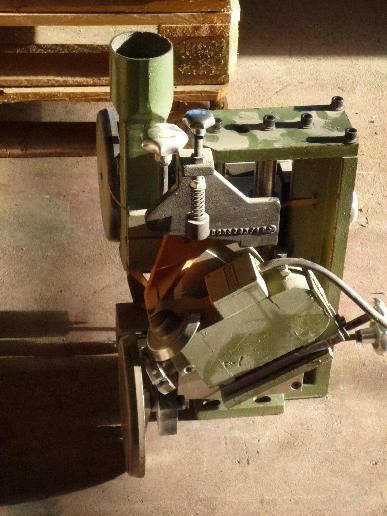

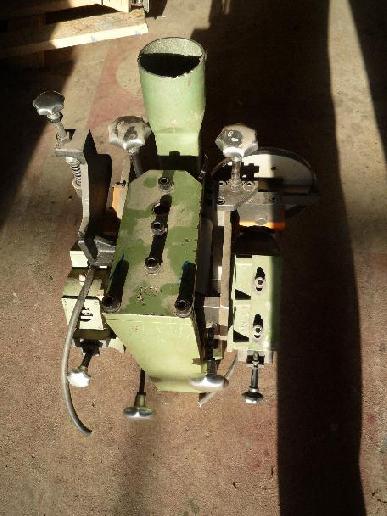

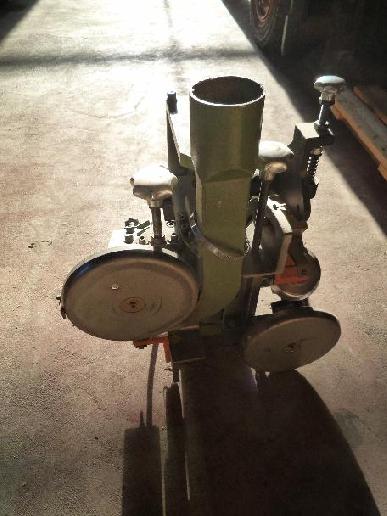

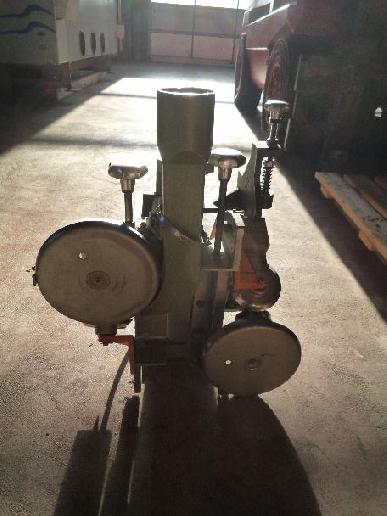

Milling / Beveling aggregate Serial No.: IMA -for double-sided edge banding machine (1 Unit left right side page / 1 units)
Chain plates (used) Serial No.: IMA -with rubber plate and mounting bracket -Dimensions: 80 x 60mm -more than 100 PCs available Price per piece: 4,50 euro + VAT
used
Machine with full equipment: Add Glue up to 15 mm Flat saws Preliminary vessels Chamfer milling Rounding threads and corner copying Grinding unit Flat and rounding drawing blade Smooth with return belt
This 3-axis IMA BIMA Quadroform C80/280 was manufactured in 1996. It features a spindle speed of 16,000 rpm and travel distances of X: 2800 mm, Y: 660 mm, and Z: 230 mm. Pendulum processing is possible, enhancing operational flexibility. It includes its own IMA control system. If you are looking to get high-quality milling capabilities, consider the IMA BIMA Quadroform C80/280 machine we have for sale. Contact us for more information.
This IMA COMBIMA double-sided edge processing machine was manufactured in 2000. It is a double-sided edge processing unit ideal for industrial furniture production. For more information about this woodworking machine, please reach out to us.
Table dimensions X/Y: 2800mm/800mm, working height: 970mm, min. workpiece length: 150mm, double occupancy: 1000mm, single occupancy: 2800mm, workpiece thickness min./max.: 10mm/60mm, machine dimensions X/Y/Z: approx. 6500mm/3800mm/3100mm. Including a dongle for an Imawop office workstation. Documentation available. On-site inspection is possible.
An edge banding line including feeding, turning device and an automatic drilling machine is available. The longitudinal machine enables the processing of thick edges and is equipped with new units and controls. The transverse machine can only process thin edges as there is no coupling unit. The machine was operated at up to 28 cycles per minute. Control system: Imatronic 150, documentation is available. Control system: Imatronic 150, including spare parts and tools. Documentation is available.
This edge gluing and finishing machine was manufactured in 2012. It features a robust sliding feed chain, automatic lubrication, and a versatile gluing unit VTG for precise edge applications up to 3 mm. Equipped with a 12-fold edge magazine and a multi-profile milling unit, it supports diverse woodworking tasks. Ideal for handling paper, plastic, and veneer edge materials. For more information about this edge gluing and finishing machine, please reach out to us.
This IMA NOVIMAT CONCEPT I /G80/5325/L20 edgebander was manufactured in 2005. Ideal for precise edgebanding applications, it ensures consistent performance. Consider the opportunity to buy this IMA NOVIMAT CONCEPT I /G80/5325/L20 edgebander. Contact us for more information.
This IMA Novimat Concept/I/G80/440/R3 edgebander was manufactured in 2006. Consider the opportunity to buy this IMA Novimat Concept/I/G80/440/R3 edgebander. Contact us for more information about this machine.
This edge processing line was manufactured in 1996. It features a robust double-sided edge processing line, including a gluing unit with granulate pre-melter and a 6-position roll magazine for edging material. Equipped with both flush and fine milling capabilities, it also includes a profile scraper and a buffing unit. Ideal for longitudinal and transverse processing, the IMA COMBIMA offers comprehensive functionality for advanced woodworking tasks. For more information about this woodworking machine, please reach out to us.
This edgebander was manufactured in 2008. It features a gluing unit with a 2-way edge magazine, trimming unit, flush milling, fine milling, and copy milling with 4 motors. Additional capabilities include profile and surface scraping, buffing, and both straight and radius sanding units. Ideal for comprehensive edge banding and finishing tasks. Contact us for more information about this machine.
