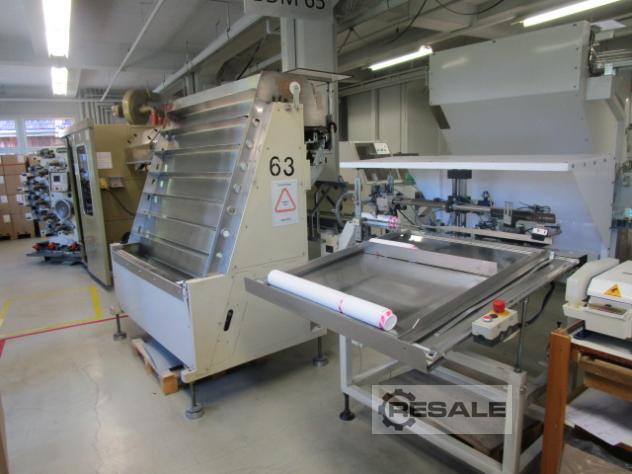

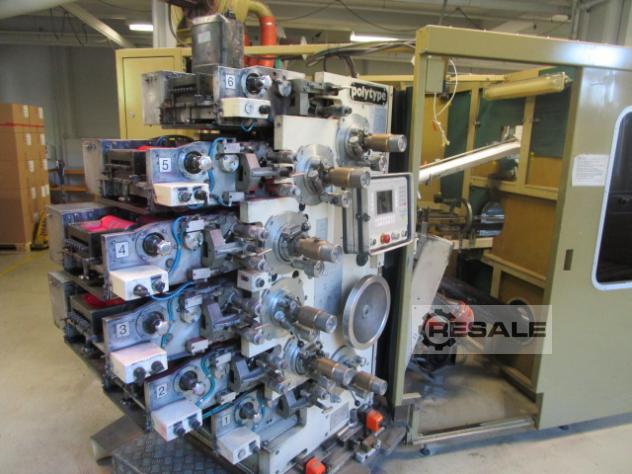

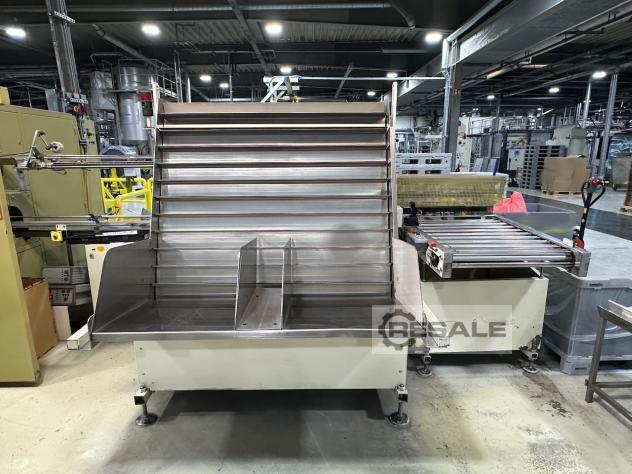

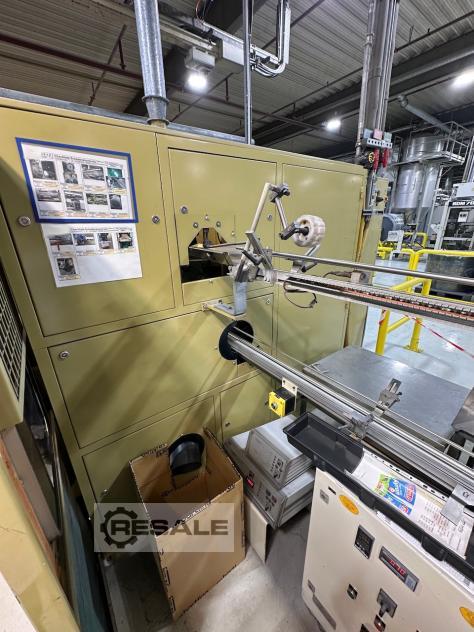

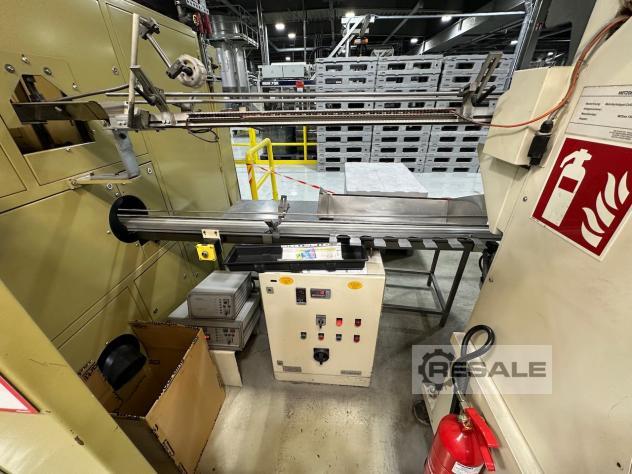

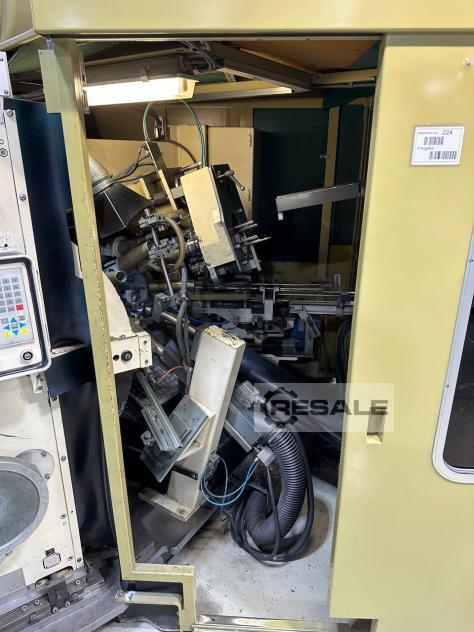

Used POLYTYPE BDM 501, 6-Color Round Cup Printer, age 1994 Consisting of :- Automatic Elevator Tray-feeder Cross Conveyor to main Print unit Universal screw Denester CUBITRON Corona Pretreatment System 8-mandrel Indexing Turret, with Mandrel Holders for Cups 6 x individually hinged dry-offset Print Heads Each Print Head consisting of Print cylinder, radial and axial Print adjustment with micro-register during operation of the Printer 2 x Form Rubber Rollers dia. 71 and 100 mm 2 x Oscillating rollers 2 x Idler Rollers 1 x Ink Transfer roller (Ductor Roller) 1 x Ink Fountain Ductor Rollers water cooled Ink Washing System on Print Heads UVITERNO Dual Lamp UV Curing-On-Mandrel Dual Belt Take-off with Air Assist Short conveyor to counter Stacker station Return Elevator Tray Feeder Max. Cup dia. 135 mm Max. Height of Cups 130 mm, Min. height of cups 35 mm Max. Printing ...

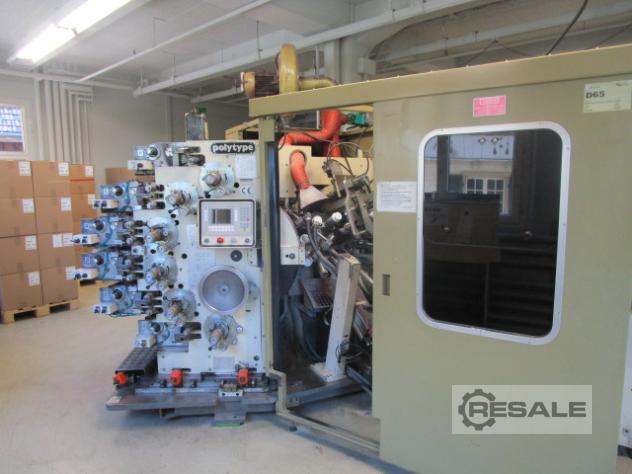

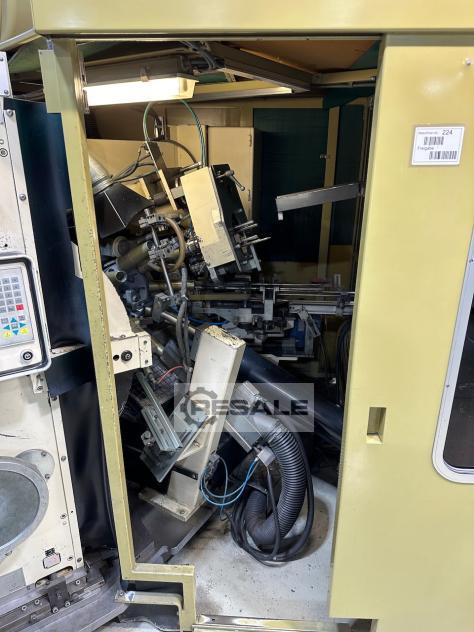

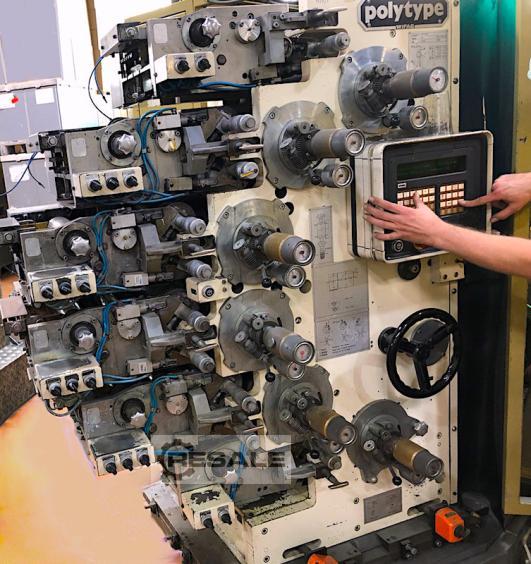

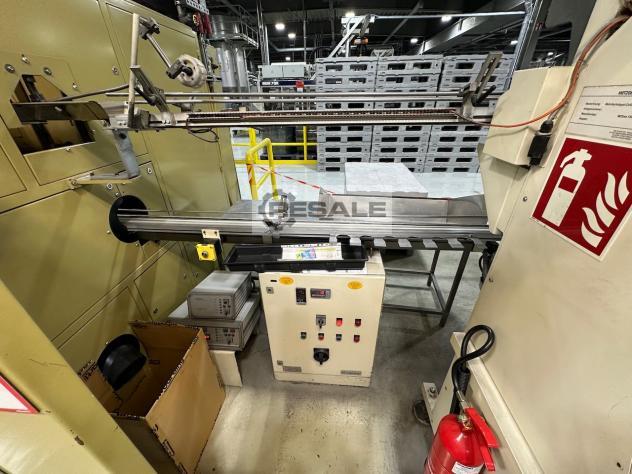

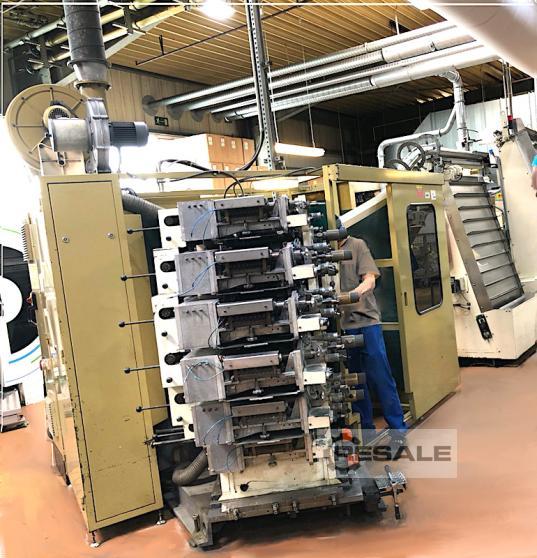

POLYTYPE BDM 611/ 916, 8-Color Cup Printing Line, age 1999 Consisting of: Elevator Tray Feeder Cross Conveyor feeder Universal screw Denester ARCOTEC CG30 Corona Pretreatment System with Arcotec Leak Tester 8-mandrel Indexing Turret, with Mandrel Holders for Cups UVITERNO Model Mono-Jumbo 8015, 9 kW, UV Curing-On-Mandrel Positive Blow-off, final dual Timing Belt take-off Conveyor to counter Stacker station with Ejector Tray. Max. Cup dia.130 mm Min. Cup dia. 60 mm Max. Height of Cups 150 mm Min. height of cups 35 mm Max. Printing Length : 362 mm Taper 2 - 10 degs Max. speed depending on size & shape of Cups: 36,000/ hr Siemens S5 PLC Controls Siemens CORTOS OP25 display with Touch-pad Controls.
POLYTYPE BDM 611/ 916, 8-Color Cup Printing Line, age 1999 Consisting of: Elevator Tray Feeder Cross Conveyor feeder Universal screw Denester ARCOTEC CG30 Corona Pretreatment System with Arcotec Leak Tester 8-mandrel Indexing Turret, with Mandrel Holders for Cups UVITERNO Model Mono-Jumbo 8015, 9 kW, UV Curing-On-Mandrel Positive Blow-off, final dual Timing Belt take-off Conveyor to counter Stacker station with Ejector Tray. Max. Cup dia.130 mm Min. Cup dia. 60 mm Max. Height of Cups 150 mm Min. height of cups 35 mm Max. Printing Length : 362 mm Taper 2 - 10 degs Max. speed depending on size & shape of Cups: 36,000/ hr Siemens S5 PLC Controls Siemens CORTOS OP25 display with Touch-pad Controls.

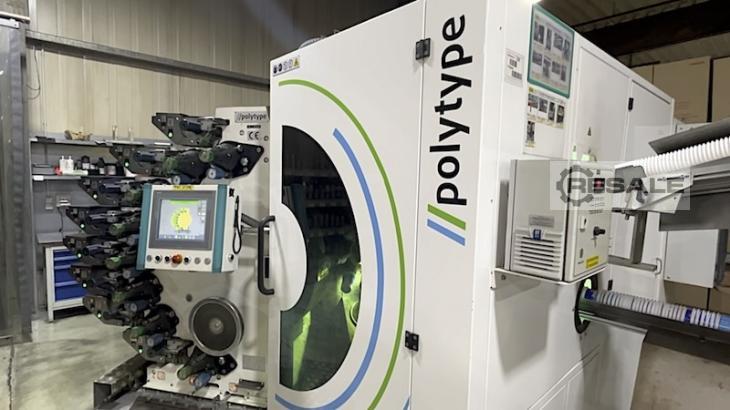

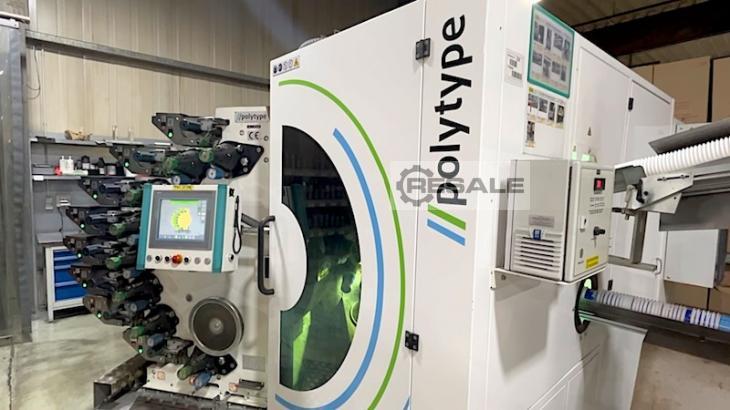

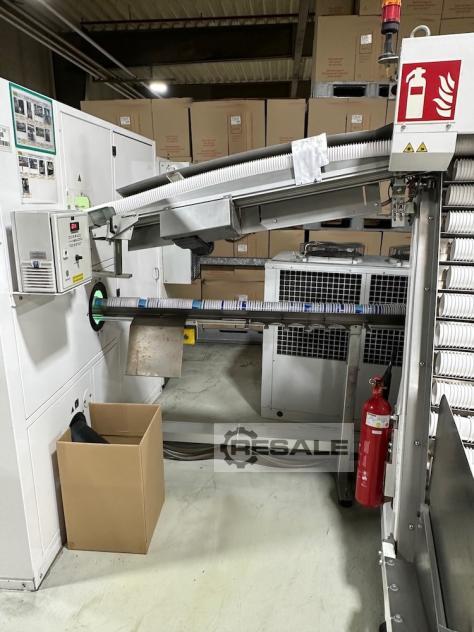

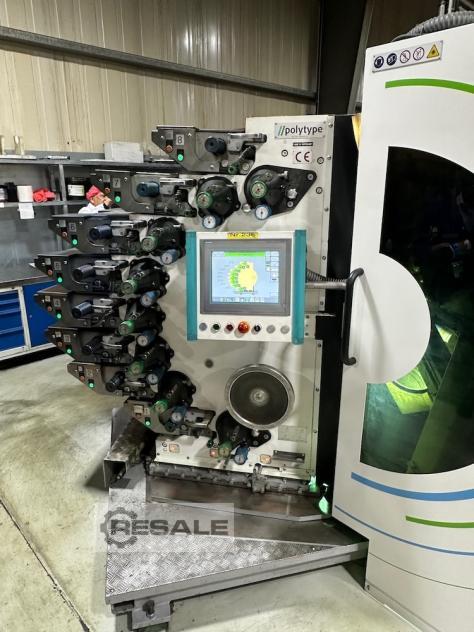

Dry offset 8-Color printing machine for round cups, Type Polytype BDM 681 Polyflex, age 2014 only used for less than 20,000 hrs. Technical data: Min./max. cup height: 35 -200 mm Min./max. rim diameter: 60 - 185 mm Min./max. taper: 2 - 15° Max. print height: 145 mm Max. print length: (6 sections) 273/345 mm Max. print length: (3 sections) 418/502 mm Max. printing speed: 650 cups/min Servomotor Universal Screw Denester UV Unit with dual 6 UV-Lamps FHW 3.0 CP Corona Pretreatment with Leak Tester Siemens S7 PLC Controls Siemens SINAMICS, SIMOTION D Drives The Print Heads are modern day Print Heads with two Rubber Anilox Rollers only, with an open chambered blade ink fountain. All heads have their own individual Servomotors. This type of Print head has been designed/ developed for precision very clear & crisp High speed Printing with the minimum of Operator intervention. ...

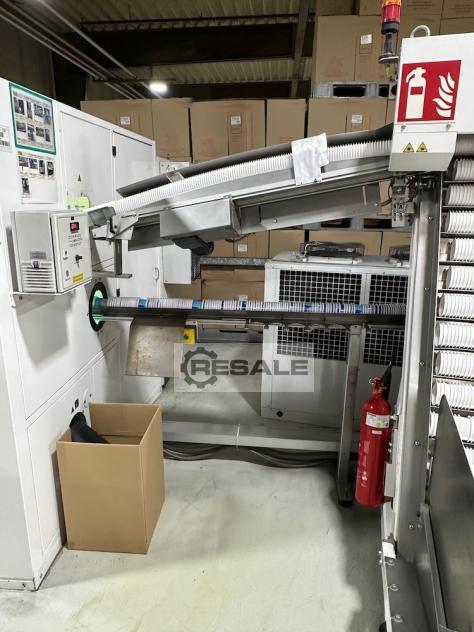

Polytype BDM 681 Polyflex, for round cups, age 2014 only used for less than 20,000 hrs. The pre-treatment and the UV-Mandrel curing are integrated in the basic machine concept. The newly designed cup in-feed and discharge automation round off the system. The main characteristics of BDM 681 printing technology are the very high effiency, the outstanding print quality, the short change-over time as well as the excellent accessibility and ergonomics (one operator layout). Technical data: Min./max. cup height: 35 -200 mm Min./max. rim diameter: 60 - 185 mm Min./max. taper: 2 - 15° Max. print height: 145 mm Max. print length: (6 sections) 273/345 mm Max. print length: (3 sections) 418/502 mm Max. printing speed: 650 cups/min Servomotor Universal Screw Denester UV Unit with dual 6 UV-Lamps FHW 3.0 CP Corona Pretreatment with Leak Tester. The Print Heads are modern day Print Heads ...

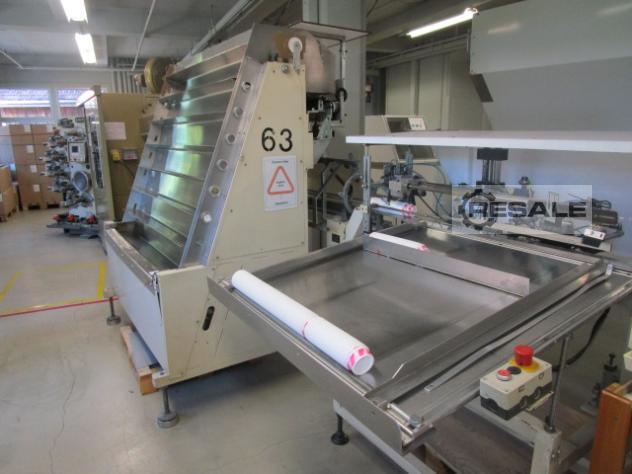

M. No.: 24 Colours: 6 Equipment / Additional information: Consists: • stacker • printing machine • Cup feeding • stapler Max. cup rim diameter 130 mm Min. cup rim diameter 55 mm production speed each according to cup size, quality and Raw materials with UV drying up to 24,000 cph
M. No.: 560037 Colours: 6 Equipment / Additional information: Consists: • stacker • printing machine • Cup feeding • stapler Max. cup rim diameter 130 mm Min. cup rim diameter 55 mm production speed each according to cup size, quality and Raw materials with UV drying up to 24,000 cph (without positioning) With positioning 12'000/h - 15'000/h depending on cup, format and flap. El connection value with drying approx. 26 kVA Electrical connection 3 x 400 V, 50 Hz Air connection / consumption 6 bar / approx. 50 m3/h Weight approx. 7,800 kg
LAMINATING SYSTEM POLYTYPE BB 2200 LAMINATION LINE Coating/- lamination equipment for solvent based resin system. On an existing film or composite material. Year: 2008 Condition: Excellent The different film thicknesses what can be used depending on the materials, see references: Plastic foils 25-250 microns Metal foils (copper, aluminium) 20-150 microns Total composite thickness max. 500 microns Machine data: Production speed 0 - 150m/min Production speed 840 - 2160mm Resin 1 - 40g/m2 Winding units (main winder-/ lamination winder-/tensilized film winder): For unwind of the base film there are two winders (main winder/ lamination winder). Winder performance: - Winding direction clockwise / anticlockwise - Brakes ystem for constant and regulated tension e.g. alu foil with max. 2000 kg roll weight - Roll system centerless for steel,plastic-, carton tubes with optimal ...
