Maximum turning length: approx. 1500mm Maximum turning diameter: approx. 700mm Maximum turning diameter over support: approx. 460mm Spindle diameter: approx. 80mm Spindle power: approx. 10kW Maximum spindle speed: approx. 1120 1/min Accessories Cheek chuck Various interchangeable jaws 1x quick-change holder Bezel Complete documentation Guide and pull spindle cover Lining protection L x W x H: approx. 3800x1500x1700mm Weight: approx. 3200kg Other accessories on request Price and other technical data on request
Article number: 04-03-110 Manufacturer: Weisser Heilbronn Good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1989 L x W x H: approx. 3500x1000x1700mm Weight: approx. 3500kg Digital display: 2-axis digital display Heidenhain Dimensions: Max. turning diameter over bed: approx. Ø425mm Max. turning diameter via support: approx. Ø240mm Max.turning length: approx. 2000mm Rod passage: approx. Ø58mm Spindle: Speed range: approx. 28-2500 rpm Spindle nose: A 2-5 Drive power: approx. 5.5kW Tailstock: MK4 Accessories 3 – jaws – chuck Schunk Ø 250 mm Quick-release steel bracket + 4 inserts Electric feed protection Work light Complete machine documentation NOT – Off Various tension wrenches Coolant device L+Z spindle cover Machine feet Various turning steels ...

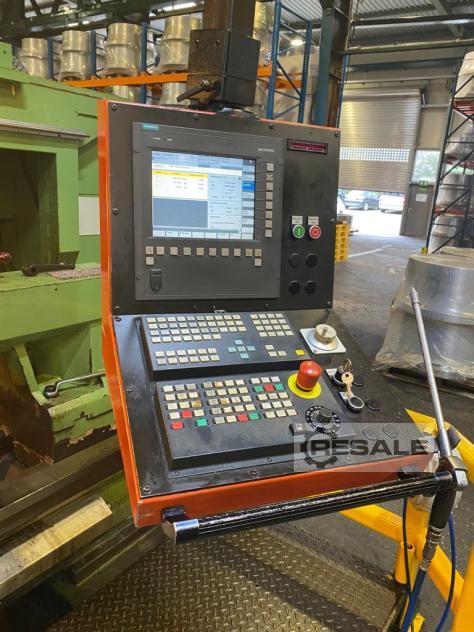

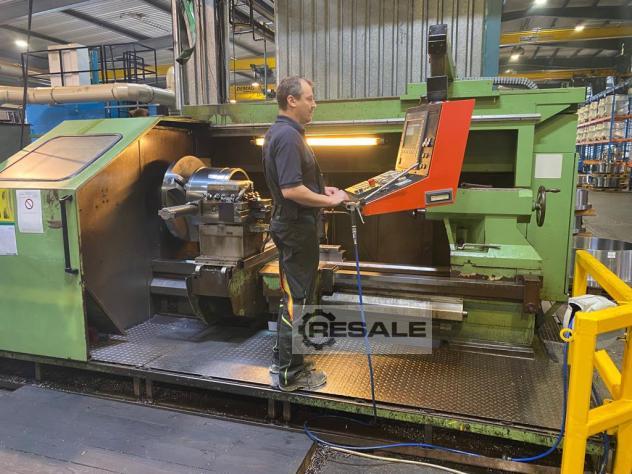

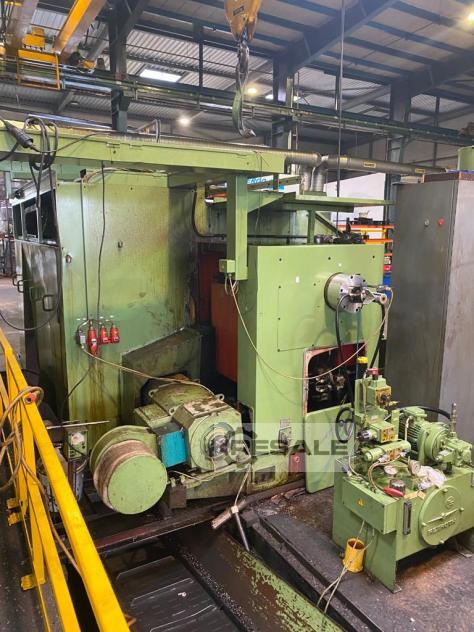

Very well preserved CNC lathe WEISSER Heilbronn, type Gigant. From precision operation, only ultra-fine machining. Details Type Gigant Machine No. 27-0166 hydraulically self-tightening fork art chuck with power clamping cylinder 4x Sauter revolver, size 400 mm2 Siemens SINUMERIK 840D fully functional Commissioning 04/2003 Travels X 725 mm (stroke), Z 1,480 mm Main spindle drive DC 45 kW (nominal power) Speeds in 3 stages up to max. 1,120 rpm a set of basic jaws inside/outside without Lynette (but can be provided for customization) incl. documentation

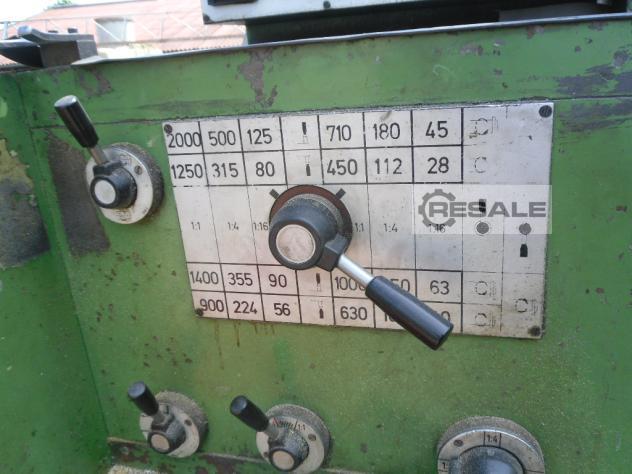

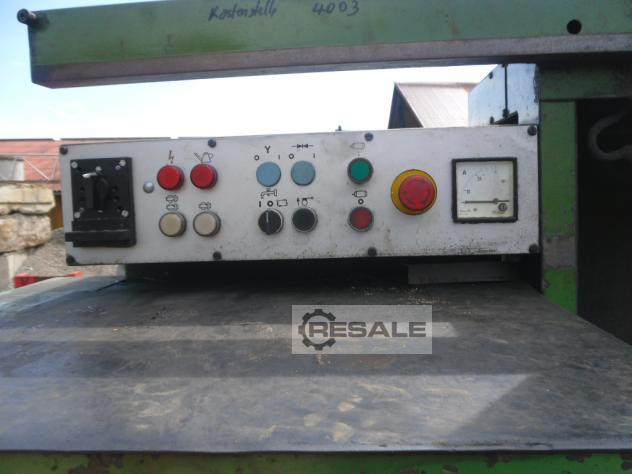

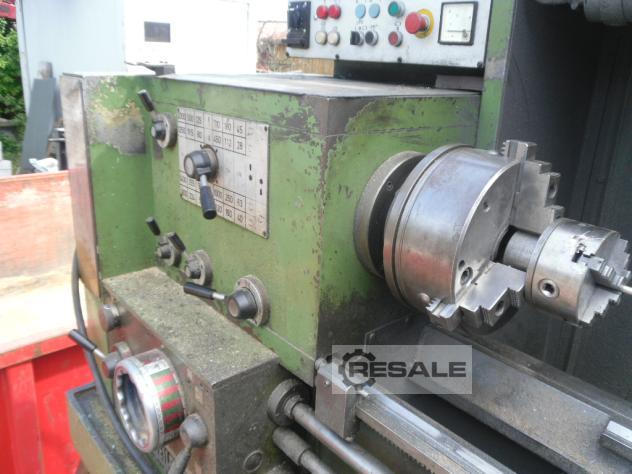

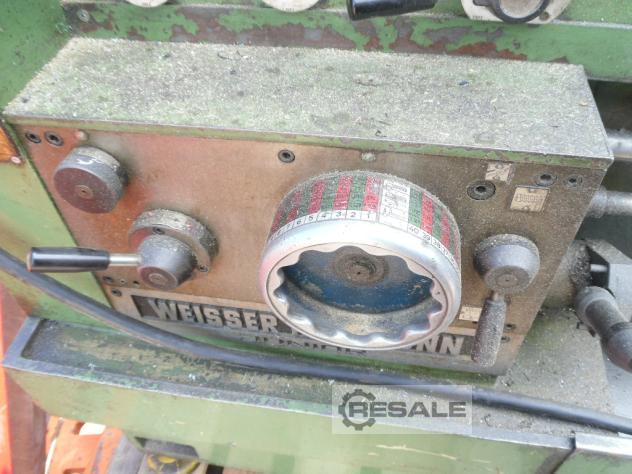

Lathe Speeds: 40 - 2000 rpm Tension - lead screw Distance between centers 1 m Center height 230 mm Length 2.50 m Width 1.20 m Height 1.60 m Multifix B recording Accessories Machine unchecked

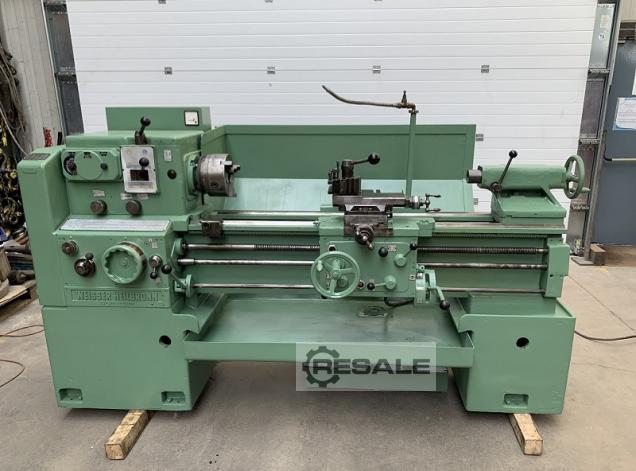

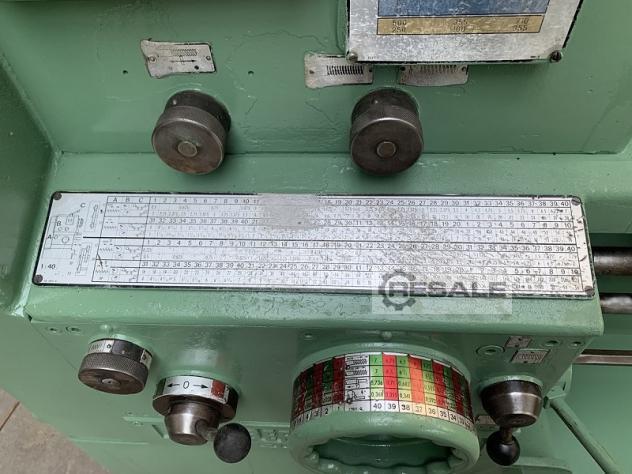

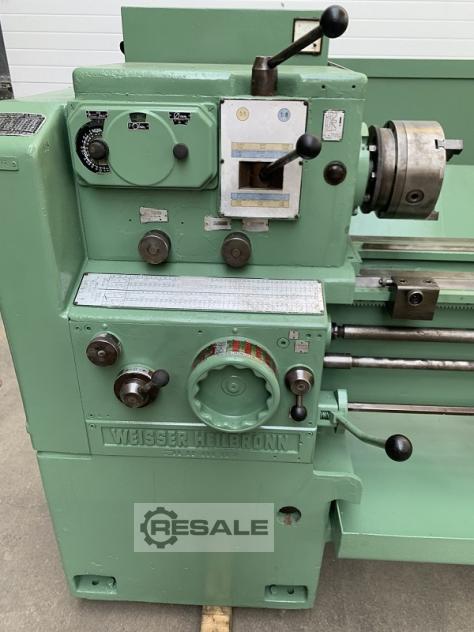

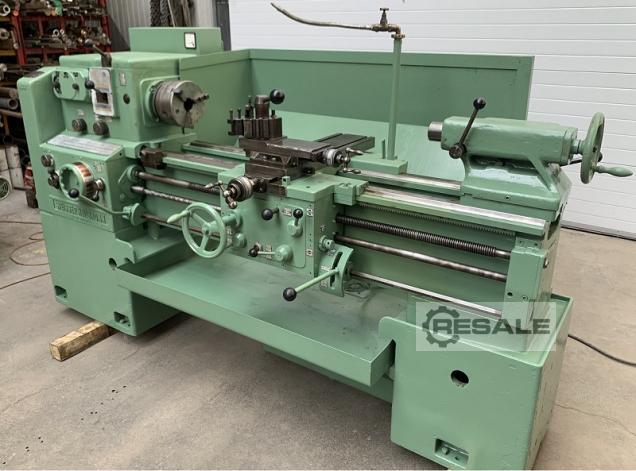

Parallel Lathe WEISSER HEILBRONN Between points: 1100 mm Maxi Ø on bench: 440 mm Maxi Ø over saddle: 230 mm Cone: CM4 Spindle diameter: Ø 45 mm Spindle speed: from 45 to 2000 RPM TRIPAN Turret 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Auto feeds longitudinal + transversal Lubricant pump Voltage: 380 V Dimensions (L x W x H): 2500 x 1300 x 1500 mm Weight: approx 2 T
Top width 2000 mm Turning diameter over bed 600 mm Spindle bore about Ã?80 Bed width 430 mm Tailstock MK5 Chuck diameter 315 mm Weight approx. 8to 92. P2b9fy8n Control Bosch CC220 (recently renewed)
turning diameter over bed: 400 mm turning diameter over slide rest: 230 mm turning length: 1100 mm centre height: 220 mm spindle bore: 45 mm spindle turning speed range: 45-2000 U/min weight of the machine ca.: 2.500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning length: 2000 mm turning diameter: 1200 mm centre height: 600 mm control: Siemens Sinumerik 840D The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter over bed: 3600 mm turning diameter over slide rest: . mm turning length: 10500 mm total power requirement: 22 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
