used
turning diameter over bed: 400 mm turning diameter over slide rest: 230 mm turning length: 1100 mm centre height: 220 mm spindle bore: 45 mm spindle turning speed range: 45-2000 U/min weight of the machine ca.: 2.500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
used
Article number: 04-03-110 Manufacturer: Weisser Heilbronn Good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1989 L x W x H: approx. 3500x1000x1700mm Weight: approx. 3500kg Digital display: 2-axis digital display Heidenhain Dimensions: Max. turning diameter over bed: approx. Ø425mm Max. turning diameter via support: approx. Ø240mm Max.turning length: approx. 2000mm Rod passage: approx. Ø58mm Spindle: Speed range: approx. 28-2500 rpm Spindle nose: A 2-5 Drive power: approx. 5.5kW Tailstock: MK4 Accessories 3 – jaws – chuck Schunk Ø 250 mm Quick-release steel bracket + 4 inserts Electric feed protection Work light Complete machine documentation NOT – Off Various tension wrenches Coolant device L+Z spindle cover Machine feet Various turning steels ...
used
Lathe Speeds: 40 - 2000 rpm Tension - lead screw Distance between centers 1 m Center height 230 mm Length 2.50 m Width 1.20 m Height 1.60 m Multifix B recording Accessories Machine unchecked !!
used

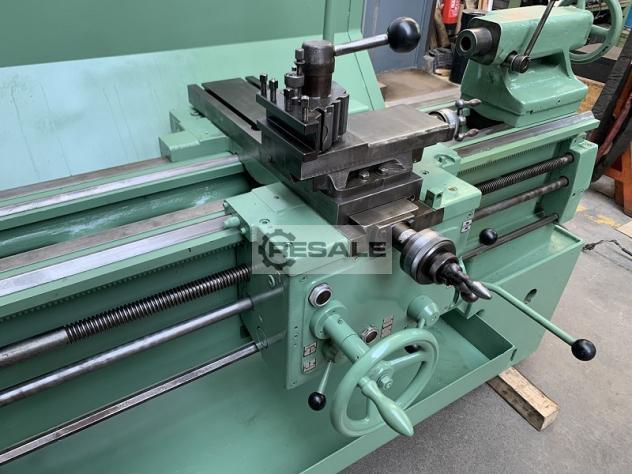

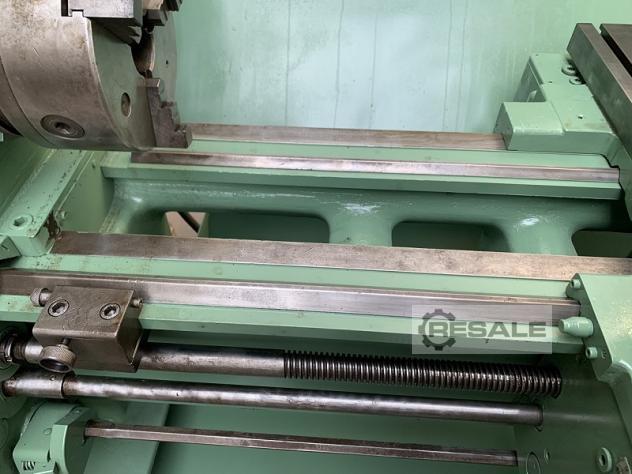

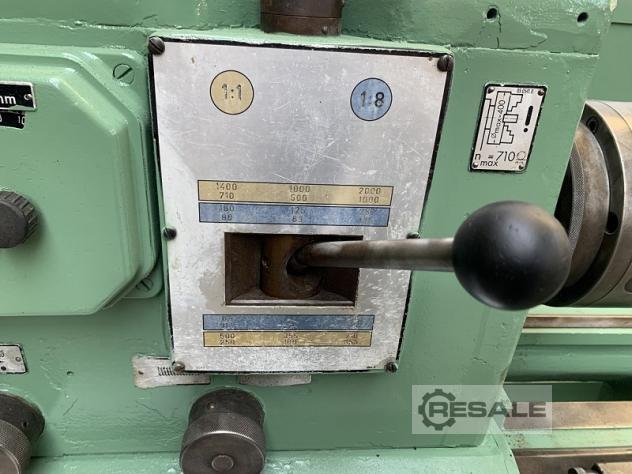

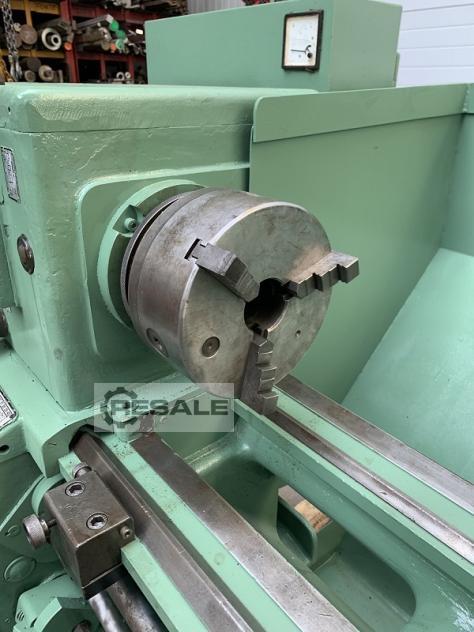

Parallel Lathe WEISSER HEILBRONN Between points: 1100 mm Maxi Ø on bench: 440 mm Maxi Ø over saddle: 230 mm Cone: CM4 Spindle diameter: Ø 45 mm Spindle speed: from 45 to 2000 RPM TRIPAN Turret 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Auto feeds longitudinal + transversal Lubricant pump Voltage: 380 V Dimensions (L x W x H): 2500 x 1300 x 1500 mm Weight: approx 2 T
