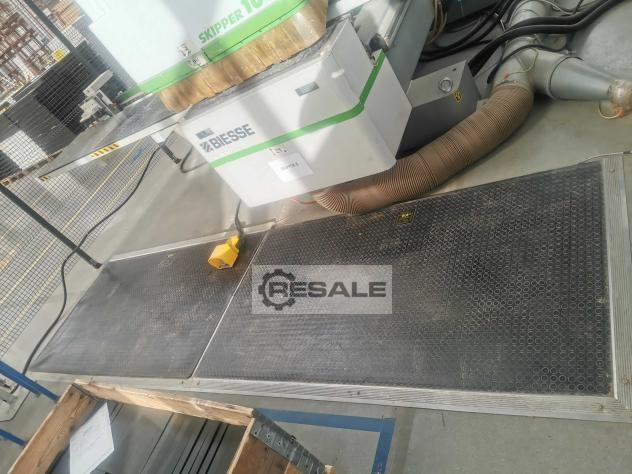

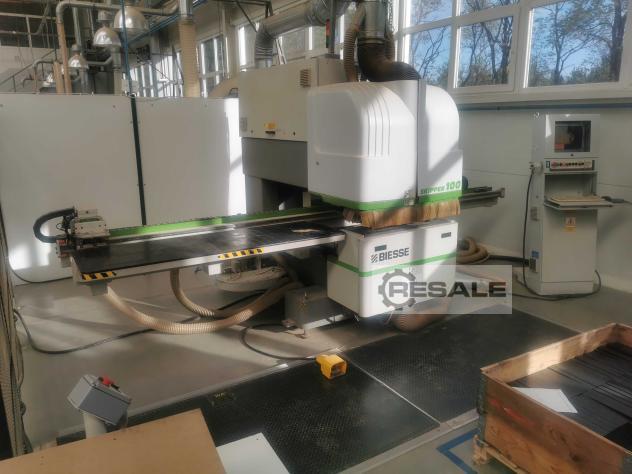

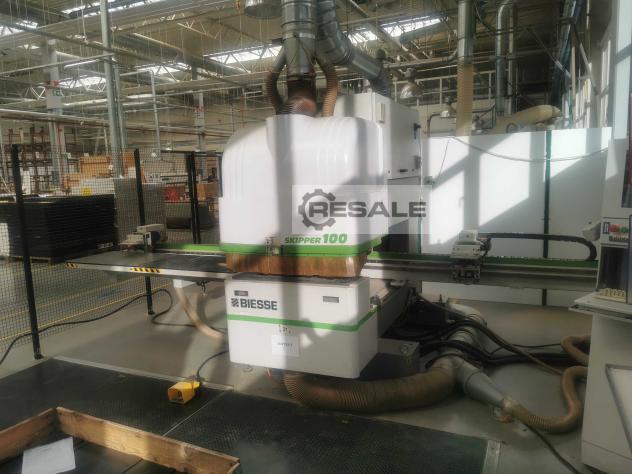

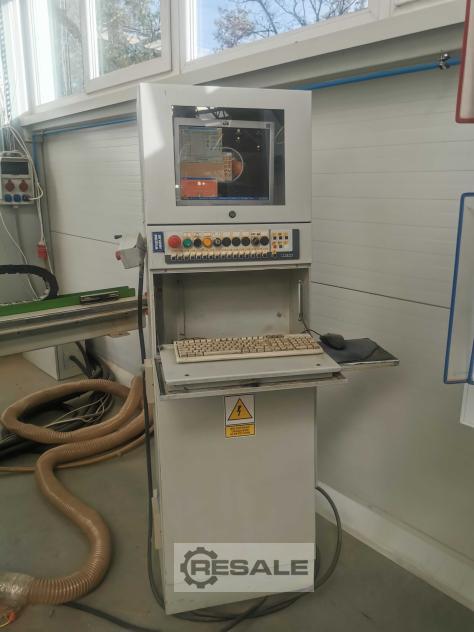

I sell a double-sided CNC machining center Biesse Skipper 100 Year of construction 2006. Very productive and fast. Automatic entry table. Working length 90-3000mm Working width 70-1000mm Working height 8-60mm Configuration per page: Milling head 3.5 kW, 7000-18000 rpm 29+8+2 drill heads 1 groove saw D.150mm direction X Software BiesseWorks. CD included. Condition very good ! Fully functional. Automatic system of central lukrikazion and extraction hoods. Complete with safety barriers, transport elements and CE points. CE certificate and full documentation included Need for repair: 1 pcs. safety carpet
TECHNICAL DATA: Boring spindles: 39 Interaxis between spindles mm: 32 Pneumatic clamping: 4 Total connection KW: 4,6
Biesse Italy, Rover 22 CNC Machining Center Built in 2001 SN 07498 Workspace 4 axes X-axis 3060 mm Y-axis 1080 mm Z-axis 155 mm 6 consoles with 18 vaccum suction holder 4 pneumatic bakelite rods for lifting the plate Vertical electric spindle 7.5 kW with automatic tool change, ISO 30 cone Automatic tool change 7 positions on the working head Drill head with 20 spindles arranged as follows: 7 vertical in X-axis 7 permeable to Y-axis 4 horizontal in X-axis 2 horizontal in Y-axis Groove saw 120mm Safety tread mats 110 m3 / h vacuum pump CE marked Weight 3500 Kg Technical information subject to reservation
Machine Size 2800 x 1940 x 2000mm Min. Size of machined panel 200 x 35 x 8mm Max. size of machined panel 3200 x 900 x 60mm
Working area 2500x900x70 mm Software BIESSEWORKS Machine control PC control Rotation speed max rpm 18000 Number of Horizontal spindles 10 With Grooving spindle
BIESSE - Multi-spindle drilling machine Model BEAVER Year 1982 Manufacture Biesse S.p.A Italy S/N 312/82 Technical data 1 horizontal drilling unit, 21 spindles 2 vertical drilling units, 2x10 spindles, pitch 32 mm horizontal Drilling motor 2.2 kW Vertical drill motor 2 x 1.5 kW Spindle speed 2800 rpm Blade dimensions 10x1.5 mm Operating pressure 0> 6 MPa 7 pcs. pneumatic answers with kSsi control levers Weight 865 kg L x W X H 280cm x 150cm x 150cm
Dowel drilling and drive-in machine Biesse type F/S Technical data: • Drill head: 21 spindles • Glue guns: 6
Working size X 3000 ,Y 1000 mm Thickness 60 mm Vertical Boring spindle 29 Horizontal boring spindles in X 8 Horizontal boring spindle in Y 2
Technical description: -Trimming unit -Milling unit -Fine trimming unit -Scraper -Buffing unit
This 5-axis BIESSE ROVER C 9.65 was manufactured in 2013, featuring a large table size of 8190mm x 1800mm x 250mm, ideal for diverse and complex woodworking tasks. If you are looking to get high-quality milling capabilities, consider the BIESSE ROVER C 9.65 machine we have for sale. Contact us for more information.
This BIESSE ROVER A was manufactured in 2007. A used CNC Wood Machining Centre featuring a robust 7 kW electrospindle, versatile BH 21L drilling head, and a turret tool magazine with 10 places. It includes a vacuum system with a 90 m3/h pump and auxiliary support, enhancing operational efficiency. Ideal for detailed woodworking tasks. Contact us for more information about this machine.
CNC controlled edging machine serves to edge curved and shaped panels Panel thicnkess: 16 - 50 mm. Edge thickness: 0,8 - 3 mm. Dimensions: min 400 x 400 mm, max 1800 x 1800 mm 650 x 2500 mm unit 1: glue roller with edge coil magazine Glue pot with 3 l capacity. Unit 2: end trimming motor motor 0,8kW Unit 3: Trimming unit motor 2 x 2.2kW
This Biesse WINDOW PRODUCTION LINE WEINIG / BIESSE was manufactured in 2007. It features a comprehensive system including a Weinig UC Matric and a Biesse WinLine One, capable of operating independently. The setup includes multiple spindles, a sanding machine, and a label printer, supporting part lengths up to 4500 mm. Ideal for advanced window production processes. Contact us for more information about this machine.
This 3-axis BIESSE BREMA EKO 2.1 drilling machine was manufactured in 2017. It features a tool changer with 8 positions, a milling unit of 5.5 kW, and a drilling unit with 23 tools. The working table includes a counter-pressure system and pliers with a thickness measuring system. Ideal for handling panel sizes up to 2600 mm in length and 900 mm in width, the BIESSE BREMA EKO 2.1 represents a robust addition to any workshop. Contact us for further details.
This 3-axis BIESSE SKIPPER 100 CNC processing centre was manufactured in 2009. Ideal for versatile CNC machining, it offers robust construction and precision. Consider the opportunity to buy this BIESSE SKIPPER 100 CNC processing centre. Contact us for more information.
This 4-axis BIESSE Rover C6 was manufactured in 2011. Ideal for diverse woodworking tasks, it offers precision and versatility. Consider the opportunity to buy this BIESSE Rover C6 CNC Wood Machining Centre. Contact us for more information.
Manufacturer: Biesse Model: C6.50 WMS Year of Manufacture: 2009 Type of Machine: Machining center with automatic loading Working Field: - X-axis: 6400 mm - Y-axis: 1650 mm - Z-axis: 350 mm Drilling Head: - Vertical spindles: 16 - Horizontal spindles: 6 (X and Y directions) - Integrated grooving saw on X-axis Electrospindle: - 1x HSK F63, 13.2 kW, air-cooled - 0–24,000 RPM Tool Changer: - Rotary 16-position tool changer Worktable: - ATS (Advanced Table Setting) with manual positioning pods and rails Control System: - NC 500 / XP600 with BiesseWorks software Safety: - Full perimeter safety bumpers with sensors Vacuum System: - High-capacity vacuum pump for strong hold-down Find more here - / Contact us at -
Manufacturer: Biesse Model: ROVER A FT 1224 CNC Year of Manufacture: 2021 Type of Machine: Numerically Controlled Machining Centre Operating hours: 1238 h Spindle / 42 h Drill heads Weight: 350 kg Power Supply Voltage: 400 VAC Full Load Current: 53 A Number of Phases: 3 Power: 31.20 kW Frequency: 50 Hz Short Circuit Rating: 10 kA RMS Sym Find more here - / Contact us at -
Manufacturer: Biesse , Type: Stream B1 S3, Year: 2005, Control: NC 1600, Min-max edge material mm: 20, Work piece width min-max mm: 65, Min.-max. workpiece length in mm: 150, Min.-max. workpiece height in mm: 60, Min-max feed m/min: 25, Min.-max. batten magazine mm: 20, Bevel milling: yes, radius milling: yes, Radius scraper: yes, Buffing unit: yes, Year :2005
Manufacturer: Biesse , Type: Skipper 100, Year: 2005, Online connection: möglich, Machining stations: 2, Work piece width min-max mm: 150-1000, Work piece length min-max mm: 250-3000, Work piece thickness min-max mm: 10-60, 3 axis control: yes, Vertical drilling station from below: 1, Vertical drilling station from above: 1, Double part drilling: yes, Milling spindles vertical: 2, Power kW 2: ca.4, RPM min-max 2: 1800-24000, Vertical drills-X: 13 von unten und oben, Drill vertical Y: 5 von unten und oben, Horizontal drills-X: 4, Drill horizontal Y: 2, Year :2005
Manufacturer: Biesse, Year: 2014, Control: Biesse Works, Work piece width min-max mm: 100 - 1.000, Work piece length min-max mm: 90 - 2.500, Work piece thickness min-max mm: 8 - 60, 3 axis control: yes, Vertical drilling station from below: 1, Vertical drilling station from above: 1, Drilling heads overall: 2, Number of milling spindles: 2, Milling spindles horizontal: 1, Power kW 1: 3,5, RPM min-max 1: 7.000 - 15.000, Vertical drills-X: 2 x 13, Drill vertical Y: 2 x 5, Horizontal drills-X: 2 x 2, Year :2014
Manufacturer: Biesse, Type: Steuerungkarte, Model: für Biesse Technologic,
Manufacturer: Biesse Selco, Type: EBT 120, Year: 2008, Bench top saw: 4400x2200, Work piece length min-max mm: 4400, Work piece width min-max mm: 2200, Saw blade protrusion: 122, Vorschub Sägewagen : 1-150, Min-max feed programming slider m/min: 100, Saw Blade Diameter mm: 430, Main motor kW: 15, Feeding speed continous adjustable: yes, Scoring Aggregate : 2,2 kW, Work piece length min-max mm: 4400, Work piece width min-max mm: 2200, Feeding speed continous adjustable: yes, Year :2008
Manufacturer: Biesse, Type: Tornado S 1300, Year: 1998, Control: Progrann, Work piece length max mm: 3000, Work piece length min mm: 300, Werkstückbreite max mm: 1300, Number of stacks: 2, Taktleistung ca.: 12, Compressed air bar: 6, Total power kW: 20, Number of sucking lines: 2, Feeding speed max m/min: 25, Feeding speed continous adjustable: yes, Erection in a pit: no, Wight approx. kg: 6000, Year :1998
Manufacturer: Biesse, Type: Arrow ATS BAZ 3, Year: 2003, Control: Biesse, Working range X: 3000, Working range Y-axis: 1500, C axis: no, Pendulum processing: yes, Number of milling spindles: 0, Number of tool changers: 1, Number of tools per tool-magazine: 8, Vertical drills-X: 20, Drill vertical Y: 15, Horizontal drills-X: 4, Drill horizontal Y: 2, Traverse table: yes, 2 station allocation: yes, Saw unit: yes, Year :2003
Manufacturer: Biesse Drehstation läng auf Quer, Type: RBO GP 90, Year: 1998, Angular transfer: yes, Turning station: yes, Working length max mm: 3000, Working lenght min mm: 250, Working widht max mm: 1300, Feeding speed max m/min: 50, Feeding speed min m/min: 10, Feeding speed continous adjustable: yes, Headroom adjustable: yes, Roller width in mm: 3000, roller diameter mm: 80, Recharging length mm: ca.6000, Working hight mm: 950, Engine power kW: 3, Wight approx. kg: 950, FREE TEXT: Ausrichtlineal querübergabe, Year :1998
Manufacturer: Biesse Quer auf Längs, Type: RBO GP S 88, Year: 1998, Angular transfer: yes, Turning station: yes, Working length max mm: 3000, Working lenght min mm: 250, Working widht max mm: 1300, Feeding speed max m/min: 10, Feeding speed min m/min: 50, Feeding speed continous adjustable: yes, Headroom adjustable: yes, Roller width in mm: 3000, roller diameter mm: 80, Recharging length mm: ca.6000, Engine power kW: 3, Wight approx. kg: 950, FREE TEXT: Rechtsmaschine Anschlaglineal Rechts, Year :1998
Manufacturer: Biesse, Type: RBO GP 90, Year: 2002, Angular transfer: yes, Working length max mm: 3000, Working lenght min mm: 2800, Working widht max mm: 1300, Feeding speed max m/min: 10-50, Feeding speed continous adjustable: yes, Headroom adjustable: yes, Roller width in mm: 3000/1300, roller diameter mm: 80, Engine power kW: 3,55, Wight approx. kg: 800, Year :2002
Manufacturer: Biesse Längs auf Quer, Type: RBO GP 90, Year: 1996, Angular transfer: yes, Turning station: yes, Working length max mm: 3000, Working lenght min mm: 250, Working widht max mm: 1300, Feeding speed max m/min: 50, Feeding speed min m/min: 10, Feeding speed continous adjustable: yes, Headroom adjustable: yes, Roller width in mm: ca.3000, roller diameter mm: 80, Recharging length mm: ca.6000, Working hight mm: 950, Engine power kW: 2,5, Wight approx. kg: 950, Year :1996
Manufacturer: Biesse, Type: Selco EB 108, Year: 2008, Program: Selco Optiplaning, Optimisation: Selco Osi Plus, Max plate format mm: 4200 X 2200, Saw blade protrusion: 107, Cutting lenght mm: 4200, Working hight mm: 95, Vorschub Sägewagen : 100, Network-capable: yes, Angle pressure fixture: yes, Saw Blade Diameter mm: 400, Säge verstellbar über Steuerung: yes, Number of clamping tools: 9, Main motor kW: 13,5, Feeding speed continous adjustable: yes, Feeding from front side: yes, Feeding speed continous adjustable: yes, Year :2008
