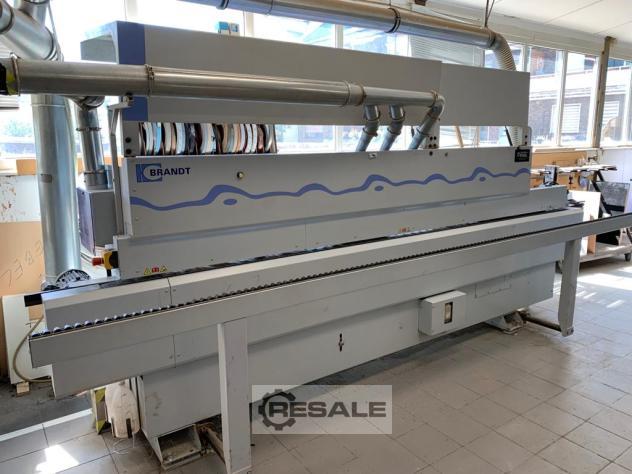

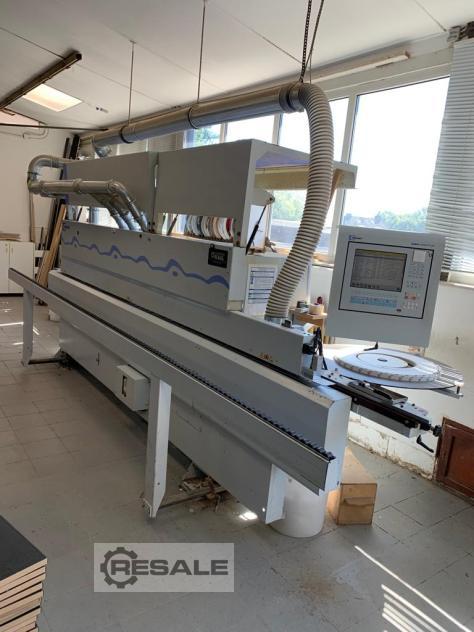

Edge gluing machines BRANDT OPTIMAT KDF430C

Equipment:
- Quick-change gluing part for hot-melt adhesive
-Auto. Edge magazine with roller plate
- Pressure zone with pneum. pressurized pressure roller and 2 free-running holding pressure rollers
- Power Control PC 20+ control
- Adjustable inlet ruler
- Joining milling unit 2 x 2.2 kW
- pneum. Adjustment caps, scraper, program adjustment side strop rollers and pneum. 2-point adjustment vertical sensing rollers
- Cross-cut unit 2 x 0.18 kW
- Milling unit 2 x 0.55 kW
- Shape milling unit 1 x 0.35 kW
- Scraper unit for PVC edging
- Surface puller blade glue joint
- Detergent specification workpiece
- Buffing unit

Specifications
Edge thickness 0.4 - 8 mm
Roll separating max. 3 x 45 mm
or 0.8 x 65 mm
Workpiece thickness 8 - 60 mm
Feed max. approx. 11 m/min.
Electrical 400 V - 3 Ph. - 50 Hz
Connected load approx. 10.5 kW
Pneumatic connection 6 bar
Overall length 4,780 mm
seller offer No. resale -04250046
