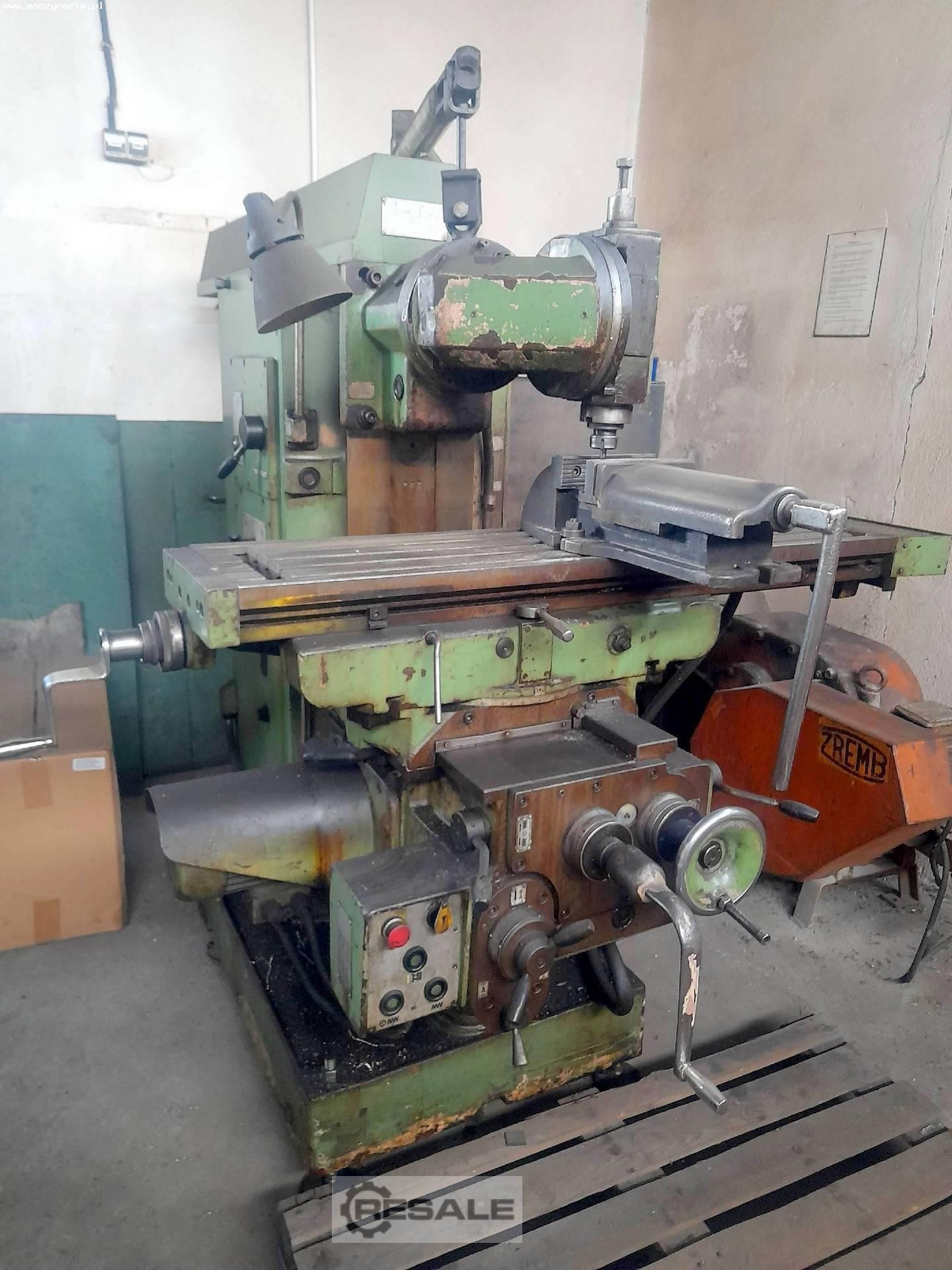

JAFO FWF 32 universal milling machine was manufactured in 1989 in
Poland by Jarocińska Fabryka Obrabiarek JAFO S.A.. The machine,
distinguished by its high functionality, versatility and reliability,
is used for precision machining of workpieces. The stable design made
of high-quality cast iron has, among others, an pull-out beam and a
table with a large working area. The vertical torsion spindle used can
work with a wide range of modern tools, making the machine the ideal
choice for unit and batch production. The JAFO FWF32 vertical milling
machine weighs 2280 kg.
Technical data of the JAFO FWF 32 milling machine
- work table surface (L x W): 1300 x 320 mm
- distance between spindle end and work table: 430 mm
- vertical torsion spindle
- horizontal spindle
- spindle taper: ISO 40
- pull-out beam
- arm for removing vertical spindle
- installed power: 7,1 kW
- power supply: 3x 380 V; 50 Hz
- weight of the JAFO FWF 32 machine: 2280 kg
Poland
