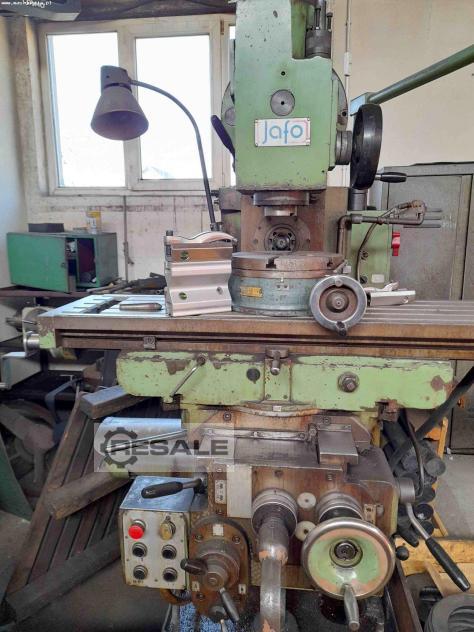

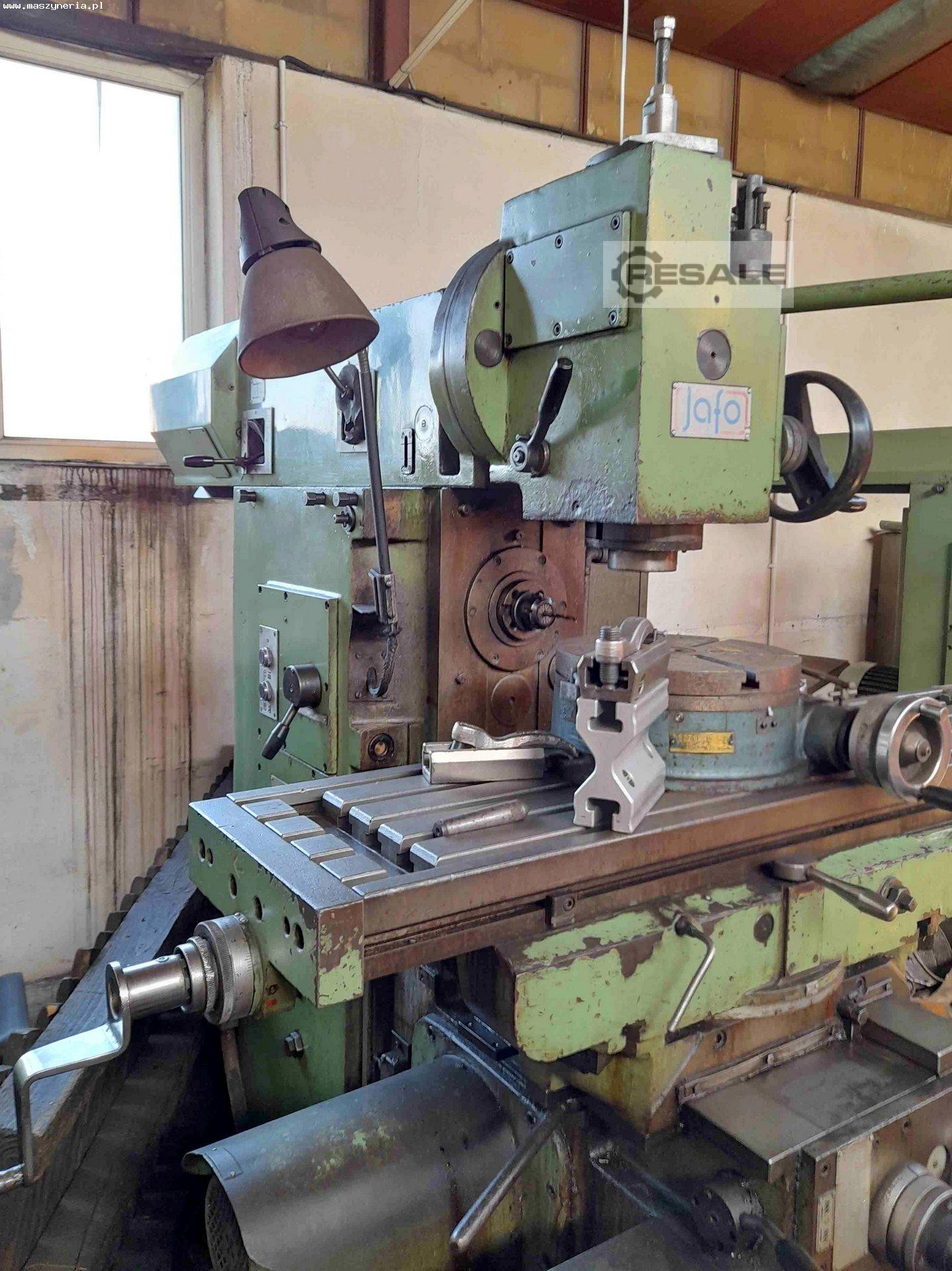

JAFO FWF 32J universal milling machine was produced in 1990 in Poland
by Jarocińska Fabryka Obrabiarek JAFO S.A.. The machine designed for
precision machining of workpieces is characterised by high
functionality, versatility and reliability. The machine body, built
from high quality cast iron, is equipped with, among others, a
pull-out beam with its own drive and a table with a large working
area. The reliable vertical torsion spindle works with a range of
modern tools, making the machine the ideal choice for unit and batch
production. The JAFO FWF32J vertical milling machine weighs 2800
kg.
Technical data of the JAFO FWF 32J milling machine
- feed in the X/Y/Z axis: 900/300/450 mm
- work table surface (L x W): 1250 x 315 mm
- vertical torsion spindle
- horizontal spindle
- spindle taper: ISO 40
- pull-out beam with drive
- workplace illumination
- installed power: 12,5 kW
- power supply: 3x 380 V; 50 Hz
- weight of the JAFO FWF 32J machine: 2800 kg
Poland
