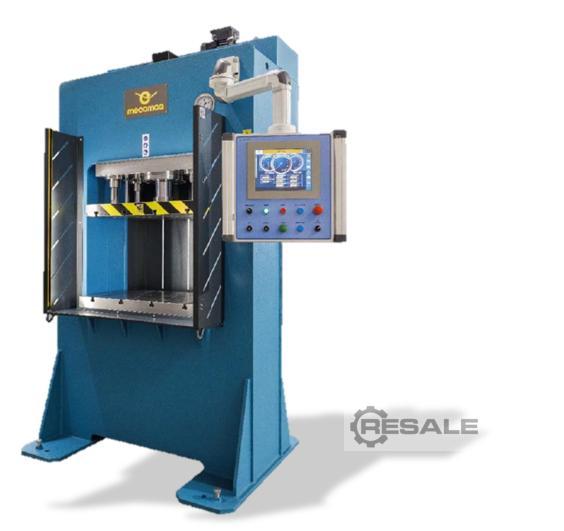

Double Column Presses MECAMAQ DM100R-5393

Technical data PDM100R-5393
Power [tm] 100
DIMENSIONS OF THE BOTTOM PLATE [mm] 900x600
DIMENSIONS OF THE UPPER PLATE [mm] 850x550
GUIDE COLUMNS (x4) [Ø mm] 50
WORKING HEIGHT [mm] 950
MAX. APERTURE [mm] 600
STROKE [mm] 420
FREEWHEEL SPEED [mm/s] 50-230
WORKING SPEED [mm/s] 2-15
WEIGHT [kg] 3000

SERVO POWER – PDM100R
The new SERVO hydraulic units from Bosch
Rexroth are designed to increase productivity
and reduce energy consumption by up to 80%
at a standstill, tool change and between the
cycles.
Increased efficiency in operation!
EQUIPMENT
- Proportional p/Q control with SvP5020 from
Bosch Rexroth
- Adjustable speed values on PLC.
- AOPD photoelectric sensor technology
- LCD display 12
- Configurable working parameters on PLC.
- 50 pre-saved programs available on PLC.
- Pre-filled valves for fast speeds
- Maintenance-free bronze graphite bushings.
- Simplified hydraulic unit to reduce
Maintenance.
