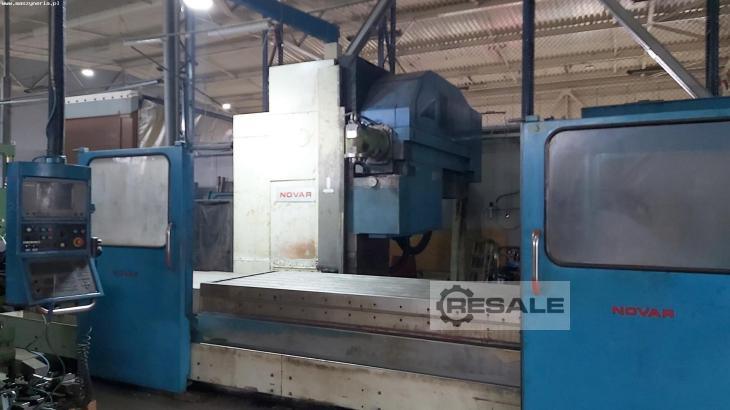

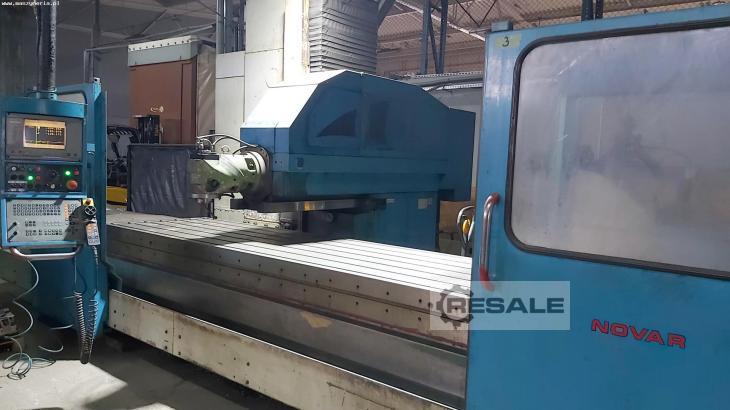

CNC Bed Milling Machines NOVAR ACTIVE 4000

NOVAR ACTIVE 4000 CNC milling machine built in 2002 in Italy is the perfect choice for even the most intensive production challenges. The machine allows for efficient machining of large-sized workpieces with a maximum weight of 10 tonnes with reliable components in the form of cutting tools and a high-speed spindle. The installed HEIDENHAIN TNC 426M CNC control additionally guarantees seamless operation of the machine and utilisation of its full potential and capabilities. The NOVAR ACTIVE CNC bed milling machine has been continuously serviced and has new bearings on the spindle. The total weight of the machine is 27000 kg.

Technical parameters of the NOVAR ACTIVE 4000 milling machine

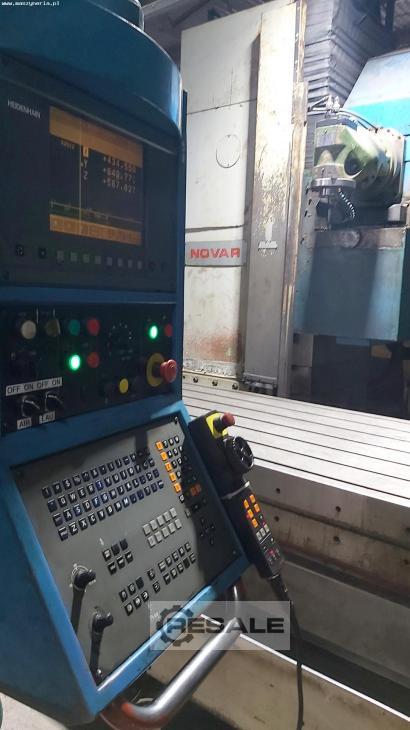

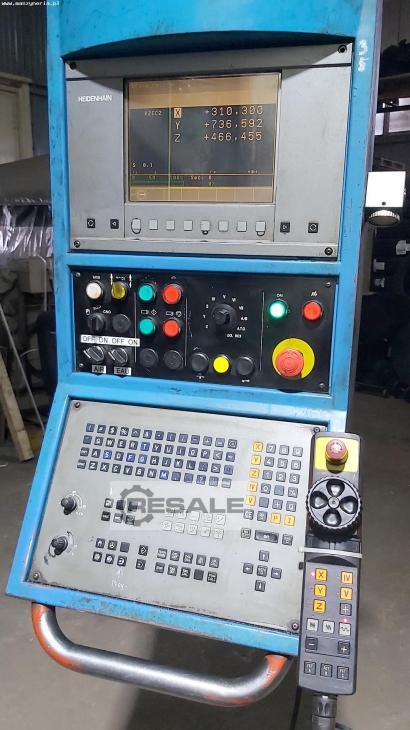

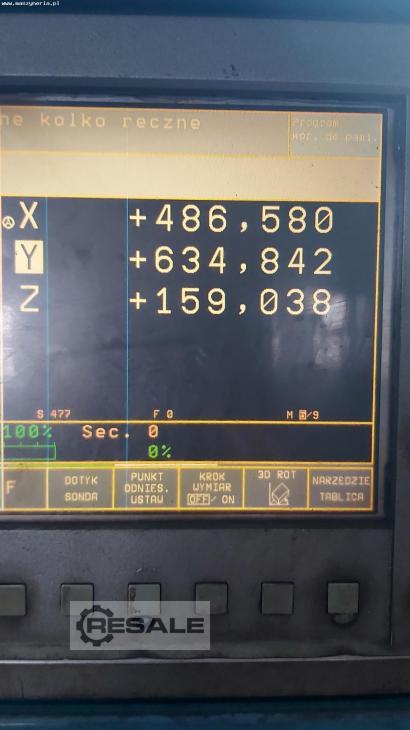

- CNC control: HEIDENHAIN TNC 426M
- feeds in the X/Y/Z axis: 3500/1100/1400 mm
- rapid traverse in the X/Y/Z axis: 8000/10000/10000 mm/min

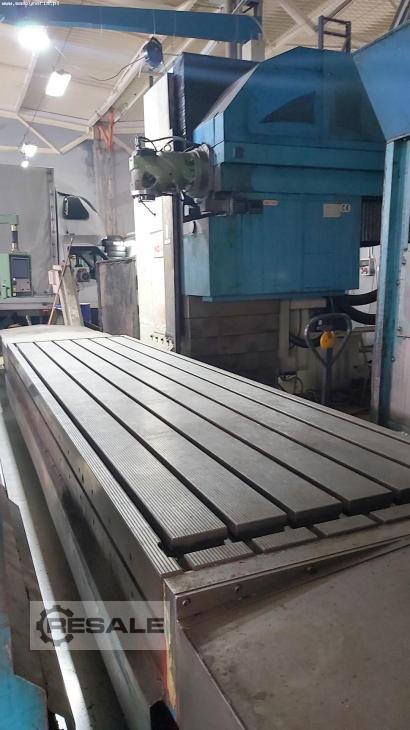

- work table surface (L x W): 4000 x 1000 mm
- maximum workpiece weight: 10000 kg
- maximum spindle rotational speed: 3000 rpm
- minimum spindle rotational speed: 10 rpm
- spindle motor power: 22 kW
- connection power: 55 kW
- power supply: 400 V; 50 Hz
- weight of machine: 27000 kg
seller offer No. resale 162684343
