Product description (Item no. KAR251)

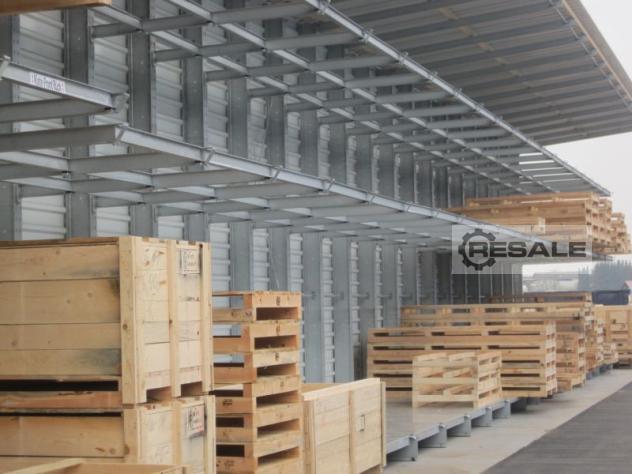

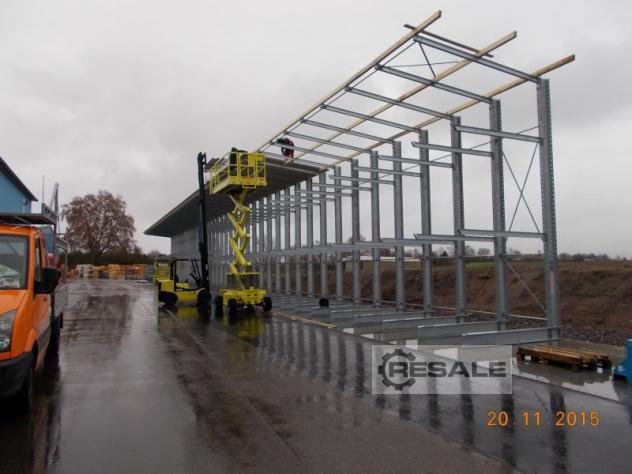

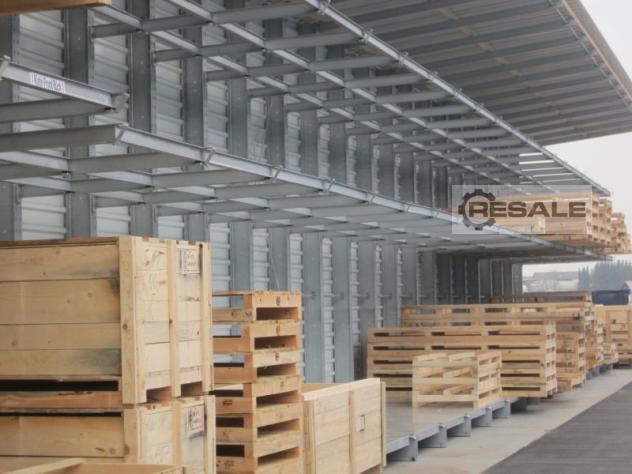

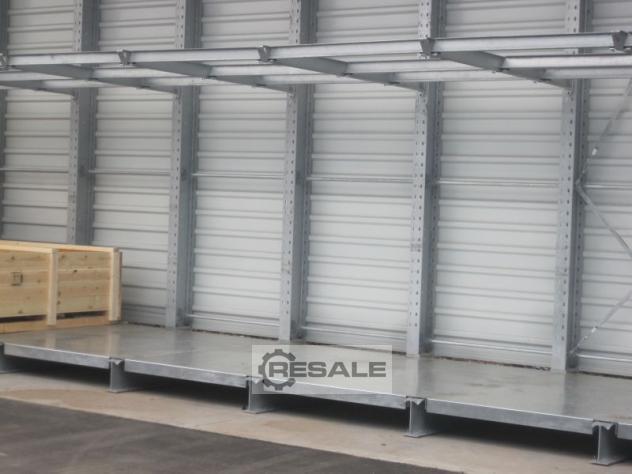

1 covered cantilever racking system
with canopy and rear wall
as well as available drainage
Total length: approx. 83 linear meters.
Make: OHRA
System: Cantilever arm 60
one-sided design
Year of Make: 2015
galvanized version
50 Pieces Stand
Stand height: 6,000 (5,740 + 273) mm
50 Pieces Feet
Foot length: 2,800 mm
Profile: 273 x 136 mm
Column load per side: 1,500 kg/ max.
approx. 100 pieces arms
2 = pieces per stand
Type: K60K
Arm length: 2,500 mm
Profile: 140 x 75 mm
Arm load: 500 kg/ max.
Load centre of gravity: 1,250 mm
Wheelbase: approx. 1,500 mm
with cross bandages
and arm bridges
between the cantilevers
3 pieces per box
Profile: 82 x 47 mm
Length: 1,400 mm
Rising roof arms
Length: 3,500 mm
Profile: 120 x 65 mm
Webs
Length: approx. 1,350 mm
Profile: approx. 82 x 47 mm
Condition:
used
Fully functional
good
dismantled and packed
The wooden beams for the roof construction are no longer available
Part of the sheet metal paneling that comes on the footrest is
bent.
The downspouts and gutter were damaged during transport
A visit is recommended and possible by arrangement. Another
denomination / individual sale is possible.
Conditions:
Pick-up by telephone arrangement from location D-53783 Eitorf.
Please allow for advance.
Shipping is also possible by freight forwarder. The shipping costs are
borne by the recipient. An offer will be made after entering the
postcode.
Germany
53783 Eitorf
