Sorting system OPTIMUS SORTER PROJECTS Optisorter Horizontal

machines for mechanical handling, storage equipment / other storage equipment

Manufacturer: OPTIMUS SORTER PROJECTS

Model:Optisorter Horizontal

Type of machine: Sorting system

item-No.: 162705218

Quantity: 0

Date: 06.06.2025

Year of manufacture: 2013

Location: Land-de Germany Süddeutschland

Price: 99,500 EUR

Sorter for light loads, Optimus, SORTING SYSTEM
OPTISORTER HORIZONTAL, 200 trays, 261 targets - used - :

Price sorter incl. control, continuous roller conveyors and pick by light (without conveyor technology) from location: 99.500.-€ (net), incl. dismantling, packed and loaded!

Price of the existing Transnorm conveyor technology (approx. 170m) incl. scanner and labeller: 15.000.-€ (net) incl. dismantling, packed and loaded!

Manufacturer: Optimus Sorter Projects B.V. (Bowe Group)
Type: OPTISORTER HORIZONTAL
Year of Make: 2013
• UNIQUE PUSH TRAY TECHNOLOGY
• GENTLE SORTING PROCESS
• MODULAR DESIGN
Control: Siemens S7
Layout: OS-680113-264-D01
System capacity: 6000 trays/h
Total length of the system: 53 m
Total width of the system: 14 m
Number of infiltration stations: 1
Width of infiltration station: 2 m
Number of trays: 200 pieces
Usable size on the trays: 450 x 700 mm
Shell spacing: 520 mm
Total number of targets on the sorter: 261 pieces
Number of special purpose targets (overflow, scrap, etc.): 3 pieces
Width of the slide: 680 mm

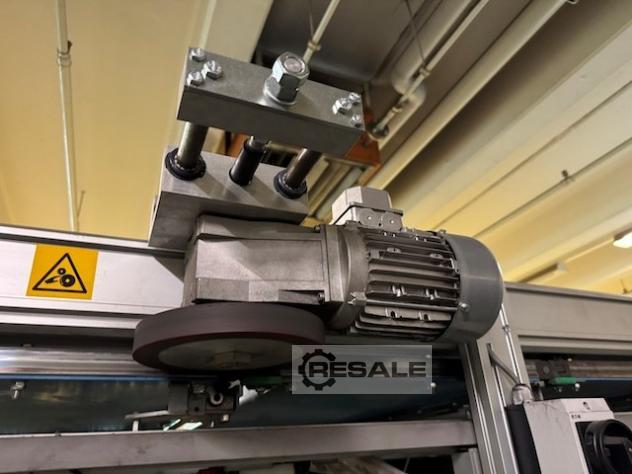

Number of drives: 3 pieces

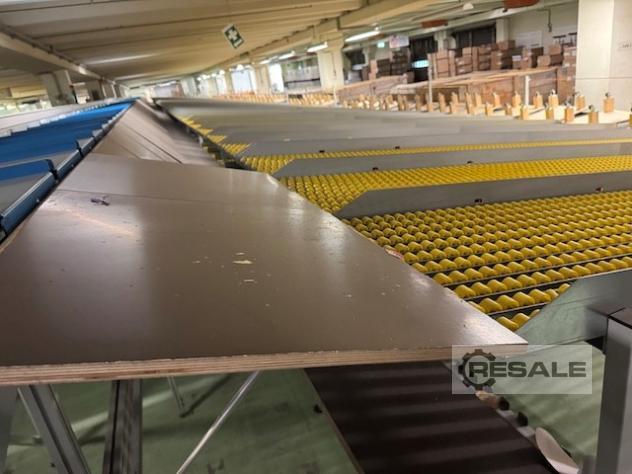

There are two destinations per sorting station, which are sorted into the upper or lower destination roller conveyor by tilting chute.
At the finish roller conveyor there is a Pick by Light system.
Product Dimensions (L/W/H):
Sorter: min: 150/120/10mm
Max: 600/400/200mm
Weight: min: 0.25kg / max.: 5kg
Condition: good
Available now
Location. Southern

Detailed description on request via pdf
