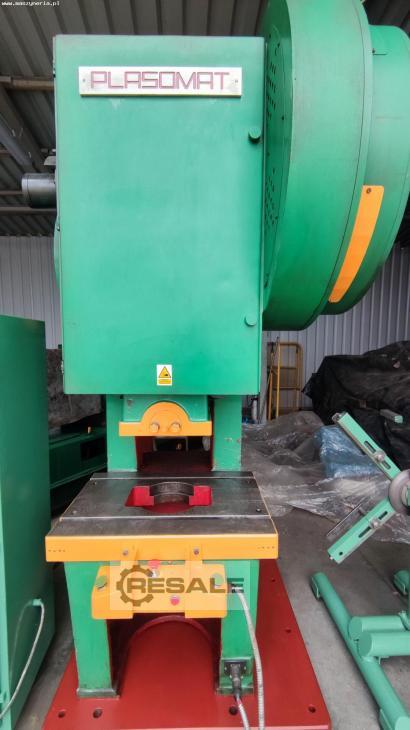

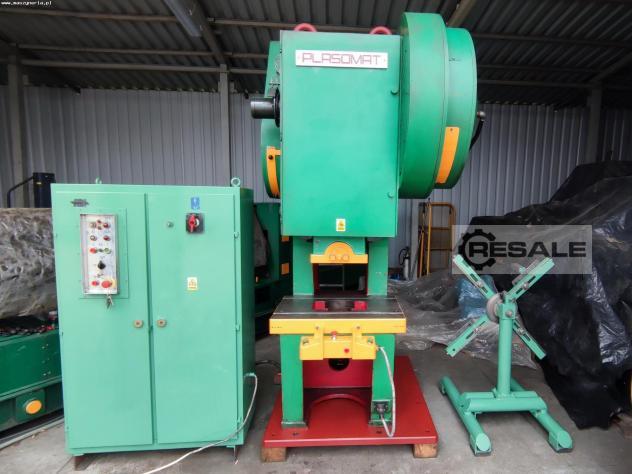

PLASOMAT PMS 63 CP eccentric press was manufactured in Poland. In
order to meet all production requirements, the machine features a
large area slider with the possibility of adjusting the height and
number of strokes in the control cabinet. In addition, a stable,
deformation-resistant monolithic structure combined with a high
pressing force of 63 tonnes ensures the highest accuracy and precision
in machining. All this makes the PMS 63 CP press the ideal choice for
both small batch and high volume production.
Technical specifications of the PLASOMAT PMS 63 CP press
- maximum press force: 63 t (630 kN)

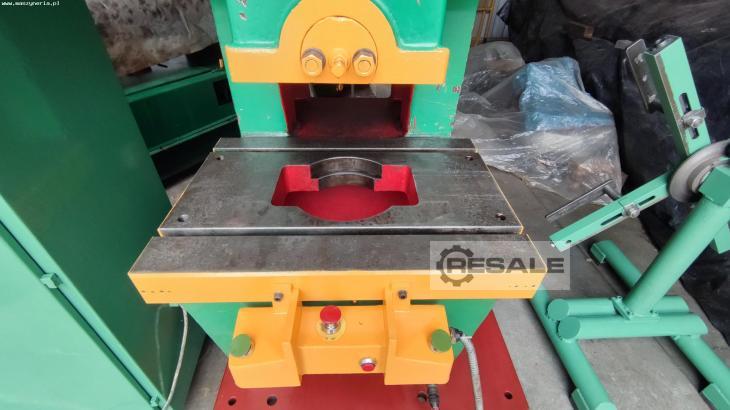

- work table dimensions (L x W): 800 x 560 mm
- number of slider strokes: 65-85/min
- maximum slider stroke: 110 mm
- minimum slider stroke: 8 mm
- slider adjustment: 90 mm
- slider dimensions (L x W): 350 x 315 mm
- reach: 280 mm
- largest distance between slider and work table: 315 mm
- hole diameter in work table: 250/280 mm
- hole diameter in slider: 40 mm
- intermediate table
- foot control
- control cabinet
- motor power: 5.5 kW
- motor rotational speed: 1500 rpm
Poland
