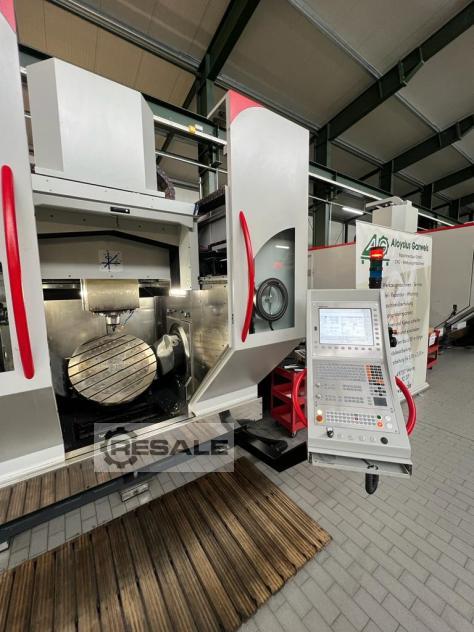

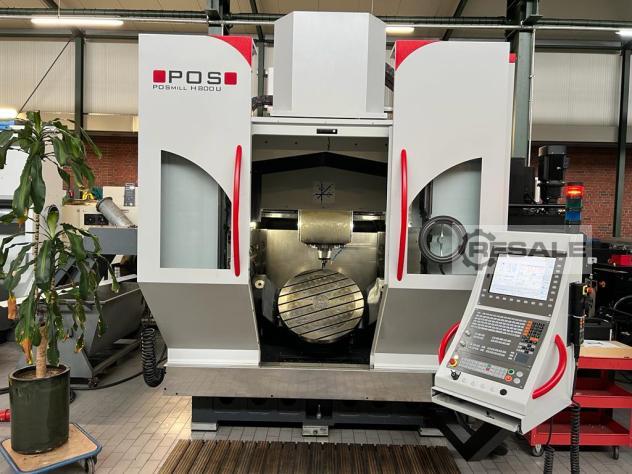

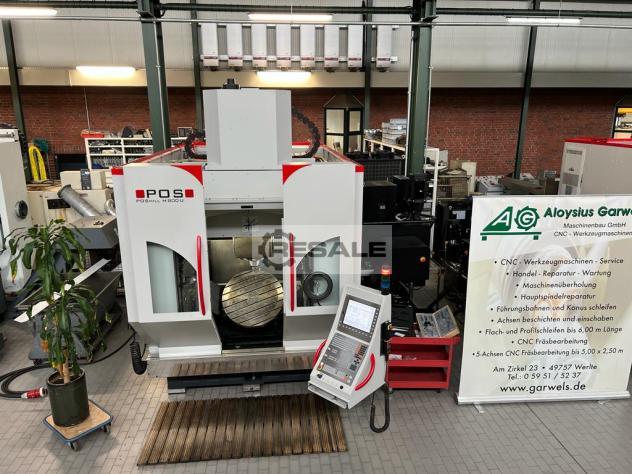

Universal processing centres POS POSMILL H 800 U

Control: HEIDENHAIN ITNC 530
Travel:
X-axis: 670 mm
Y-axis: 830 mm
Z-axis: 600 mm
A +120° to -120°, C 360°
Workspace

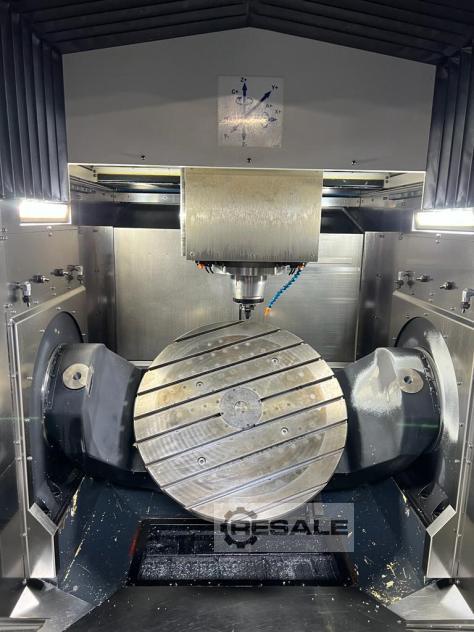

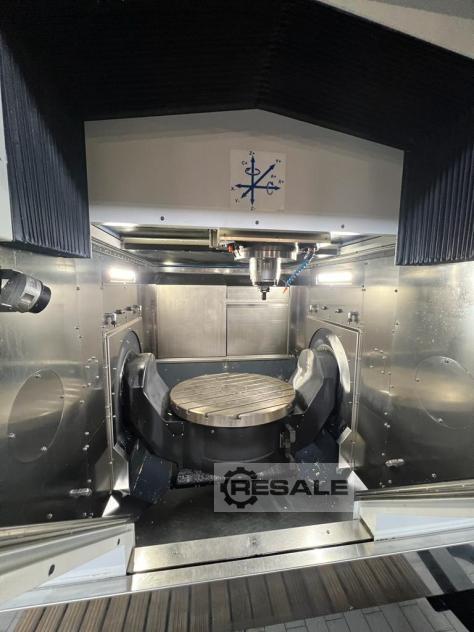

Turntable diameter 800 mm,
9 T-slots,
Table load 1200 kg,
Tool changer
Tool holder: HSK-A 63
96-fold tool changer
Tool length max.: 300 mm
Tool diameter max.: 75 mm
Tool diameter with adjacent empty station max.: 125 mm
Tool weight max.: 7 kg
Tool change time: 3 s
Rapid traverse and feed
Express feed X Y Z 60 m/min, +
max. speed A-axis 50 rpm
C-axis 100 rpm
Acceleration X Y Z max. 7 ms²,
General data
Repeatability/positioning accuracy for new delivery 0.004
mm/0.008 mm (VDI/DGQ 3441)
incl. tool holders with tools on the tool changer,
Oil mist extraction
IKZ
Conveyor
Nominal power 90 kVA
Full load current 125 A
max. current load 200 A
400 V
50 Hz

seller offer No. resale 162684497
