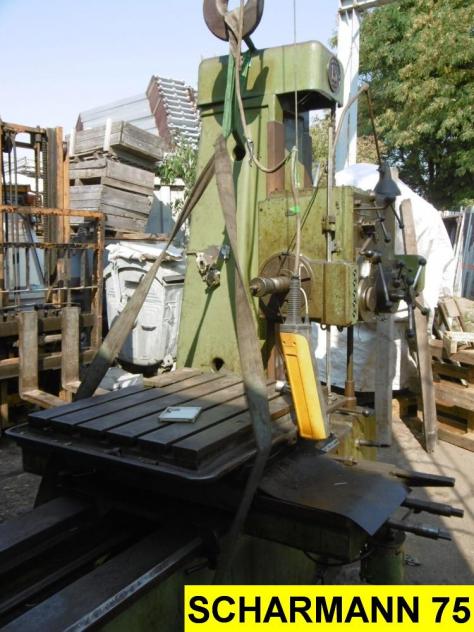

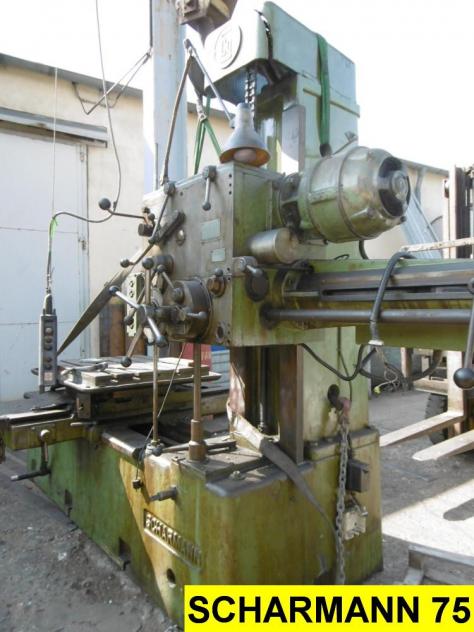

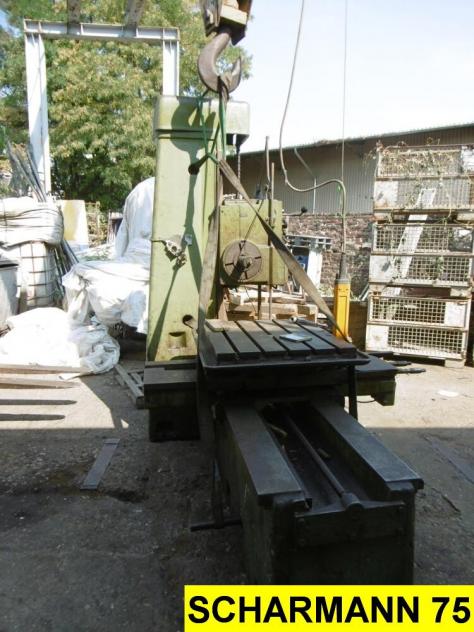

Table Drills SCHARMANN WB 75

metal working machines / boring mills and machining centers / Table Drills

Manufacturer: SCHARMANN

Model:WB 75

Type of machine: Table Drills

item-No.: 126885015

Quantity: 0

Date: 12.07.2023

Year of manufacture: 1960

Location: Land-sk Slovak Republic

Price: 3,000 EUR

Your price suggestion:

Machine in stock:Yes

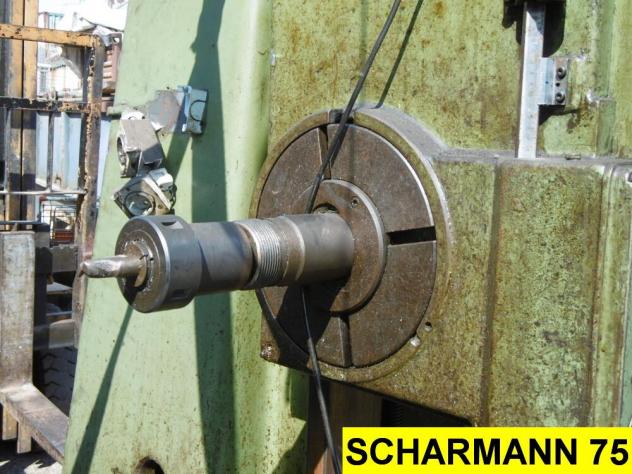

Spindle diameter
75 mm
x trail
1000 mm
y way
1000 mm

z axis
2380 mm
W axis (spindle length)
500 mm

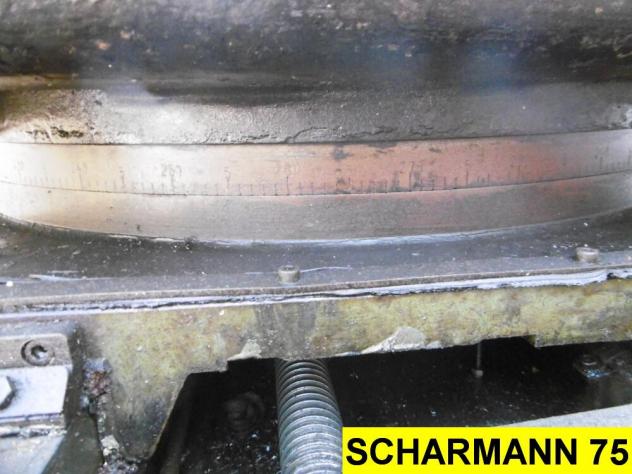

Table:
900 x 710-360° mm
Loading of the round table max.
1100 kg
Output spindle speed
18 x 1400 RPM
Spindle box drive
11/13 kW
Rapid traverse
10 m / min
Weight
CCA 5 t L/B / H
3.8 x 1.8 x 2.6 m
Control
conventional control name
conventional price includes loading on truck
