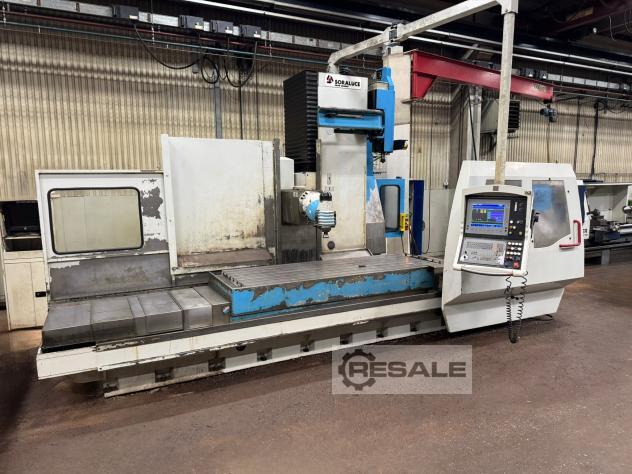

CNC Bed Milling Machines SORALUSE TL-25

Stock number: 3949

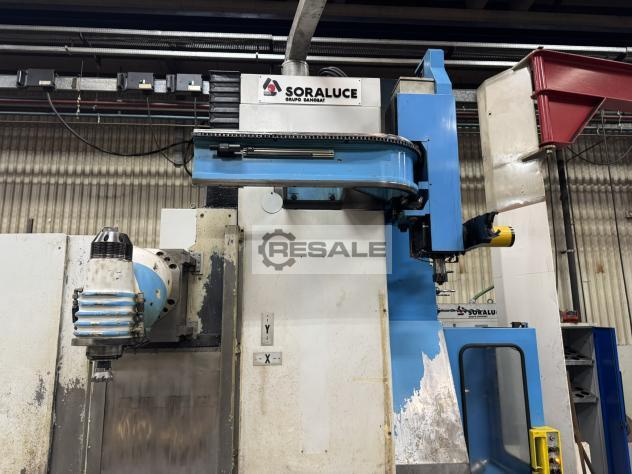

CNC BED MILLING MACHINE
Manufacturer: SORALUSE, Type: TL-25
Machine NO.: 101016, Year of manufacture: 1998

Specifications:

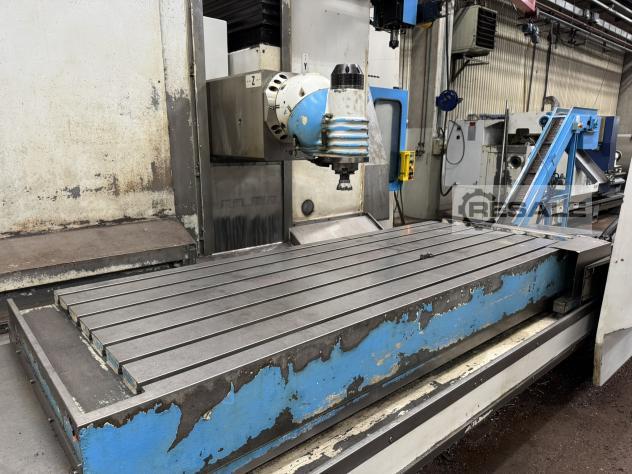

Table size 2860 x 1000 mm
Large table load 7500 kg
Longitudinal movement (X) 2500 mm
Transverse movement (Z) 1000 mm
Vertical movement (Y) 1600 mm
Spindle Taper 50 ISO
Stepless spindle speeds 20-3000 rpm
Spindle motor power 22 Kw
Total power 38 kW

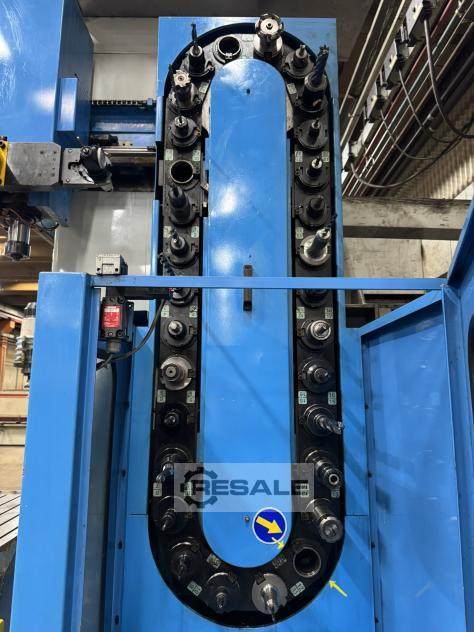

Tool changer 30 stations

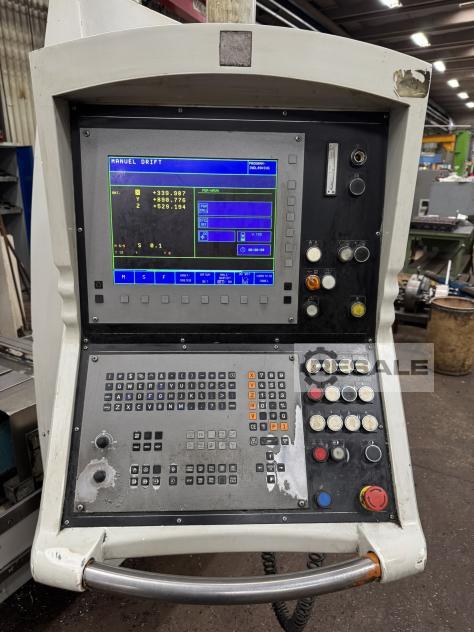

Control Heidenhain TNC 426/430 CB Fabr.

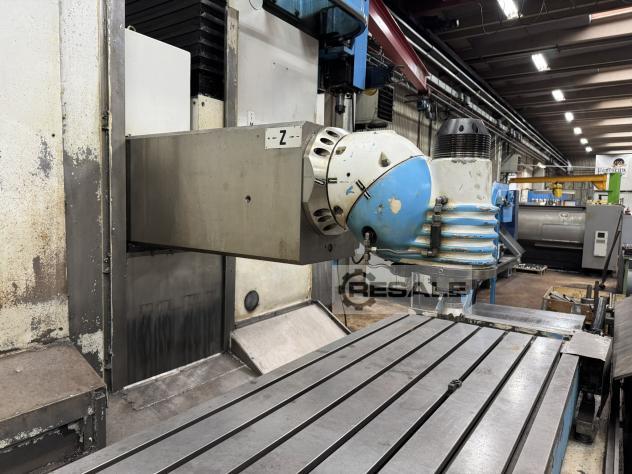

Controlled vertical head 2.5 degrees
Spindle Hours 12272 Hours
Rapid traverse 15 m/min

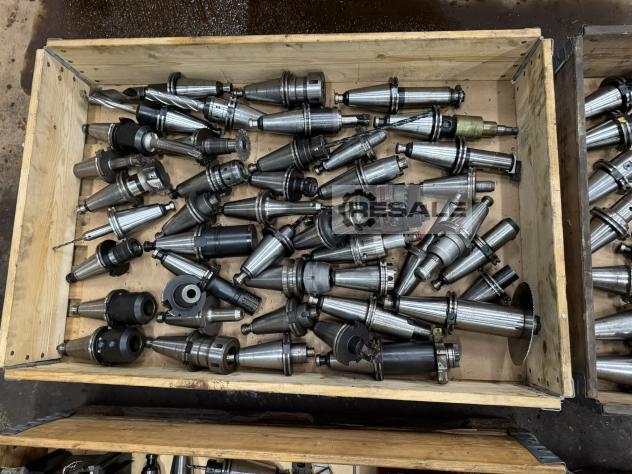

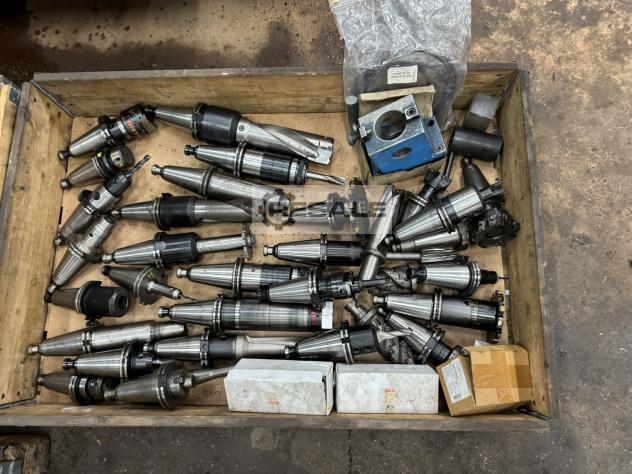

Accessories:
Cooling by spindle
Chip conveyance.
Cooling water system.
Electronic handwheel
Line measuring system
Various accessories.

Length: 9500 mm, Height: 3820 mm, Width: , Weight: Approx 25.000 kg


seller offer No. resale 3949
