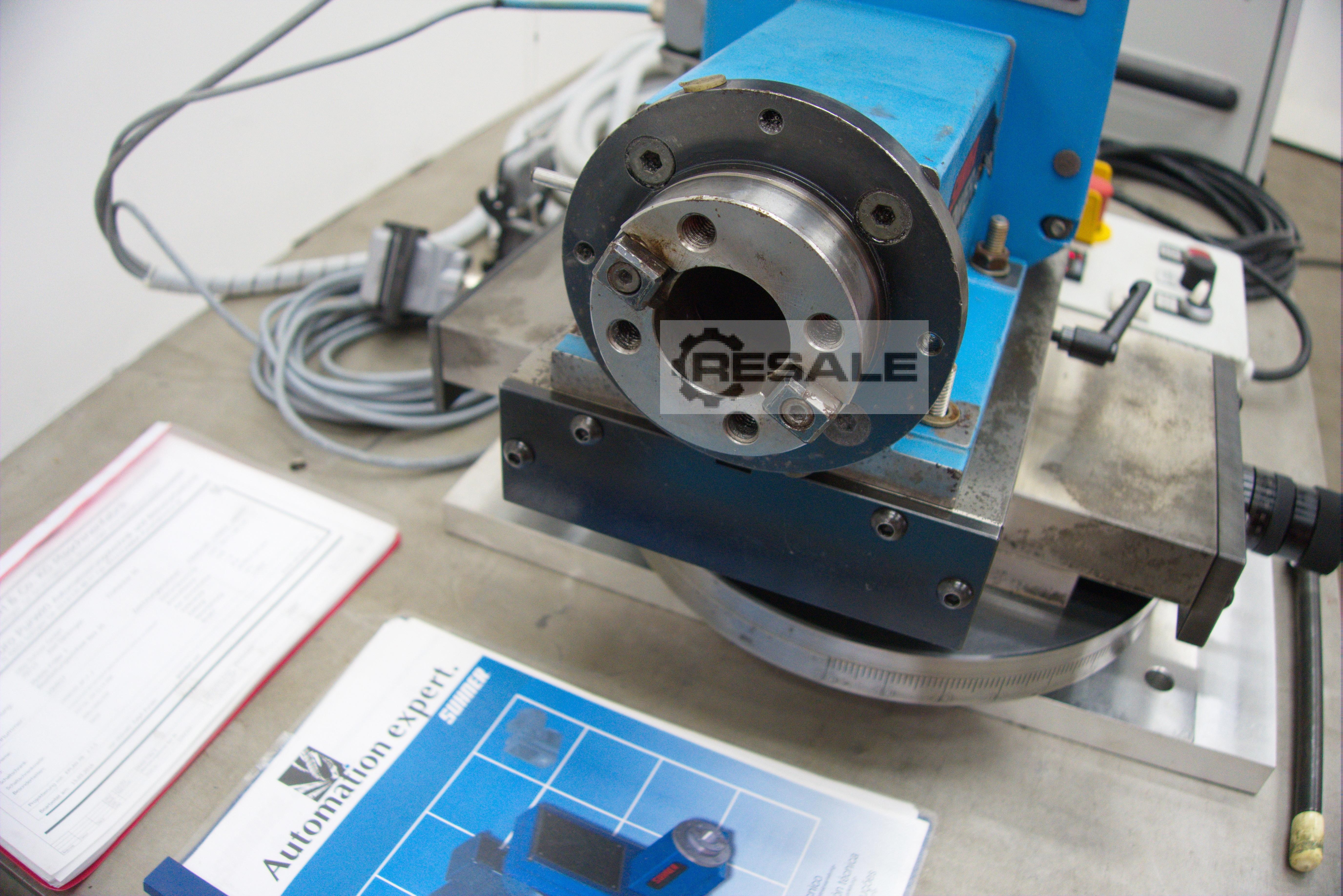

Mobile processing unit SUHNER BEX 35 S

Complete unit with control cabinet and manual control

Tool holder ISO 40

Drilling capacity 35mm in ST 60

Max. torque at the drilling spindle 300 Nm

Concentricity 0.01 mm

Stepless speed control from approx. 200 to 3,350 rpm with speed display

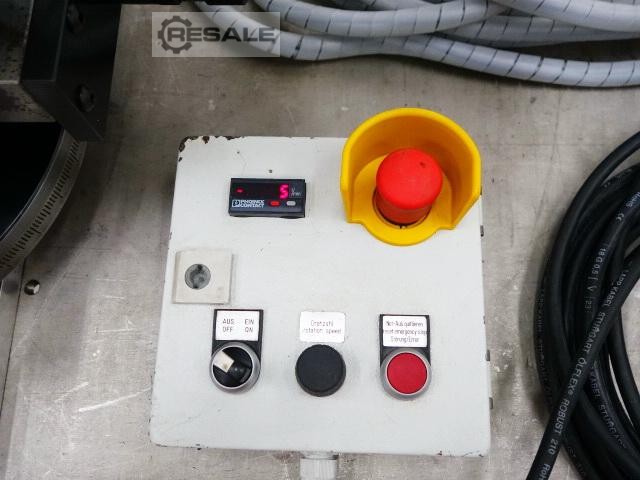

Operation via cable Hand remote control

Precision - Cross Table with Three Axes

Travel X - 200 mm / Y - 200 mm manual - lockable

Swivel range +/- 90°

Electrical values 400 V / 3 KW

Connection CE 32A

Transport of the milling line and the cross table in aluminium transport crates

Transport dimensions on pallet L - 1,200 x W - 950 x H - 1,450 mm

Weight approx. 350 kg

Documentation available
seller offer No. resale 3688
