lacquer machines used for sale

Drying chamber MEYER AB / Fanmet OY 17m3 Year of construction 2007 )2009 installed ) Manufacturer MEYER OY Finland length 3600mm width 2150mm height 2200mm approx. 17m3 electric heating total power 30 kw 18 heating units each with 1667W, 400 V ( length 2360mm ) Air flow for this system is: 3m3 /sec or 10.000m3 /hour 2 fan motors ( 3,6kW+0,37kW ) ATEX Thermostat 0-120C Overheating protection 0-210C ATEX compliant 94/9/EC CE marked

Motorised roller table 19.3000mm year 2007 consisting of: 2 x roller tables 1300x6000mm 1x roller table 1300x4000mm 1 x roller table with longitudinal roller guide 1300x 3300mm Working width 1,300 mm Frame: painted steel frame Castors: 30 mm plastic disc castors, white Roller spacing: approx. 50 mm Stopper: spring-loaded disc stopper Legs: adjustable H-legs, height descending 900>800 mm adjustment +100 mm CE documentation ADDITIONAL: Frequency inverter for speed control

Usefull width: 1300 mmPanel thickness: 3 - 80 mmPanel feed by carpet, variable feedspeed 6-30 m/minCoating roller 55° Shore with variable speed and scraperChrome doctor roller with variable speed and scraperMachine length in the line: 1000 mm

Usefull width: 1300 mmPanel thickness: 3 - 80 mmPanel feed by carpet, variable feedspeed 6-30 m/minCoating roller 55° Shore with variable speed and scraperChrome doctor roller with variable speed and scraperMachine length in the line: 1000 mm

Usefull width: 1350 mm.Max. pass: 6-80 mm.Working height 880-920 mmApplication rollers foam rubber 30° ShoreMembrane pump 4 kWincluding 2 spare rollers ( 1 is new )

Usefull width: 1400 mm.Staining roller out of soft sponge rubberMembrane pump

ROLLER COATER with SINGLE SPREADING-COATING ROLLER- Max working width mm 1300- Lenght of the machine mm 1000 approx- Thickness of the panels (working height): mm 0 - 100- Adjustable feeding speed: m/min 4 - 23- Separate (from the machine s body) electric and command cabinet- Total installed power KW 2.4- Equipped with:- 1°) Dosing unit (Chromium plated Doctor roller diam. mm 174), KW 0.37- 2°) Coating unit (Rubbered spreading roller diam. mm 248) KW 0.75, with a rubbered bottomroller, counter-placed to the top one

Curtain coater for flat pieces2 coating heads, each with a pumpUsefull coating width: 1300 mmWorking heigth: 850 mm.Workpiece transport by interrupted belt 3xlength 3000 mmFeed speed 20 - 120 m/minpower 3,9 kW

Coating system Hymmen CombiCoater ELX-S 1400 with UV dryer. Technical data will follow shortly For self-dismantling and collection.

Infrared drying system Schiele IR dryer (HIR stationary dryer) Including 20 trolleys for quick drying of workpieces on trolleys with infrared radiators and blowers. Temporary special price. Fixed price., Hordes: 20 pcs, length: 7.000 mm, width: 2.500 mm, Technical specifications: See PDF

Working width: 1300mm, workpiece thickness min./max.: 3mm/80mm, workpiece width min./max.: 10mm/1300mm, max. workpiece length: 100mm, workpiece height min./max.: 3mm/120mm, roller application speed: 5m-30m/min, feed: 6m-30m/min. Documentation available. On-site inspection is possible.

A roller coating machine specially designed for UV coating in the wood industry is available. Working width: 1350mm, max. workpiece thickness: 80mm, working height: approx. 980mm, application roller: 1350mm, feed speed: 5m-25m/min, machine dimensions X/Y/Z: approx. 2700mm/1200mm/1800mm, weight: approx. 1500kg. Documentation available. On-site inspection is possible.

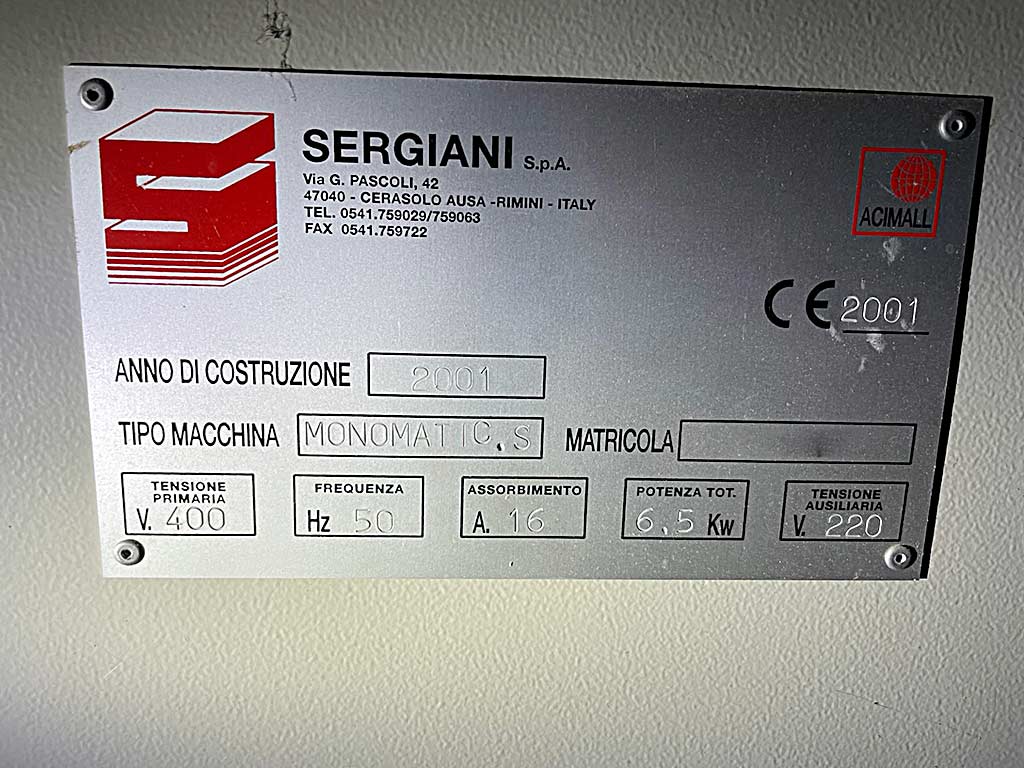

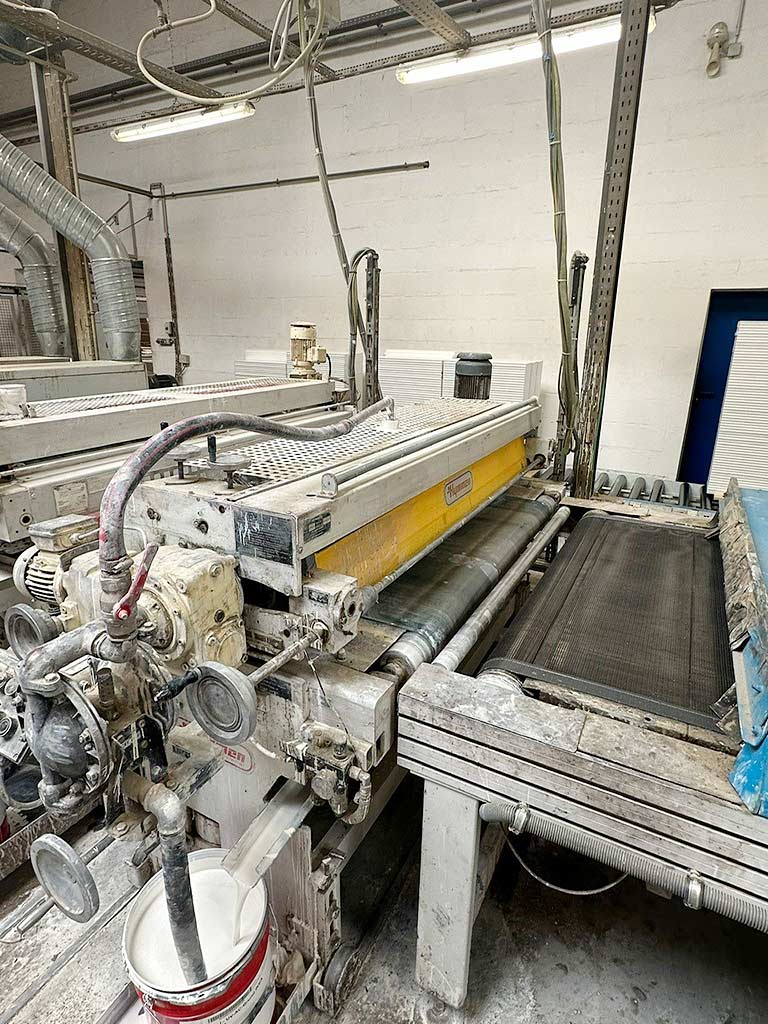

A complete paint shop is available. 1) Sergiani S.p.A. Monomatic S, year of construction: 2001. 2) Finnrose FLT 6, year of construction: 1993. 3,4,5) Three identical Bürkle DAL1-1300 presses, year of construction: 1993. 6) Karl Heesemann FGA 6 EX, year of construction: 1993. 7) Finnrose FLT-4.5, year of construction: 1993. 8) Bürkle DAL2-1300, year of construction: 1985. Hackemack KTR 2040, year of construction: 1996. All machines are part of a paint shop. On-site inspection is possible.

pressure: 3 - 6,5 kg / cm² barrate of flow: 26 l/mindiameter of die - min./max.: -- mmRatio: 73 : 1 rated current: 1,65 KWweight of the machine ca.: 100 kgdimensions of the machine ca.: 730 x 760 x 1200 mmnoise level: 78 dB(A)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Paint mist extraction with supply air system Make Spänex Built in 1995 Paint mist extraction wall Spänex TAW 220 Air volume 6,000 m³/h, motor power 1.35 kW Exhaust pipe diameter 400mm Baffle wall area 2000 mm x 2000 mm Extraction wall depth 800 mm Supply air unit with heating coil Spänex WK 61 for paint room ventilation in cassette design Air flow rate 6,000 m³/h, motor power 2.5 kW Heating medium PWW 90/70 Heat output 77 kW Supply air duct parts Filter Discharge Blanket 1900 mm x 1900 mm x 300 mm Connecting bends, sewer bends Control and regulation cabinet For supply air unit and paint mist extraction

Venjakob Perfect paint shop: - Manufacturer: Venjakob - Year of construction: 2013 - Working width: 1,300mm - Max. part length 6,500mm - In U-shape with angle transfer Composed of: 1. Covering tape, length 3,050mm 2. Free space for a grinding machine (option) 3. Automatic sprayer VEN SPRAY PERFECT, length 5,510mm 4. Evaporation dryer OIR, length 6,000mm 5. VEN DRY AIR JET nozzle dryer, length 4,160mm 6. 180 degree angle transfer, with nozzle dryer 7. Supply air system for angle transfer, 25,000m³/h 8. VEN DRY AIR JET nozzle dryer, length 5,160mm 4 Pieces IR Illuminators 9. VEN DRY AIR JET nozzle dryer, length 5,160mm 4 Pieces IR Illuminators 10. VEN DRY AIR JET nozzle dryer, length 5,160mm 4 Pieces IR Illuminators 11. 3D-UV Dryer, VEN DRY UV, GA + HG 12. Removal area, tape of UV dryer 13. Supply air system hall, 30,000m³/h Further informatio ...

UV dryer Superfici Type TU166-25+2UVM55 Serial No. 4548 Year of construction 1998 Passage width 1500 mm 2 UV lamps Material thickness maximum 110 mm Maximum width of the workpiece 1400 mm Height-adjustable feet Dimensions 2500 mm x 2300 mm x H 1650 Control cabinet dimensions 1000 mm x 850 mm x H 2180 mm

- Manufacturer: Elmag Superfici - Type ETC3/2-24-5500 - Year of construction 2001 - Working width 1,300 mm - Number of pallets 24 pcs. - Max. part height ~70 mm - Clear height between pallets 100 mm - Dimensions: Center Pallet - Center Pallet 3,800 mm - Max. part length 5,200 mm - Number of controllable temperature zones 2 pcs. - Supply air capacity 9,000 m³/h - Heat output max. 2 x 40,000 kcal/46 kW - Max. drying temperature ~ 55 - 60 degrees - with heat exchanger, heating water - Flow direction in U-shape - Inlet side left - Feed infinitely variable 2 - 10 m/min - Suitable for water-based paints - Suitable for solvent coatings - Length 7,400 mm - Width 6,510 mm - Height 5,745 mm - Location, not in stock - Volts, Hz 400 / 50 - Voltage fluctuations max. +/- 5 % - Without control valves and water pumps - Available from March  ...

UV dryer, Cefla UV 2000 - Manufacturer: Cefla/Sorbini - Type UV 2000 M2 / TTE2500 - Year of construction 2007 - Working width 1,300 mm (1,445) mm - Working height 900 + - 40 mm - Operating side on the right - Max. part height 70 mm - Number of tubes from the top 2 pcs. - Tubes straightened 2 pcs. - Suitable for mercury tubes - Suitable for gallium tubes - Tube power max. 120 W/cm - Tube power infinitely adjustable - Bar transport - Rod pitch ~ 115 mm - Length 2,500 mm - Width 2,300 mm - Height 1,500 mm - Volt,Hz 400 /50 - Total electrical connection 86 A / 36.4 kW - Voltage fluctuations max. +/- 5 %

- Manufacturer: Bürkle - Type DAL 1-1300 R - Year of construction approx. 1990 - 1993 - Working width 1300 mm - Machine is overhauled, then very good condition - Working height 870 mm - Part height 3 - 80 mm - Operating side on the right - Paint application roller 50 Shore - Dosing roller hard chrome-plated approx. 174 mm - Rubberized counterpressure cylinder - Belt transport - Length 1050 mm - Feed adjustable via handwheel 6 - 30 m/min - Total connection approx. 2 kW - Weight 3250 kg - With control cabinet - Volts, Hz 400 / 50 - Machine number 4610.17 - Commodity code 8479 8997 - Voltage fluctuations max. +/- 5 % - Images only sample images
