Model
(Manufacturer: FELDER)
Offer fields KF700SP from part-time carpentry in the best condition for sale. The sliding table saw is equipped with a swivelling (0-45°) electrically height-adjustable milling spindle as well as numerous special accessories. Used, Year of Construction 2008 Operating time according to hour meter 430 h (corresponds to 0.07 h/day) Motor power 4 kW direct start with brake and limit switch Circular saw scoring unit with its own motor drive Format sliding table, cutting length 2500 mm Optional extras: Lateral table extension Additional electrical switching point circular saw/scoring unit on the sliding table Electric height adjustment circular saw unit and milling spindle with Powerdrive Circular saw scoring unit with motor 1 hp Degree display of the circular saw/milling spindle swivel in the handwheel Rip fence with digital display Quick-change system for milling spindle ...
Key data: 45 °, 2800 mm, 1200 mm
3 axis control with boom with digital display for inclination Sled with warranty Remaining warranty 4 years
Edge banding machine Felder G480 The following units are available: Cutting, joining, flush milling, corner rounding, scraper blades, surface scraping blades Year of construction 2016 The machine is in top condition, ready for operation. Subject to changes, errors and prior sale ! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system+technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Phone 0041 62 966 18 32 Fax 0041 62 966 21 12

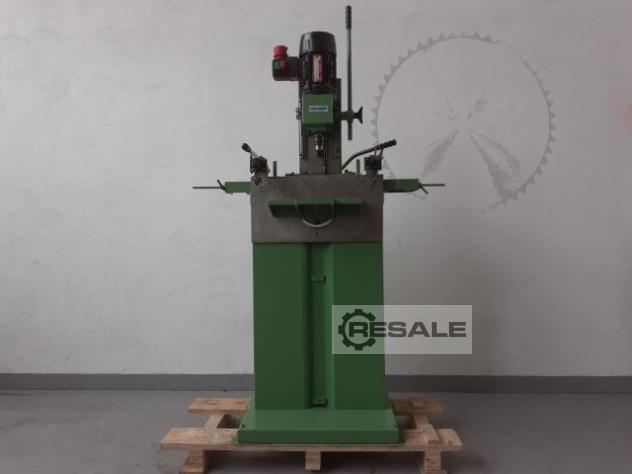

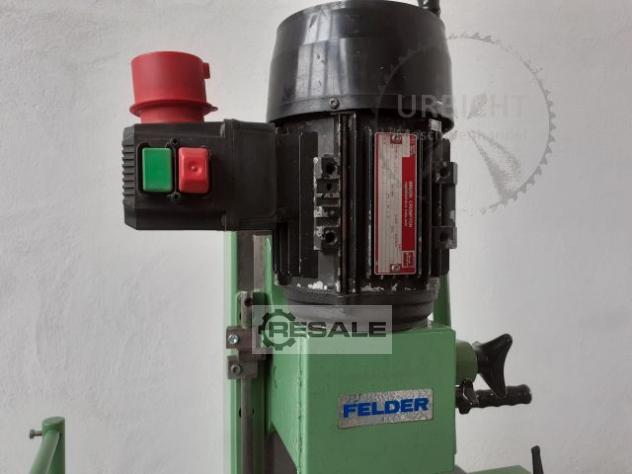

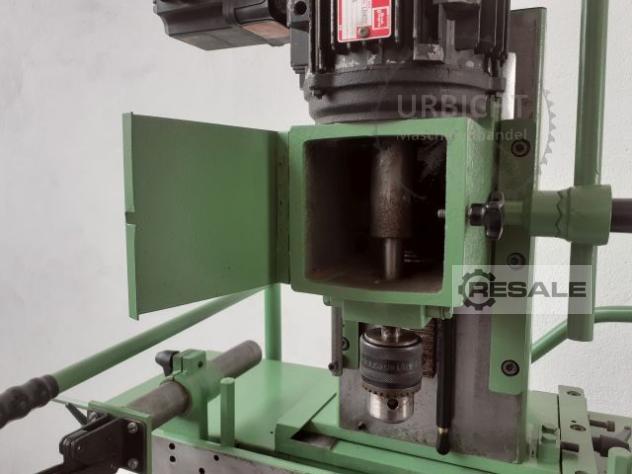

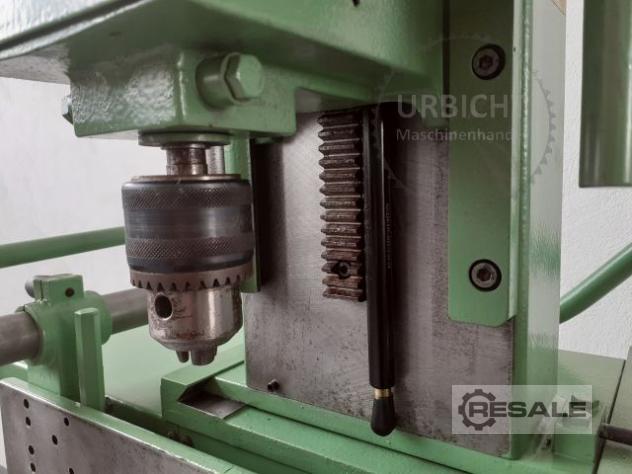

Felder Vertical Clamp (with mounted drill chuck) Technical details: - Table support dimensions: 400 x 160 mm - Table support can be rotated on both sides up to 45° (with degree scale) - Table height: can be changed from 960 to 1,010 mm (screw connection) - Horizontal right-left adjustment range: 230 mm (115 mm in one direction) - Adjustment range of the unit horizontally forward-backward: 110 mm - Max. drilling depth: 100 mm - Supplied with mounted drill chuck 1/8 - 5/8 F3 - 16 LB 16 S3 - Max. chuck mount: 16 mm - Max. spindle diameter (tool holder): 19 mm - 2 x quick-release device on the machine body Engine data: - Voltage: 380 V - Current: 4.5 A - Frequency: 50 Hz - Power: 1.1 kW - Speed: 2,850 rpm Dimensions (DxWxH): 700 x 1,250 x 1,900 mm Transport dimensions (DxWxH): 700 x 1,250 x 2,100 mm The machine has been completely cleaned, overhauled and checked ...
We can offer you following machine (Subject to being unsold ) Terms of delivery/payment: payable before/ by order . All information and offers are subject to our general terms & conditions If there are further questions, don't hesitate to contact us. sliding table saw FORMAT4 Kappa 400 x-motion S/n 605.09.011.16 Year of construction 2016 Manufacturer: Felder Austria Cutting length 2800mm X-Roll sliding table ( 10 years warranty ) Cutting width 1200mm Boom table 1500 mm with cut-to-length fence 3200 mm Cut-to-length fence 3200 mm, swivel 90°–45°, 2 stop jaws Control x-motion CNC engine control with LCD screen 5.7 (145 mm) in overhead control panel Positioning control for saw blade height Positioning control for saw blade angles Automatic cutting height correction when panning Circular saw blade speed indicator Positioning control for rip fence wi ...
I am selling a Combined Machine Sliding Table Saw with Scoring + Milling Machine Manufacturer: FELDER Austria Model: KF700S. Built in 2011. Cutting length 3200mm. Saw blade and milling swivel 0-45° manual Saw blade and milling digital height adjustment Digital display of rip fence and working heights Insertion of the main saw blade and scoring machine from the aluminium format table. Main motor sliding table saw 3.0 KW / (3200/4500/5800 rpm adjustable) Scoring motor sliding table saw 0.75 KW Main motor milling machine 5.5 kW Tools, options, and accessories on the pictures included in the price. Very good condition. Available soon. Incl. full documentation and CE certificate.
Gebr. Drilling and mortising machine Hollow Mortizing Machine FIELDS MCD Motor power: 1.1 kW (380V) max. chisel insert: 25 mm Table length adjustment: 240 mm Table depth adjustment: 76 mm Vertical stroke: 175 max. wood height: 1,000 mm Drill Center Distance: 82 max. wood width: 160 mm Weight: 185 kg Information according to manufacturer incl. 2 chiseling tools Copy of instruction manual available Good original condition! From private workshop closure Sold in ACTUAL condition and unrefurbished from carpentry dissolution. Fixed price.
Classifieds Home & Garden DIY Your Ad Visits: 17 Wishlist: 0 Ends on: 26.05.2024 Edit Reserve Lengthen Delete Print a sales sign Highlight Ad Duration Price Push up Get new attention! Your ad will look like a new ad. one-time 3,95 € Highlight: Up to 2x more visibility! Your ad will be highlighted in color. 7 days 4,95 € Up to 5x more visibility! Your ad will be pushed up every day for a week. 7 days € 16.95 Up to 10x more visibility! Your ad is at the top of the list! 7 days € 19.95 Gallery: Up to 15x more visibility! Your ad will appear on the home page! 10 days € 49.95 All prices incl. VAT. Swivel Spindle Milling Machine FELDER F38 Rotary Milling Machine Table Milling Machine Feed in Langenbach Swivel Spindle Milling Machine FELDER F38 Swivel Milling Machine Table Milling Machine Feed €5,652 Pick-up only 85416 Bavaria ...
Code: 0236 Brand: FELDER Model: FS 722 - CE Standard Belt sanding machine with goose neck for wood, aluminium, metals and various materials - CE Standard Technical data: Work table mm 2200 x 800 Belt length mm 5750 Belt width mm 150 Motor power 4 Kw High precision sanding pad Suction mouth diameter mm 160 Overall dimensions mm 2600 x 990 x 1300 h Weight kg 700
Inv. Num. : 7179 Type: BS 740 RS3 Producer: FELDER Created: 2021 Parameters: Machine width: 860 mm Machine length: 1100 mm Machine weight: 500 kg Cutting height: 450 mm Saw blade length: 5365 mm Equipment: Automatic workpiece feeding
Circular Saw Milling Machine Manufacturer: Felder Type: KF 700S Year of construction: 2020 Cutting length: 2500 - 3200 mm Cutting width: 800 - 1250 mm Cutting height: 104 mm Router table opening: 230 mm Milling fence for Wekzkeug: max. 230 mm diameter
Sliding table saw Felder K 540 S built in 2020 Format carriage length 2500 mm Engine/voltage 5.5 kW / 7.5 hp / 400 V Scoring Ø 120 mm X-Roll Sliding Carriage Cutting width 900 mm electromotive height adjustment Saw blade swivel 45° manual adjustment Saw blade Ø 315 mm Engine/voltage 5.5 kW / 7.5 hp / 400 V Speed 4000 rpm Cutting height max.110 mm Weight approx. 700 kg
Fields Grinding hedgehogs D= 60mm h= 110mm G&-5042-M31MC VAT not deductible! Special price: net 70,-€
Projection: 620 mm Table size: 600 x 885 mm Table swivelling: +/- 10 - 15° Cutting width max.: 620 mm Cutting height max.: 400 mm Saw blade length: 4730 - 4800mm Impeller Ø: 640 mm Impeller speed: 810 rpm Drive motor: 400 V, 2.2 kW Space requirements: 1750 x 1200 x 2150 mm Weight: 350 kg
Withdrawal system 2 bags EXHIBIT WITHDRAWAL SYSTEM N E U! AF-22 dust extraction system Bj.2007 place need 1300x580x2150mm engine strength 400 V 2.2 kW 3 HP filings bag contents of 2 x 200 l Max Volumenstrom of 3100 m?h Max Unterdruck of 2510 Pa in-patient OR MOBILE box of building blocks system suction connection: 160 mms or 120 / 80 mms standard dust filter or polyester fleece cartridge filter AF-22 In-patient 401-257 AF-22 Mobile 401-256 PICTURE WITH DRIVING EQUIPMENT!
: 0,4 - 3 mm Workingpiece thickness from to: 10 - 45 mm Total length: 3.200 mm Feed speed: 8 m/min. total power requirement: 5,5 kw Weight: 450 kg Premilling unit: Ja : Ja Flush/radius/chamfer milling units: Ja Flat scraper: Ja Number of working hours: ca. 1.288 h The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: 0,4 -3 mm Workingpiece thickness from to: 10 - 45 mm Total length: 3.200 mm total power requirement: 5,5 kw Weight: 450 kg feed: 8 m/min Premilling unit: Ja : Ja Flush/radius/chamfer milling units: Ja Flat scraper: Ja Number of working hours: ca. 439 h The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: 0,4 - 3 mm Workingpiece thickness from to: 10 - 45 mm Total length: 3.200 mm Feed speed: 8 m/min. total power requirement: 5,5 kw Weight: 450 kg Premilling unit: Ja : Ja Flush/radius/chamfer milling units: Ja : Ja Flat scraper: Ja Number of working hours: ca. 903 h The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
This FELDER MG580 edgebander was manufactured in 2010. Ideal for precise edge banding applications, it represents a reliable choice for enhancing your woodworking operations. Contact us for more information.
This 5-axis FELDER Format 4 Profit H150 22.32 T was manufactured in 2022. It features a 5-axis main spindle with 12 kW power, a 17-fold linear changer, and an 18-position plate changer. The machine includes a comprehensive control system with F4Operate, F4Toolbox, F4Create, and 3D nesting software F4Nest. It also boasts a complete compressed air system and automatic central lubrication. The FELDER FORMAT4 Profit H150 22.32 T machine we have for sale. Contact us for further details regarding this CNC Wood Machining Centre.
Working width: 510 mm Working height: 254 mm Motor output: 7,3 kW Length of the planing table: 2250 mm Number of knives: St. Feed speed: 4-16 m/min. Dust suction hood: mm Dimensions (L/W/H): mm machine weight ab.: kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Manufacturer: Felder, Type: MG 580-1, Year: 2012, Control: yes, Min-max edge material mm: 0,4-5, Work piece width min-max mm: min. 70, Min.-max. workpiece length in mm: min. 140, Min.-max. workpiece height in mm: 8-60, Min-max feed m/min: 11, Premilling: yes, Mitre stations: yes, Weight approx. kg: 990, Year :2012
Manufacturer: Felder Model: EdgeBander Tempora 45.03LX Year of Manufacture: 2019 Condition: Used/Factory Refurbished It has 200,000 edge meters from years 2019-2023 Find more here - / Contact us at -
Sawblade tiltable: 45 ° Length of the rolling table: 2.800 mm cutting width: 1.250 mm Motor output: 7,3 kW Cutting height: 140 mm Speed: 4.000 U/min. : Ja : Ja The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Sawblade tiltable: 45 ° Length of the rolling table: 2800 mm cutting width: 1.300 mm Motor output: 5,5 kW Cutting height: ca. 204 mm Saw blade diameter: 550 mm Speed: 2000-6000 U/min. weight of the machine ca.: ca. 1.000 kg : Ja : Elektrisch : Elektrisch : Elektrisch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Sawblade tiltable: 45 ° Length of the rolling table: 3200 mm cutting width: 1100 mm Motor output: 5,5 kW Cutting height: mm Cutting height at 45°: mm Saw blade diameter: 450 mm Speed: U/min. weight of the machine ca.: kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Working width: 510 mm Length of the planing table: 2.250 mm Number of knives: 4 St. Motor output: 5,5 kW Dimensions (L/W/H): 2.427 x 1.340 x 890 mm : Ja weight: 750 kg Dust suction hood: 140 mm : Keilleistenmesser The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Band width: 150mm; Table size: approx. 2800mm x 800mm; Suction port: 140mm; Motor power: 3kW; Machine length: approx. 3900mm; Machine width: 1200mm; Weight: 500kg;
