Machine made in Poland in the year 2014. Max working area: 2450 x 1450 x 900mm. Vacuum. Control Omron. Total power 105kW. Plastics suitable for processing: ABS, PMMA, PVC, Polystyrene, and many others. Very good condition, machine is under power on workplace. Currently the machine is used occasionally. Transport dimensions - two segments: 1. 3650 X 2100 X 3350mm. 2. 3900 X 2100 X 3350mm. Total weight: 8000kg.
Form dimensions X/Y: 475mm/250mm, max. material width: 495mm, max. infeed length: 280mm, max. negative draw depth: 100mm, max. roll diameter: 1200mm, max. material thickness: 2.3mm, max. cycle output: 48 cycles/min, forming output: approx. 6500 cups/min, machine dimensions X/Y/Z: approx. 5500mm/2200mm/2100mm, weight: approx. 2000kg. Documentation available. On-site inspection is possible.
An Illig thermoforming machine is available. Form dimensions X/Y: 500mm/380mm, max. film width: 540mm, draw depth range: -120mm/+120mm, max. feed length: 360mm, cycle rate: 30 cycles/min, punching area X/Y: 500mm/390mm, punching force: 50000daN, machine dimensions X/Y/Z: approx. 4500mm/2200mm/2200mm, weight: approx. 4500kg. Documentation available. On-site inspection is possible.

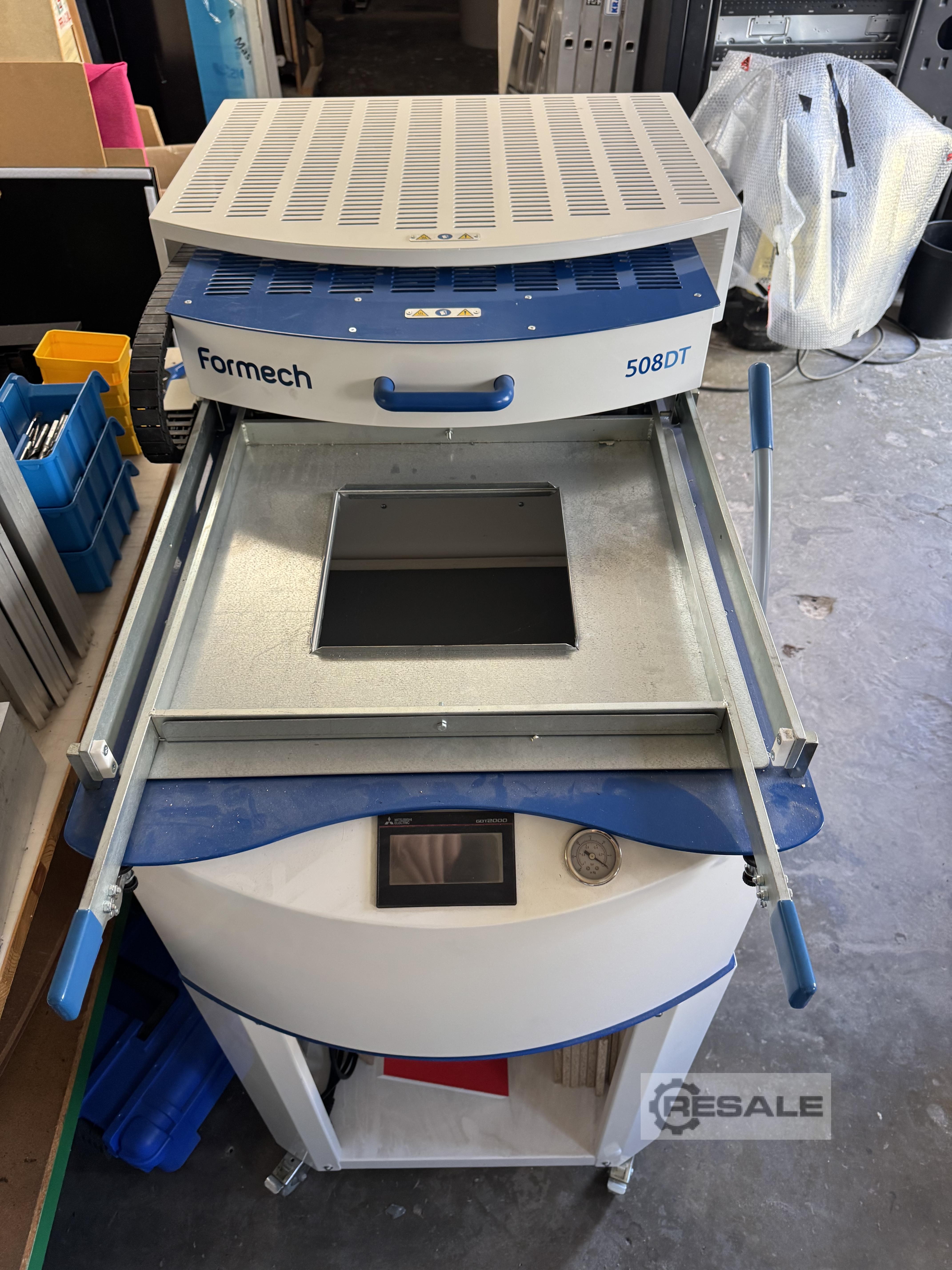

For sale is a professional thermoforming machine from the renowned manufacturer Formech, model 508DT, including a mobile base cabinet with storage space. ✅ Specifications: Model: Formech 508DT Heating: Digitally controlled, evenly distributed heating elements Operation: Touchscreen display (Mitsubishi) Vacuum: Integrated vacuum system Heating & vacuum time can be controlled via display Work surface: approx. 482 mm x 432 mm Condition: very well maintained, fully functional ✅ Particularities: Ideal for prototyping, packaging, thermoformed parts in small batches Easy to use – also suitable for beginners Mobile thanks to castors and very compact in design Very quiet and reliable in operation Scope of delivery: Formech 508DT Machine Original substructure with storage space Various residual materials to start right away Location: Nurember ...
AMUT - COMI FFG-760-ADV, Format area: mm. 750x550 (max. leaf width mm.900), Material: PET-PS-PP-PLA - XPS, Film thickness: mm. 0,2 - 2, Heaters: YES, Foil loading: automatic, Cycles/min: MAX AT EMPTY 60, ONE OWNER ONLY, Other details:, In production: yes, Can it be tested? yes, Availability to load it in a truck? Container?: price net of transport, machine loading and dismantling, Additional details:, 1.PRE-HEATING LEAF BLOWER ON SIDES FOR CHAINS, 2.ROBOT/MANIPULATOR AT END OF LINE WITH POSSIBILITY TO ROTATE FOR A/B TRAYS, 3.+ BASKET WITH BULKHEAD FOR CLASSIC EVACUATION, 4.LONG ROPE FOR EVAQUACING PRODUCTS, 5.CLOSING FORCE PRESS kN 300, 6.CLOSING FORCE CUTTING PRESS kN 600, 7.MAXIMUM LEAF WIDTH mm. 900, 8.MAXIMUM LEAF DIAMETER mm. 1200, 9.BOTH MACHINING OPERATIONS POSSIBLE (FORM AND DIE-CUT RESUMPTION / SIMULTANEOUS DIE-CUT FORM)
Manufactured by Marbach, 77 mm cut dia. 14-Cavity Inclusive of stacker Parts For PP, PS Good Production Condition. EXW our Warehouse Enger, Germany
Mold for Ø73 mm PP-Cups, 32 Cavities, Stacker Basket with Rods & Brushes & Rake, age May, 1997.
Age 2003 Consisting of :- Driven Infeed Pinch Rollers Main Motor 20 kW Blower Motor 2 kW Rotary Blade 6pcs Stationary Blade 4pcs Through-Put 300 KG/H Cutting Chamber 620 x 460 mm Hopper Opening 620 x 500 mm, With Blower Good Production Condition. EXW our Warehouse Enger, Germany
Age 2003 Consisting of :- Max. Infeed width 900 mm Throughput 500 Kg/ hr Main Motor 15kW Pendulum Roller for infeed tension control Dual Roll Ingfeed, Motor 0.75kW Regrind Outfeed Blower type F-25 , Motor 2.2 kW No. of Rotor Knives 3 No. of Stator Knives 3 Sound Proof Housing
Age 2007, Consisting of :-, Siemens S7 PLC Controls Indramat Servomotor Siemens SINAMICS Motor Drive Rittal Control Cabinet Cooling Unit with Temperature Display With Snap -Stacking Brush Stacking Cascade Stacking The Counter/ Stacker is in v. good production, This ILLIG SZS73 was working Inline with a Generation 3 ILLIG RDM70K Line., Effective Working Area: 740 x 340 mm, Max. Part Height: 150 mm, Formed Part Stacking Length: 800 mm
Connected load: 104kVA, operational hours counter: 18,775h, the chain of the chain rail system was replaced in 2018.
Type Of Laminator: Solventless // Working Width: 1100
Material : PP, PS, APET, CPET, PLA, OPS, EPS, PVC // Forming Area (Vxh): 780x570
Material : PET-PS-PP-PLA - XPS // Forming Area (Vxh): 750x550
Material : PS, OPS, EPS, PP, PE, PVC, PET, PLA // Forming Area (Vxh): 760x540
4 Hot Wire Folding Heads Useful length 2000 mm PMMA and methacrylate bending with thicknesses from 1 mm to 20 mm Wire gap adjustment 3 wires top/bottom per group
Vacuum forming machine for the production of PS, PVC, PET, blister, tray packaging. The thermoformer works separately forming and punching. The machine is in very good condition and was only used as a back-up machine for 16 years. It has been cleaned and extensively tested. so that it is immediately ready for use. Currently, a tool for trays in the size 125x176 mm is installed (forming tool 3-fold, negative, top), tool size approx. 188x408mm. We are also happy to put you in touch with a very good toolmaker who can produce format tools according to your wishes. Equipment of the machine: Moulding area 350 x 500 mm Film width max. 540 mm Moulded part height max. 100 mm positive - Top heating longitudinal row control - Underheating longitudinal row control - Strip steel cut heating - Forming station pneumatic, undertable as cooling plate - Needle chain transport with servo ...
M. No.: 322 Max. film width 700-800 mm Equipment / Additional information: -GREINER STACKING / Transfer device R3 (Ref. No.: 95002.24) // M. No.: 00020 // Age: 1998 Heating from above and below Material PS and PP were processed 450 Ps // 350 Pp The following tools were used on the machine: 8-way WZ-Ø95 and 15-way WZ-Ø73 and 15-way WZ-Ø86 Packaging was produced especially for the dairy industry. The cycles are 18-25 strokes - depending on the cup weight.
Laminating machine Printworld Bevel for films CE Type: Dry-Tron FK 600 Year of construction 2023 Laminating system for covering panel surfaces with protective film (laminating) Working width max. 650 mm Conveyor belt width 650 mm Transport speed infinitely variable from 5.0 – 50.0 m/min. Height adjustment of the laminating roller up to 180 mm 2 film roll magazines for film roll core diameter 76 mm, Film roll core outer diameter 250 mm Film roll weight approx. 25 kg Total machine length approx. 6000 mm Inlet length 2370 mm Spout length 3000 mm Connection with Schuko plug with 5 m cable, max. current consumption 4 A The lamination process is carried out by a non-driven, rubberized laminating roller. The feed is carried out by a Supergrip conveyor belt.
# HIDROBRASIL 50 T Heating Press with Sliding Table (600x600mm) If the press does not exactly meet your requirements, please request an individual offer exactly according to your wishes with one click: HIDROBRASIL manufactures presses exactly according to your wishes at surprisingly low prices! 50 T top piston heating press, in double column brackets suitable for continuous shift operation, with these basic data: - With a heating level - Idle speed up to 10 mm/sec (adjustable via rotary control) - Opening speed up to 40 mm/sec - Starting pressing speed 8 mm/sec - Table size/heating plate size 522 mm deep, x522mm wide - Plunger size/heating plate size 498 mm deep, x498mm wide - 2 heating plates, electrically heated, up to 200 degrees - Oil temperature monitoring - Circulating oil cooling on the hydraulics - Pressure Holding Valve 0 to 3600 sec - Pressure adjustment from ...
Thermoforming machine Illig RDM-50 K • Year of built 1994 • Suitable for processing PS and PP • Forming area 500 x 280 mm • Max material width 525 mm • 200 mm air cylinder for per-stretcher • Servo driven main engine and material transport Specifications • 7 upper heating zones • 7 lower heating zones • Tool temperature control • Separate down holder cooling • Material sag control Additional equipment • Foil unwinding station • Endless stacking unit Good condition, available immediately
ILLIG UA 200 G thermoforming machine was built in 1990 in Germany. This highly efficient machine is used in the production of high-quality plastic parts, such as tubs, containers and car parts. As the ILLIG thermoforming line is equipped with two material feeders, the thermoforming process is fully automatic and also allows machining in sheets or from a roll. Technical data of the ILLIG UA 200 G thermoforming machine - maximum mould dimensions (L x W): 1960 x 980 mm - minimum mould dimensions (L x W): 860 x 720 mm - total heating capacity: 87.2 kW - maximum operating pressure: 10 bar - material feeder (2 pcs.) - power supply: 3x 380 V; 50 Hz
LEISTER TRIAC heat gun, heat gun. Embossing on the device: K.LEISTER TYPE TRIAC CH-KÄGISWIL Motor 60W 220V ~6.6A Max 1460W 12820 Made in Switzerland GS S+ Used, very well preserved with signs of wear. Includes accessories, as pictured. Two-stage Cable length 3m Machine for processing and welding plastic geomembranes, shrinking plastics, films and other applications.
The ENR series are air-cooled chillers for industrial use for outdoor and indoor installation. The ENR 016 has axial fans, scroll compressors, internal P3 pump, condensers with finned aluminum fins and self-cleaning coaxial evaporator for maximum operational safety. Cooling capacity 13.5 Kw We have a lot of chillers available directly from stock used and new. contact us for a non-binding offer.
Illig RDM 37/10 Thermoforming Line - Made in Germany - Year of construction: 1986 - Under & Top Heating - DIV - Moulding area: 475 x 250 mm max. - Film width: 495mm min / 150mm max. - Refurbished: new bearings, new bolts, new bushings & electronics, etc. - Fully functional - with many accessories - several different forming tools Produce cups, bowls and similar products with the ILLIG RDM37/10 pneumatic forming machine. The thermoformer with forming/stamping technology works reliably with precision mechanical drives and delivers high molded part quality and performance.
M. No.: 322 // Counter: 80188 hours Max. film width 700-800 mm Equipment / Additional information: The machine is constructed as follows: -Greiner stacking / Transfer device R3 (No.:00020) // Age: 1998 -ILLIG mill RS75B // Age: 1999 Control cabinets, etc. Heating from above and below Material PS and PP were processed 450 Ps // 350 Pp
Technical specifications: Rated power, kW: 11,3 Mold area, mm: 475 x 250 Max. film width, mm: 495 Min. film width, mm: 150 Max. feed length, mm: 280 Min. feed length, mm: 50 Max. drawing depth/negative, mm: 100 Number of cycles/min.-max.: 48 Consumption of air/cycle at 6 bar: 100 Nl (net-pressurized air) Heat energy to be dissipated: with top heating ca. 10 260 KJ/h with top and bottom heating ca.: 17 715 KJ/h Special equipment: Hollow floor facility available Control cabinet: included
THERMO FORMING MACHINE ILLIG RDM K 50 WITH INLINE EXTRUDER (COMPLETE LINE) M. No.: 322 Counter: 80188 hours // Power: 800-1000 kg/h Max. film width 700-800 mm Equipment / Additional information: The machine is constructed as follows: -Kuhne Extruder KF70E & Co. Extruders K45-24D -Colotronic dosing unit CSK30 with 4 components -Kuhne smooth and cooling rolls (calendering) / GA4/900; puller: BA2-1/900 -Thermoforming machine ILLIG RDM K 50 -Greiner stacking / Transfer device R3 (No.:00020) // Age: 1998 -Illig mill RS75B // Age: 1999 Fully existing infrastructure; control cabinets, pumps, etc. Heating from above and below Material PS and PP were processed
