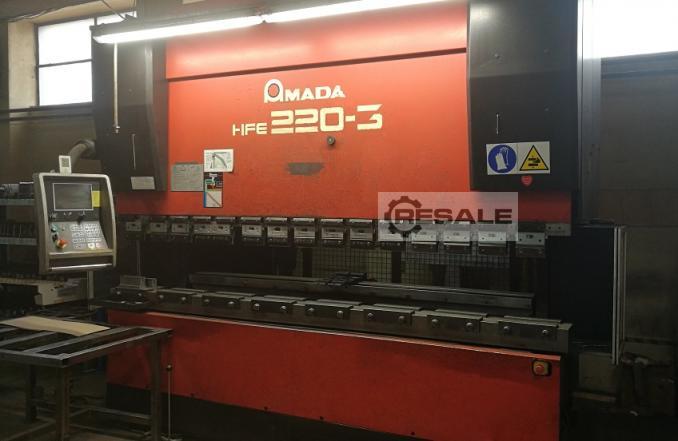

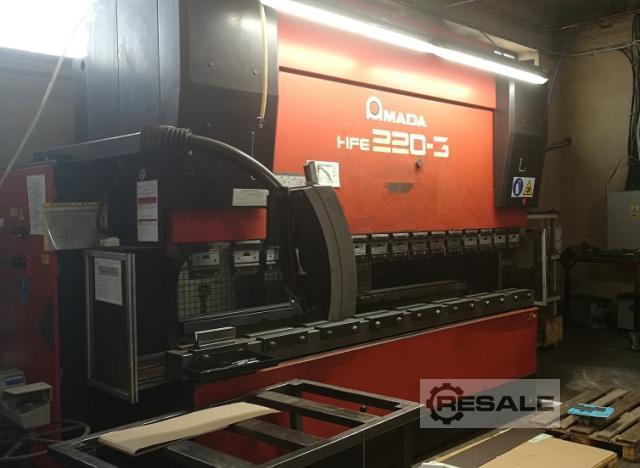

Press brake AMADA HFE 220-3
Number of controlled axes / CNC controlled axis: 7
Condition good, ready to use, visit under electricity possible /
Condition: good, in use, can be seen under power in Poland
Pressure / Pressure: 2200 kN / 220 ton
Bending length / working range: 3100 mm
Distance between stands / distance between columns: 2700 mm
Stroke / stroke: 200 mm
Delivery speed / downwards speed: 1-100 mm/s
Working speed / working speed: 1-10 mm/s
Retraction speed / backwards speed: 1-100 mm/s
Dimensions Machine / Machine's dimensions: 4.3 x 2.3 x 3.1 m
Weight / Weight: 14 ton

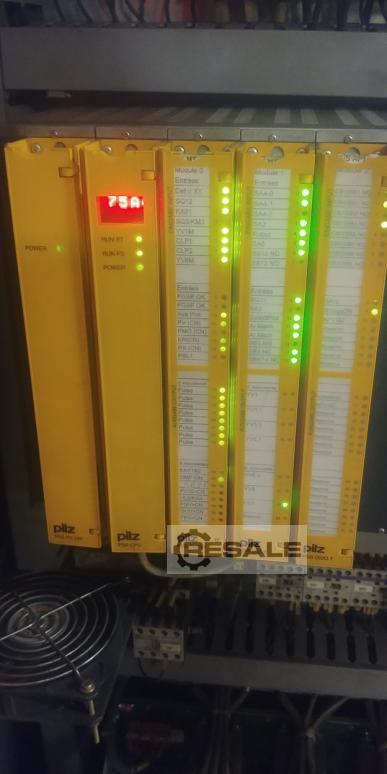

Machine has: new safety cards from Pilz, new tool clips, new keyboard
of control, new stop finger

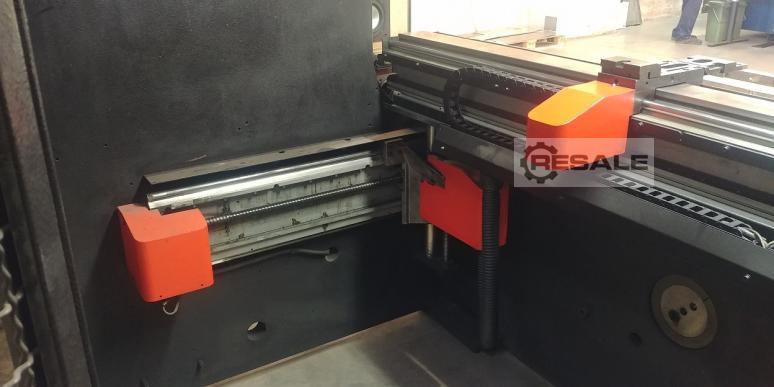

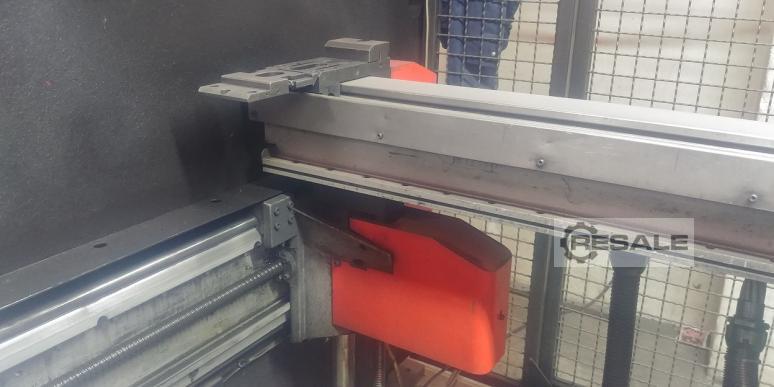

Machine has: new safety cards by Pilz, new tool clamps, new CNC cover,
new back gauge fingers
Poland
