Conveying belts PAAL KEM 1500

machines and plants for waste disposal and recycling / other machinery for waste disposal and recycling / Conveying belts

Manufacturer: PAAL

Model:KEM 1500

Type of machine: Conveying belts

item-No.: 162702546

Quantity: 0

Date: 06.05.2024

Year of manufacture: 2008

Location: Land-de Germany 49324 Melle

Price:

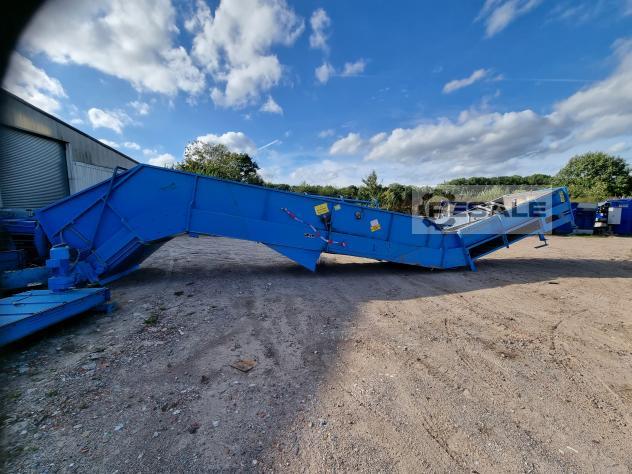

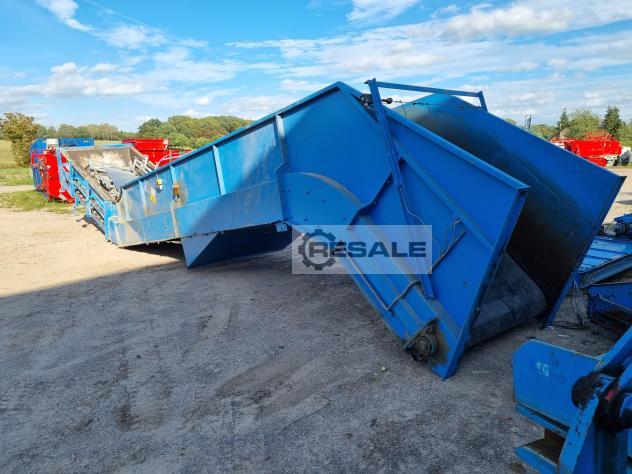

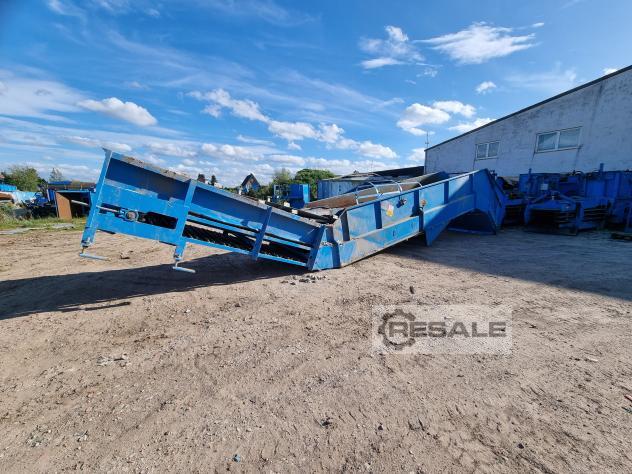

Used Chain Conveyor Belt
Manufacturer: PAAL
Type: KEM 1500
Year of construction: 2008

specifications:

Conveyor width: approx. 1,500 mm

Wheelbase:approx. 9,625 mm

Strip course: approx. 2,935 mm horizontally underfloor,

then rising to a length of approx. 4,500 mm below 28°,

sloping below 10° on the remaining length and conveying into the press

Conveyor belt speed: 0.27 m/sec

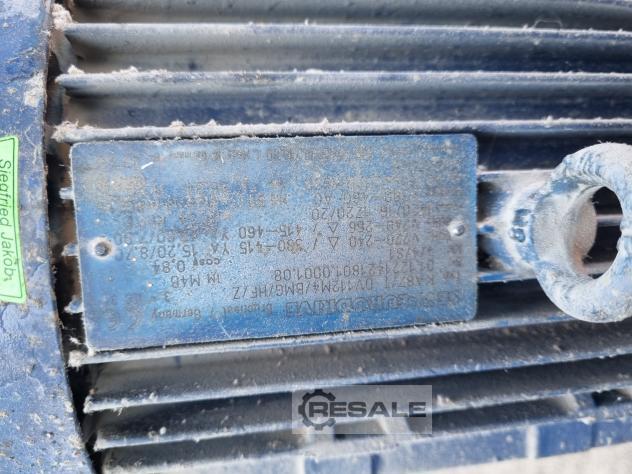

Conveyor belt drive power: 4.0 kW

Sidewall heights
- in the horizontal part: 527 mm
- in the climbing section: 777 mm

Operating voltage: 3 x 400 VAC / 50 Hz / N / PE

as far as possible pre-assembled, consisting of:

- Strip scaffolding in solidly welded section steel and sheet steel edge construction,
- additional sliding guides underneath the belt support profiles in the horizontal and climbing sections to support heavy loads,
- Conveyor belt (quality: EP 200/2 2:1) with 20 mm high T-studs on the sides for belt string sealing,
- Belt routing in a neutral zone to avoid strain stresses,

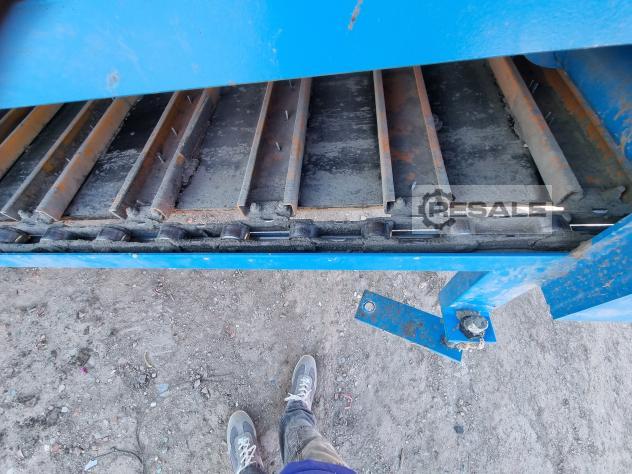

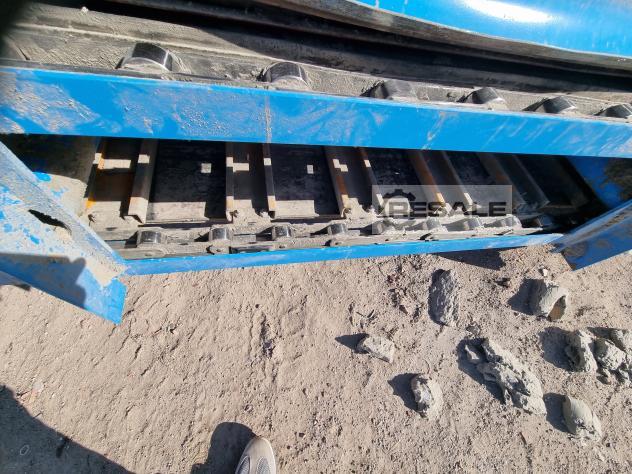

- Chain type M-80 with case-hardened bushings, bolts and rollers,
- Chain plates with reinforced support brackets and partly with replaceable, lateral plastic chain protectors,
- Chain strand breaking load 8 t, (16 t static load with a nominal width of 1.2 m to approx. 700 kg per m belt length),

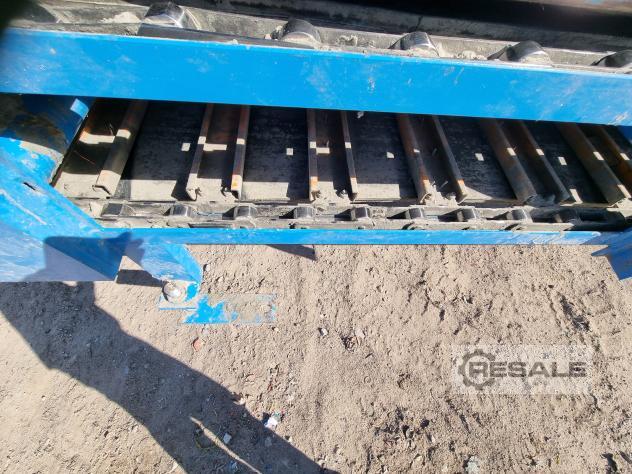

- Belt support profiles at a distance of 250 mm torsionally rigid with 4 screws each attached to the chain plates without belt intermediate layer,
- Driver above the belt at a distance of 500 mm, consisting of 40 mm high angle steel,

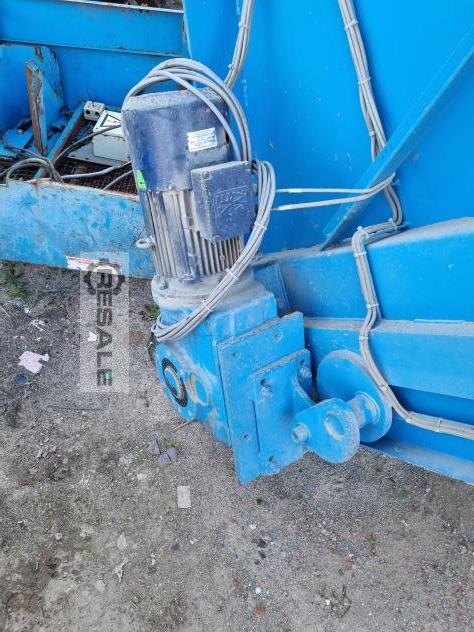

- Bevel gear drive motor with integrated brake,
- drip oiler for uniform lubrication of the chains,
- Conveyor belt supports made of section steel construction with height adjustment,
- Emergency stop switch on the side of the conveyor belt and cable pull emergency stop above the conveyor belt in standard design,
- Start/stop switch on both sides of the rising conveyor belt frame,
- Synthetic resin top coat in light blue according to RAL 5012
